MX 450 (881021) - Murray 16" Walk-Behind Mower, Canada (2010) Handle Assembly Parts Diagram

16" Walk-Behind Mower, Canada

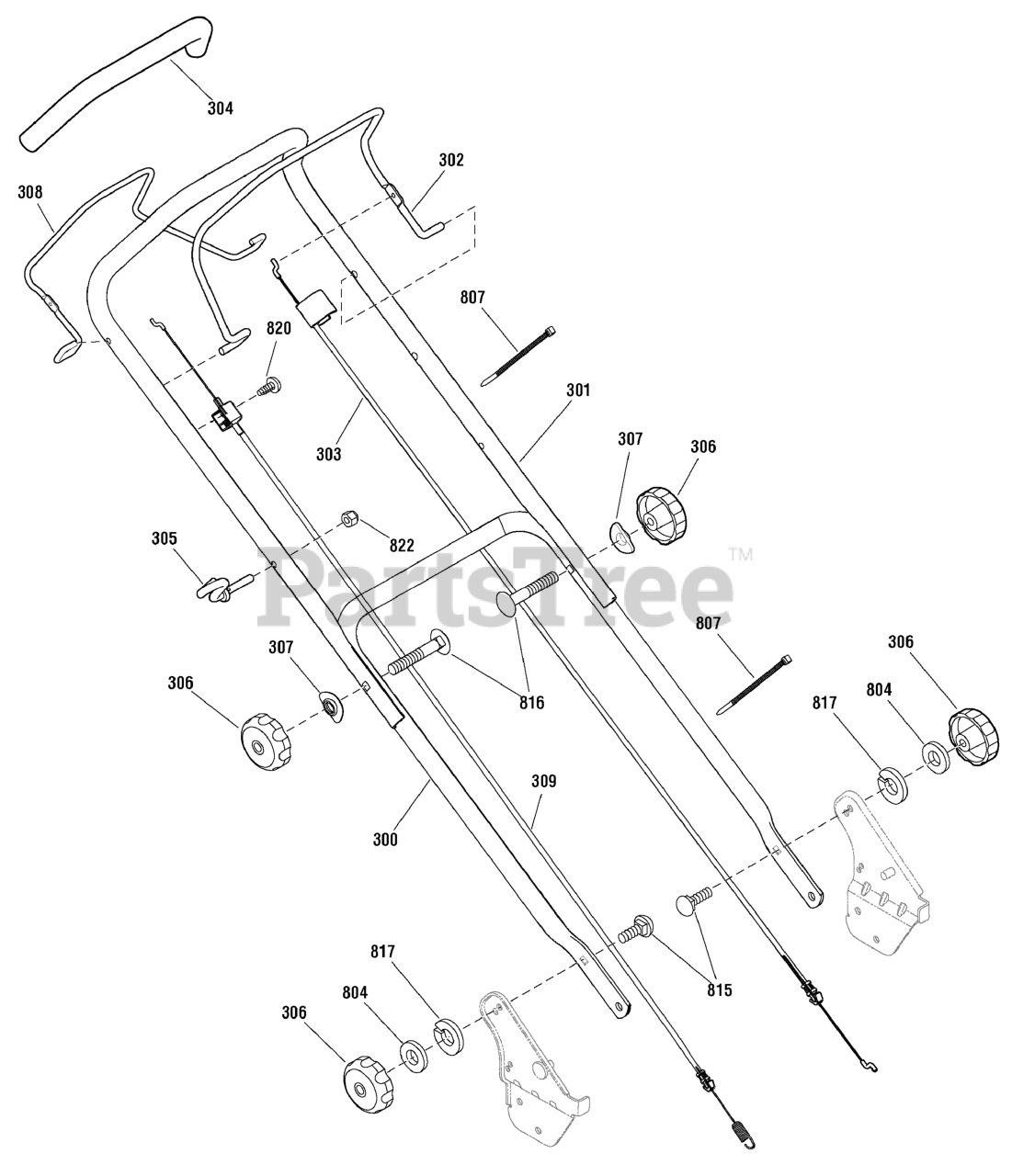

Handle Assembly Parts Diagram

  • Title

300

Murray 880608AYP

HANDLE, Lower

$52.99

$

Usually ships in 2-12 days

0

301

Murray 880470AYP

HANDLE, Upper

$85.99

$

Usually ships in 2-12 days

0

302

Murray 880637BNYP

LEVER, Engine Stop

Note: (Red)

$20.99

$

Usually ships in 2-12 days

0

302

Murray 880637ZYP

LEVER, Engine Stop

Note: (Black)

$21.99

$

Usually ships in 2-12 days

0

303

Murray 880279YP

CABLE, Engine Stop

$18.99

$

In Stock, only 1 left!

0

304

Murray 880729YP

TUBING, Foam

$13.99

$

Usually ships in 2-12 days

0

305

Murray 672510MA

GUIDE, Rope, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

306

Murray 881056YP

KNOB, 5/16-18

Note: (Red)

$5.49

$

Usually ships in 2-12 days

0

307

Murray 880615YP

WASHER, Formed

$4.99

$

Usually ships in 2-12 days

0

308

Murray 881060BNYP

LEVER, Drive

Note: (Red)

$28.99

$

Usually ships in 2-12 days

0

308

Murray 881060ZYP

LEVER, Drive

Note: (Black)

$28.99

$

Usually ships in 2-12 days

0

309

Murray 880297YP

CABLE ASSEMBLY, Drive

$32.99

$

Usually ships in 2-12 days

0

804

Murray 880607YP

WASHER, 5/8

$3.99

$

Usually ships in 2-12 days

0

807

Murray 880029YP

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

815

Murray 880576YP

BOLT, Carriage, 5/16-18 x 1-1/8

$3.49

$

Usually ships in 2-12 days

0

816

Murray 002X77MA

BOLT, Carriage, 5/16-18 x 2

$3.99

$

In Stock, only 2 left!

0

817

Murray 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

820

Murray 26X256MA

SCREW, Tap, #10 x 1-1/4

$

$

Not available

822

Murray 15X116MA

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
