MX 18500 E (1696367-00) - Murray 18" Walk-Behind Mower (2013) Handles Group (1696367) Parts Diagram

18" Walk-Behind Mower

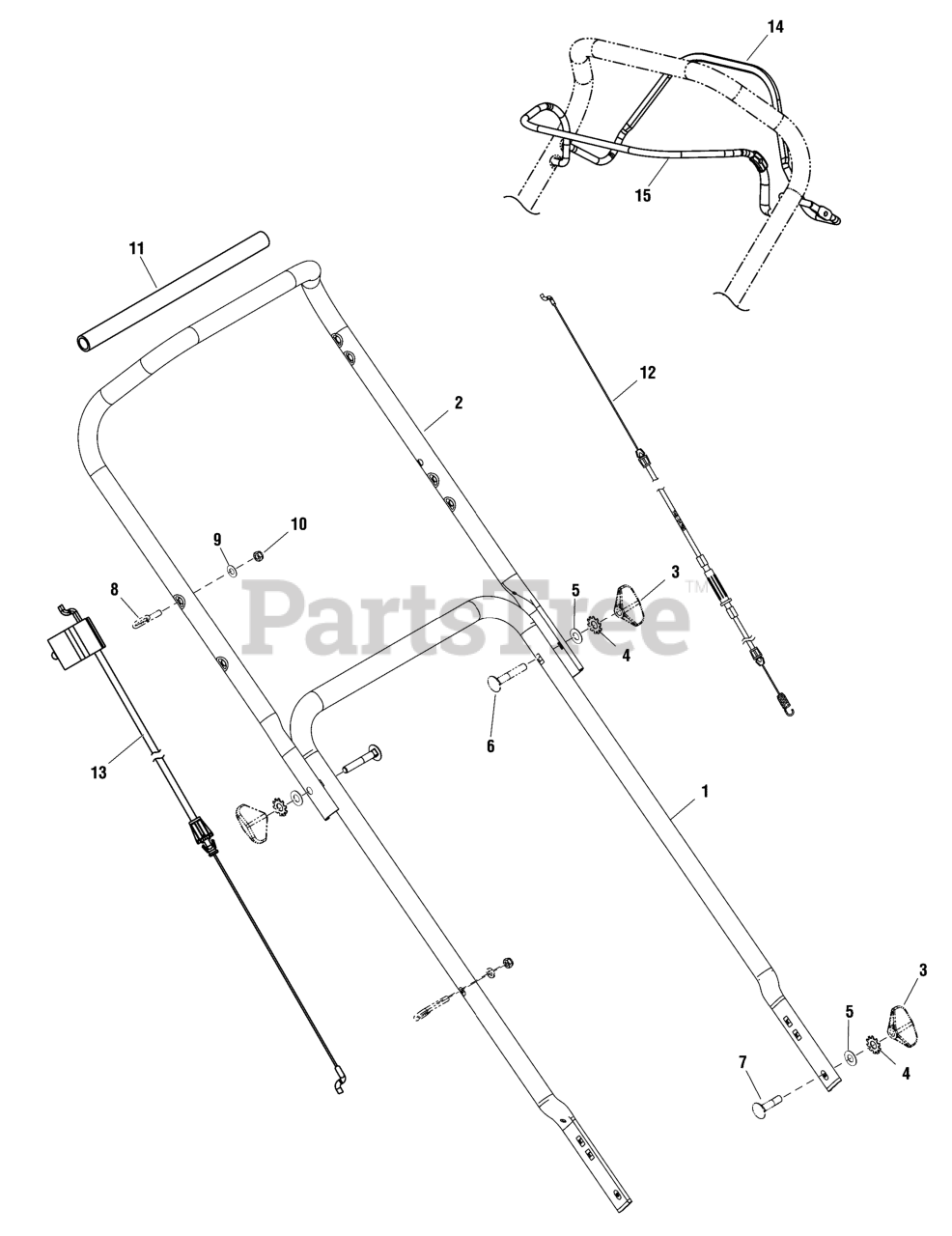

Handles Group (1696367) Parts Diagram

  • Title
1

Murray 703739

HANDLE, Lower

$

$

Currently unavailable

2

Murray 703743

HANDLE, Upper

$

$

Currently unavailable

3

Murray 703646

NUT, Wing, M8 x 1.25

$

$

Currently unavailable

4

Murray 703782

WASHER, B8.4

$

$

Currently unavailable

5

Murray 703783

WASHER, Flat, A8.4

$

$

Currently unavailable

6

Murray 703628

SCREW, M8 x 50

$

$

Currently unavailable

7

Murray 703623

SCREW, M8 x 25

$

$

Currently unavailable

8

Murray 703768

GUIDE, Starter Rope, M6

$

$

Currently unavailable

9

Murray 703781

WASHER, A6.4 DIN 125

$

$

Currently unavailable

10

Murray 67885GS

NUT, Hex Nylock, M6-1

$6.99

$

In Stock, only 1 left!

0

11

Murray 703647

TUBING, Foam

$

$

Currently unavailable

12

Murray 703725

CABLE, Drive Control

$

$

Currently unavailable

13

Murray 703726

CABLE, Engine Brake, 42.10

$

$

Currently unavailable

14

Murray 703733

LEVER, Drive

$

$

Currently unavailable

15

Murray 703734

LEVER, Engine Stop

$

$

Currently unavailable
