MX 18500 E (1696367-00) - Murray 18" Walk-Behind Mower (2013) Deck Group (1696367) Parts Diagram

18" Walk-Behind Mower

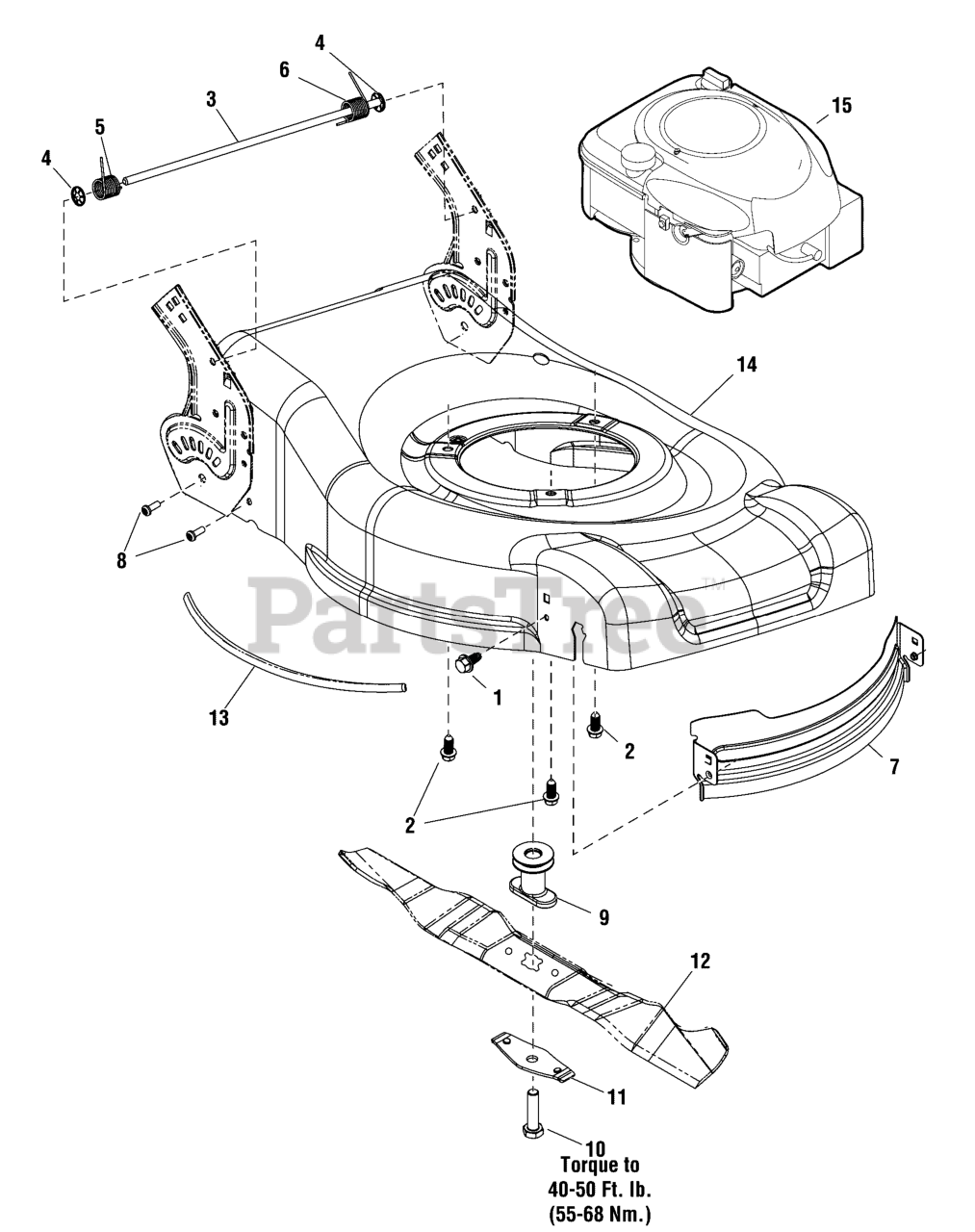

Deck Group (1696367) Parts Diagram

  • Title

1

Murray 703619

SCREW, M6X1X12

$

$

Currently unavailable

2

Murray 703625

SCREW, HXLWSH,TT,SEMS,3/8-16X1

$

$

Currently unavailable

3

Murray 703630

ROD, Rear Door

$

$

Currently unavailable

4

Murray 703649

RETAINER

$

$

Currently unavailable

5

Murray 703701

SPRING, Torsion Rear Door, Right

$

$

Currently unavailable

6

Murray 703702

SPRING, Torsion Rear Door, Left

$

$

Currently unavailable

7

Murray 703779

BAFFLE, Front

$

$

Currently unavailable

8

Murray 703622

SCREW, M6 x 16

$

$

Currently unavailable

9

Murray 703618

BLADE ADAPTER ASSEMBLY

$

$

Currently unavailable

10

Murray 01X142MA

SCREW, 3/8-24X1.50

$8.49

$

In Stock, only 3 left!

0

11

Murray 703520

BLADE WASHER

$11.99

$

In Stock, only 4 left!

0

12

Murray 703718

BLADE, 46cm

$

$

Currently unavailable

13

Murray 703707

SIDE GUARD, 50cm

$

$

Currently unavailable

14

Murray 703776

MOWER HOUSING, Black

$

$

Currently unavailable

15

Murray 09P602-0004-H1

* ENGINE, Briggs & Stratton 500 Series

Note: (Engine Model: 09P602-0004-H1)

$

$

Currently unavailable
