MV18-58551 - Kohler Magnum Engine, Made for Ransomes, 18hp, 13.4kW Crankcase (TP-2305-B) Rev 10/13/2006 Parts Diagram

Magnum Engine, Made for Ransomes, 18hp, 13.4kW

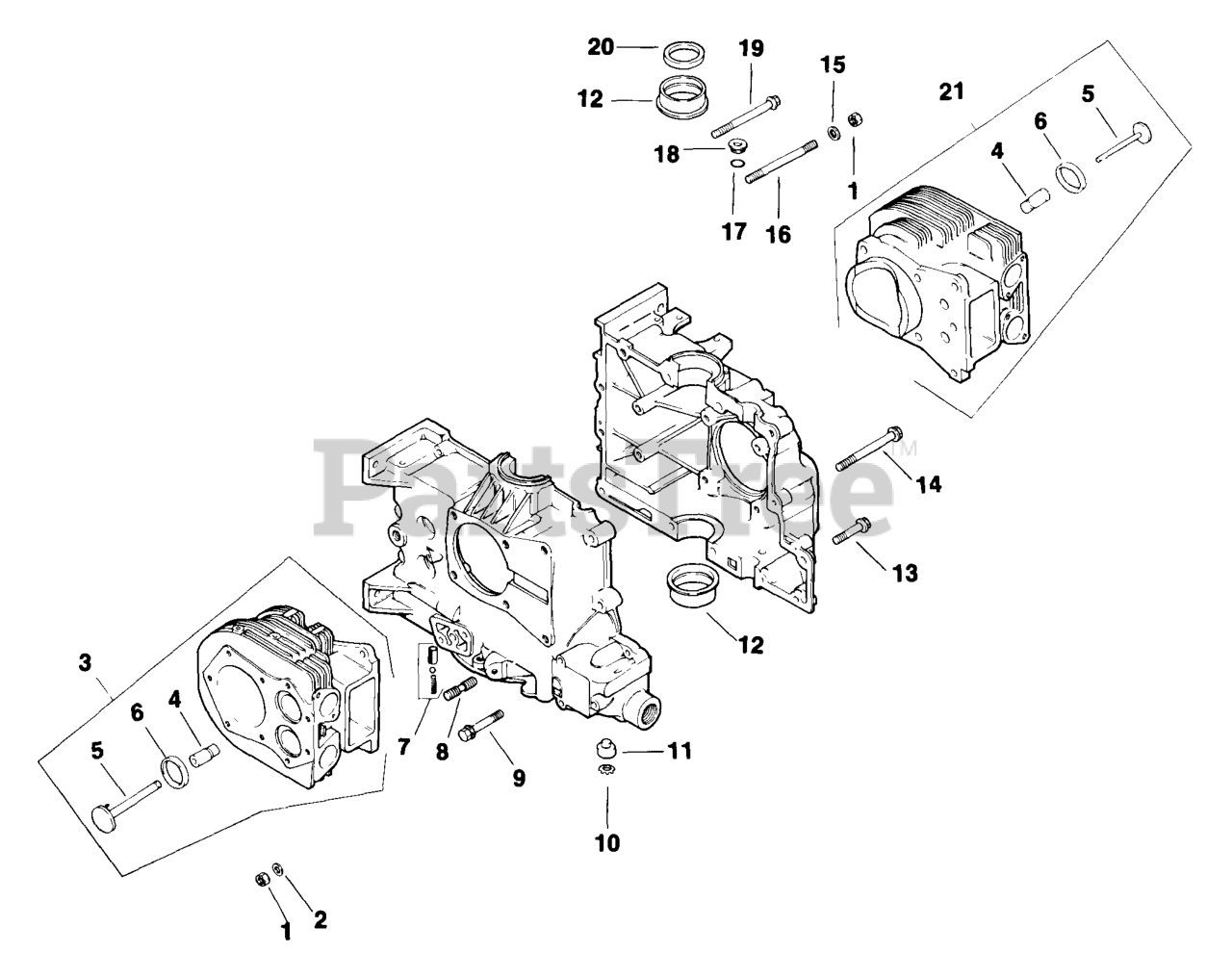

Crankcase (TP-2305-B) Rev 10/13/2006 Parts Diagram

  • Title

1

Kohler X-82-2-S

NUT, 5/16-18 GRADE 5 USE 25 100 22-S
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

2

Kohler 52 468 12-S

WASHER, FLAT 5/16"

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 82 755 16-S

KIT, CYLINDER BARREL - (#DSC)

Note: Includes 4-6

$

$

Not available

4

Kohler 52 316 06

GUIDE - USE 52 316 08
(Superseded to 52 316 08)

$

$

Not available

5

Kohler 52 016 05-S

VALVE, EXHAUST

$92.99

$

Usually ships in 2-5 days

0

6

Kohler 52 031 01-S

INSERT - (#DSC)

$

$

Not available

7

Kohler 52 755 50-S

KIT, OIL RELIEF - DISCONTINUED

$

$

Not available

8

Kohler 52 072 12-S

STUD - DISCONTINUED

$

$

Not available

9

Kohler 25 086 12-S

SCREW

$5.99

$

Usually ships in 2-5 days

0

10

Kohler X-269-43-S

RING

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 52 078 05-S

SHAFT - DISCONTINUED

$

$

Not available

12

Kohler 52 030 10-S

BEARING

$120.99

$

Usually ships in 2-5 days

0

12

Kohler 52 030 11-S

BEARING .010

$240.99

$

Usually ships in 2-5 days

0

12

Kohler 52 030 12-S

BEARING .020

$

$

Not available

13

Kohler 25 086 10-S

SCREW - DISCONTINUED

$

$

Not available

14

Kohler 25 086 13-S

SCREW - DISCONTINUED

$

$

Not available

15

Kohler 41 468 01-S

WASHER

$4.49

$

Usually ships in 2-5 days

0

16

Kohler X-352-33

SCREW - USE 25 086 11
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0

17

Kohler 52 141 02-S

O-RING - DISCONTINUED

$

$

Not available

18

Kohler 52 139 08-S

PLUG

$

$

Not available

19

Kohler 25 086 11-S

SCREW

$6.99

$

In Stock, only 1 left!

0

20

Kohler 52 032 10-S

SEAL

$23.99

$

In Stock, only 1 left!

0

21

Kohler 82 755 17-S

KIT, CYLINDER BARREL

Note: Includes 4-6

$758.99

$

Usually ships in 2-5 days

0
