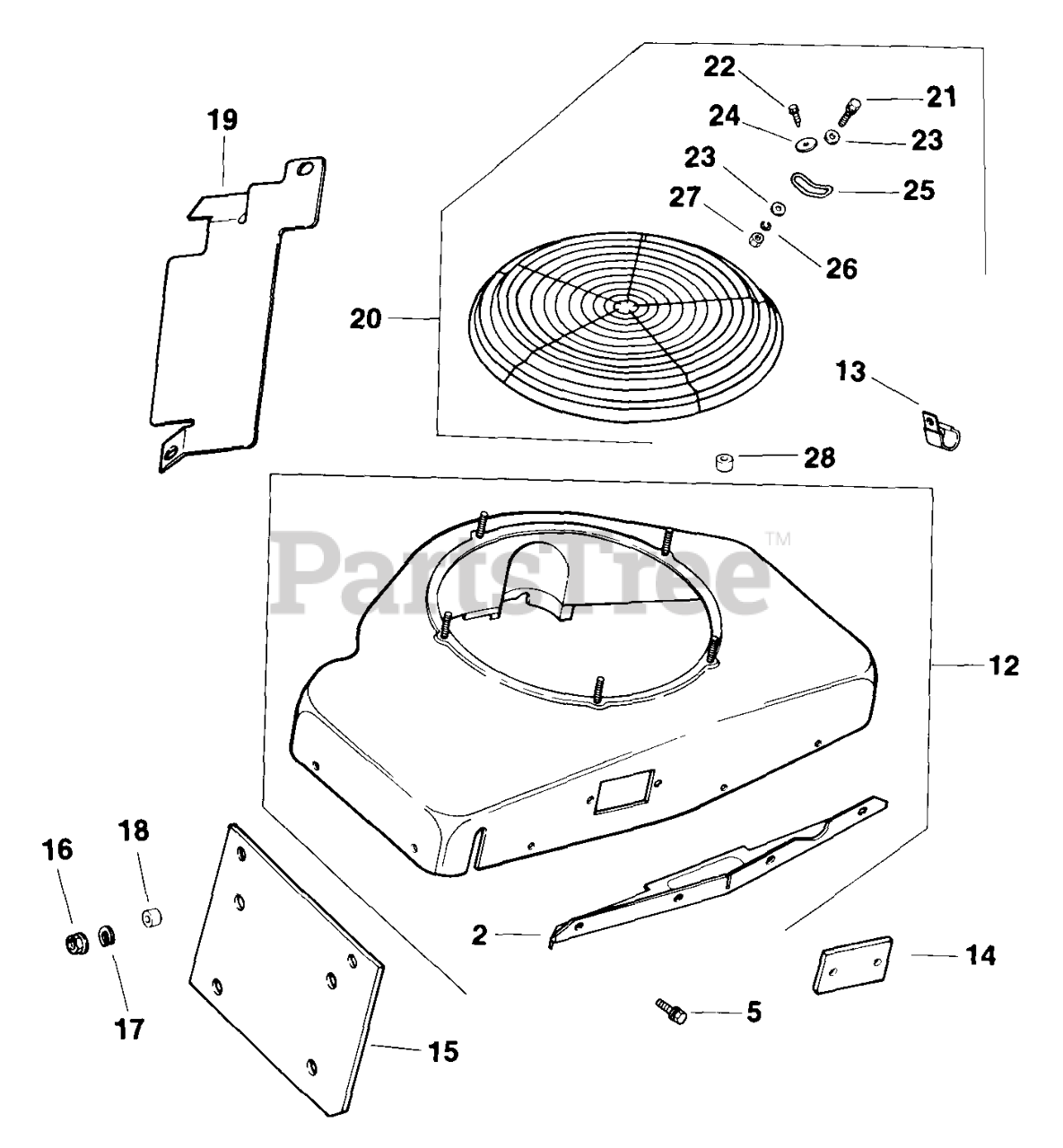

MV18-58543 - Kohler Magnum Engine, Made for Toro, 18hp, 13.4kW Baffels & Shroud 2-15-140 (TP-2305-B) Rev 10/13/2006 Parts Diagram

Magnum Engine, Made for Toro, 18hp, 13.4kW

Baffels & Shroud 2-15-140 (TP-2305-B) Rev 10/13/2006 Parts Diagram

  • Title

2

Kohler 52 217 01-S

SUPPORT - (#DSC)

$

$

Not available

5

Kohler X-67-83-S

SCREW, WSH HD TAP 1/4-20X7/16" USE 25 086 106-S
(Superseded to 25 086 106-S)

$2.49

$

In Stock, only 1 left!

0

12

Kohler 82 755 01-S

KIT, HOUSING

Note: Includes 2-4

$

$

Not available

20

Kohler 82 755 04-S

KIT, GUARD - (#DSC)

Note: Includes 21-28, 25 468 03-S [4]

$

$

Not available

21

Kohler X-156-2-S

SCREW

$3.49

$

Usually ships in 2-5 days

0

22

Kohler 25 086 32

SCREW - USE 25 086 40
(Superseded to 25 086 40)

$3.49

$

Usually ships in 2-5 days

0

23

Kohler X-25-36

WASHER - USE X-25-92
(Superseded to X-25-92-S)

$2.49

$

In Stock, only 2 left!

0

24

Kohler 25 468 03-S

WASHER

$3.49

$

Usually ships in 2-5 days

0

24

Kohler 25 468 03-S

WASHER

$3.49

$

Usually ships in 2-5 days

0

25

Kohler 52 126 14-S

BRACKET - DISCONTINUED

$

$

Not available

26

Kohler X-19-1-S

WASHER, SPRING LOCK #10

$3.99

$

Usually ships in 2-5 days

0

27

Kohler X-70-2-S

NUT, MACH SCREW #10-24 GRD 2 USE 25 100 17-S
(Superseded to 25 100 17-S)

$3.49

$

Usually ships in 2-5 days

0

28

Kohler 52 112 12-S

SPACER

$5.99

$

Usually ships in 2-5 days

0

4511304

Kohler 45 113 04

DECAL - USE 45 113 07
(Superseded to 45 113 07)

Note: NOT ILLUSTRATED. Replaced by 45 113 07

$

$

Not available
