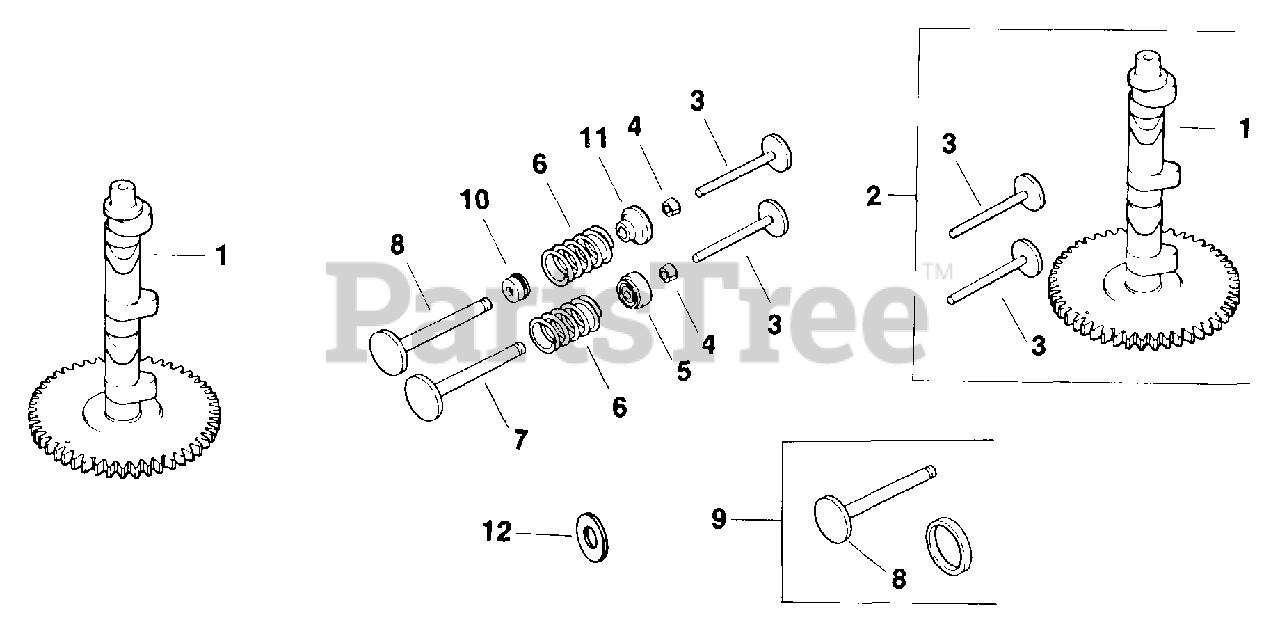

MV18-58501 - Kohler Magnum Engine, Basic Version, 18hp, 13.4kW Camshaft & Valves 4-15-29 (TP-2305-B) Rev 10/13/2006 Parts Diagram

Magnum Engine, Basic Version, 18hp, 13.4kW

Camshaft & Valves 4-15-29 (TP-2305-B) Rev 10/13/2006 Parts Diagram

  • Title

1

Kohler 52 012 09-S

CAMSHAFT-DISCONTINUED

Note: After Serial No. 1917809286

$

$

Not available

2

Kohler 82 755 13-S

KIT, CAMSHAFT - DISCONTINUED

Note: Includes 3; Before Serial No. 1917809296.

$

$

Not available

3

Kohler 52 019 03-S

TAPPET

Note: After Serial No. 1917809286

$25.99

$

Usually ships in 2-5 days

0

4

Kohler 41 755 10-S

KIT, RETAINER

$12.99

$

In Stock, Qty 5

0

5

Kohler 52 413 01-S

ROTATOR

$35.99

$

Usually ships in 2-5 days

0

6

Kohler 25 089 01-S

SPRING

$10.99

$

In Stock, only 1 left!

0

7

Kohler 52 016 05-S

VALVE, EXHAUST

Note: After Serial No. 1917809286

$92.99

$

Usually ships in 2-5 days

0

8

Kohler 52 017 08-S

VALVE - DISCONTINUED

$

$

Not available

9

Kohler 82 755 11-S

KIT, VALVE - (#DSC)

Note: Includes valve 52-016-06; Before Serial No. 1917809296.

$

$

Not available

10

Kohler 52 032 13-S

SEAL

$33.99

$

Usually ships in 2-5 days

0

11

Kohler 230011-S

RETAINER, VALVE SPRING

$9.49

$

In Stock, Qty 6

0
