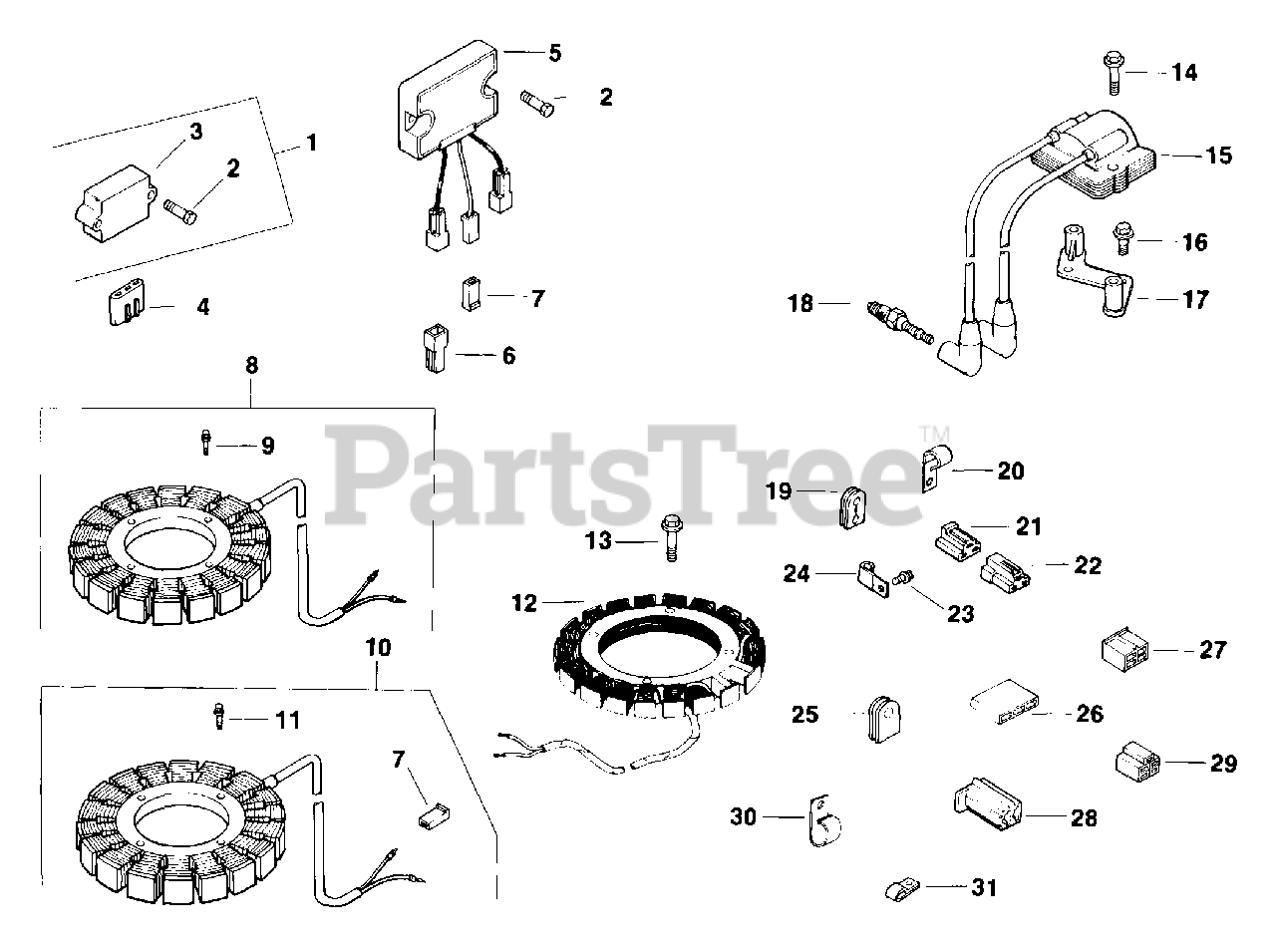

MV16-56509 - Kohler Magnum Engine, Basic Version, 16hp, 11.9kW Ignition (TP-2305-B) Rev 10/13/2006 Parts Diagram

Magnum Engine, Basic Version, 16hp, 11.9kW

Ignition (TP-2305-B) Rev 10/13/2006 Parts Diagram

  • Title

1

Kohler 25 755 03-S

KIT, REGULATOR/RECTIFIER

Note: Includes 2,3

$125.99

$

In Stock, only 1 left!

0

2

Kohler X-132-5-S

SCREW, SEMS 1/4-20X5/8" USE 25 086 539-S
(Superseded to 25 086 539-S)

$3.49

$

In Stock, only 1 left!

0

3

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

8

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: Includes X-67-5-S1-S [4]

$149.99

$

In Stock, Qty 15

0

9

Kohler X-67-51-S

SCREW, WSH HD TAP #10-24X3/4" USE 25 086 97-S
(Superseded to 25 086 97-S)

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 25 086 16-S

SCREW, WSH HD 1/4-20X7/8" - DISCONTINUED

$

$

Not available

15

Kohler 52 584 02-S

MODULE

$305.99

$

In Stock, only 1 left!

0

16

Kohler 25 086 15-S

SCREW, WSH HD 1/4-20X1"

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 52 126 08-S

BRACKET - DISCONTINUED

$

$

Not available

18

Kohler 51 132 02

SPARK PLUG - USE 52 132 02
(Superseded to 52 132 02)

$17.99

$

Usually ships in 2-5 days

0

19

Kohler 52 313 02-S

GROMMET - (#DSC)

$

$

Not available

20

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

21

Kohler 236473-S

CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

26

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

5251819-S

Kohler 52 518 19-S

LEAD - (#DSC)

Note: (19-1/2" - 14 gauge - insulated push on tab-uninsulated push on tab terminals); NOT ILLUSTRATED

$

$

Not available

4751833-S

Kohler 47 518 33-S

LEAD

Note: (11" - 14 gauge - uninsulated push on tab terminals); NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!
