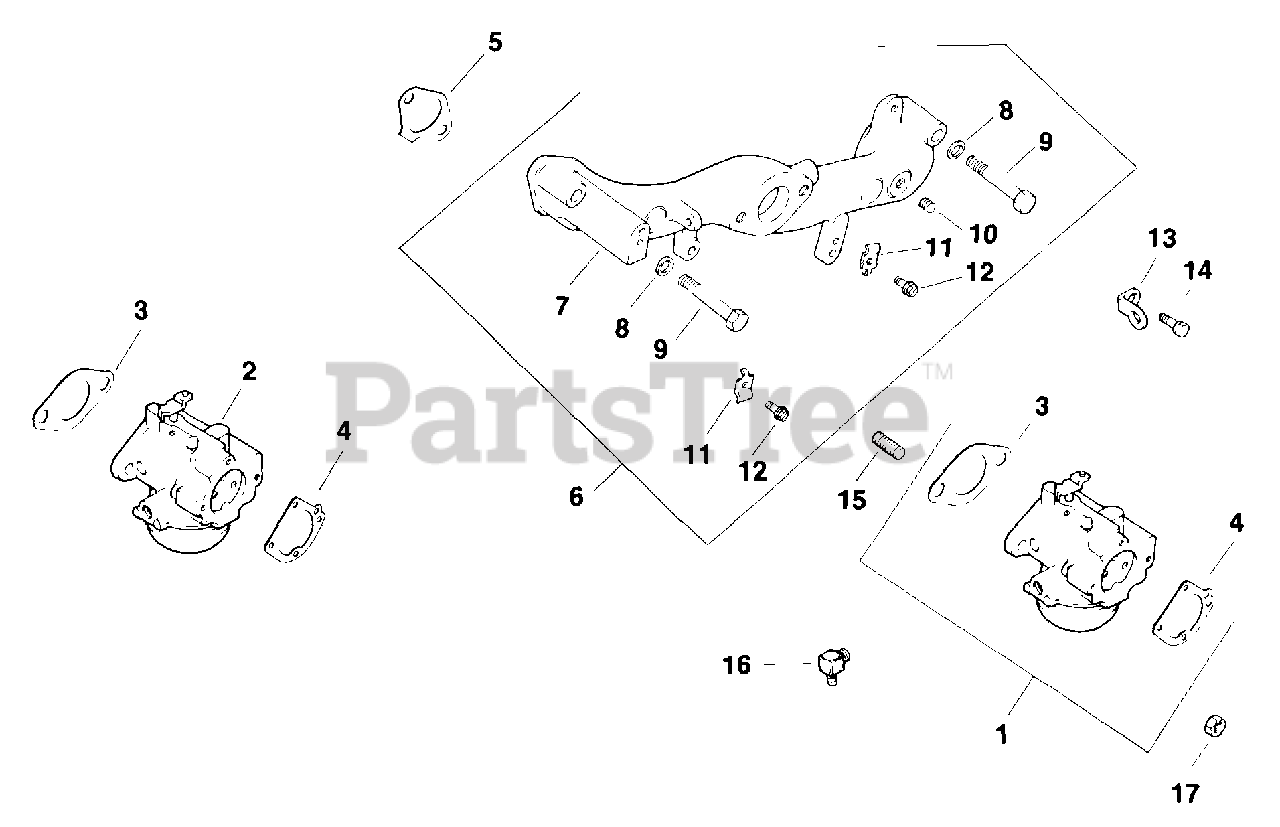

MV16-56509 - Kohler Magnum Engine, Basic Version, 16hp, 11.9kW Carburetor (TP-2305-B) Rev 10/13/2006 Parts Diagram

Magnum Engine, Basic Version, 16hp, 11.9kW

Carburetor (TP-2305-B) Rev 10/13/2006 Parts Diagram

  • Title

1

Kohler 52 853 25-S

KIT, CARBURETOR

Note: Includes 2,3, Carburetor assembly 52 053 54 - for information only - not available separately

$

$

Not available

3

Kohler 271030-S

GASKET, CARBURETOR

$7.49

$

Usually ships in 2-5 days

0

4

Kohler 277069

GASKET - USE 25 041 06
(Superseded to 25 041 06)

$3.49

$

In Stock, only 1 left!

0

5

Kohler 52 041 09-S

GASKET

$13.99

$

Usually ships in 2-5 days

0

6

Kohler 52 755 91-S

KIT, MANIFOLD

Note: Includes 7-12, (1) X-75-2-S3-S

$

$

Not available

7

Kohler 52 164 15-S

MANIFOLD

$

$

Not available

8

Kohler X-25-44-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

9

Kohler X-6-29-S

SCREW,CAP HD 5/16-18x2"

$3.49

$

In Stock, only 4 left!

0

10

Kohler X-75-23-S

PLUG, CTSK PIPE 1/8" USE 25 139 60-S
(Superseded to 25 139 60-S)

$3.49

$

In Stock, only 2 left!

0

11

Kohler 235778-S

CLAMP

$10.99

$

Usually ships in 2-5 days

0

12

Kohler X-67-97-S

SCREW, WSH HD TAP #10-24X13/32" USE 25 086 109-S
(Superseded to 25 086 109-S)

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 232867

STRAP - USE 28 445 01
(Superseded to 28 445 01-S)

$

$

Not available

14

Kohler X-67-62-S

SCREW, WSH HD TAP 1/4-20X3/4" USE 25 086 100-S
(Superseded to 25 086 100-S)

$3.49

$

Usually ships in 2-5 days

0

15

Kohler X-352-37-S

STUD, 5/16-18X1" USE 25 072 06-S
(Superseded to 25 072 06-S)

$

$

Not available

16

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

Note: For 1/4" I.D. rubber hose

$14.99

$

In Stock, only 1 left!

0

17

Kohler X-77-2-S

NUT, 5/16-18 GRADE 2 USE 25 100 21-S
(Superseded to 25 100 21-S)

$3.49

$

Usually ships in 2-5 days

0
