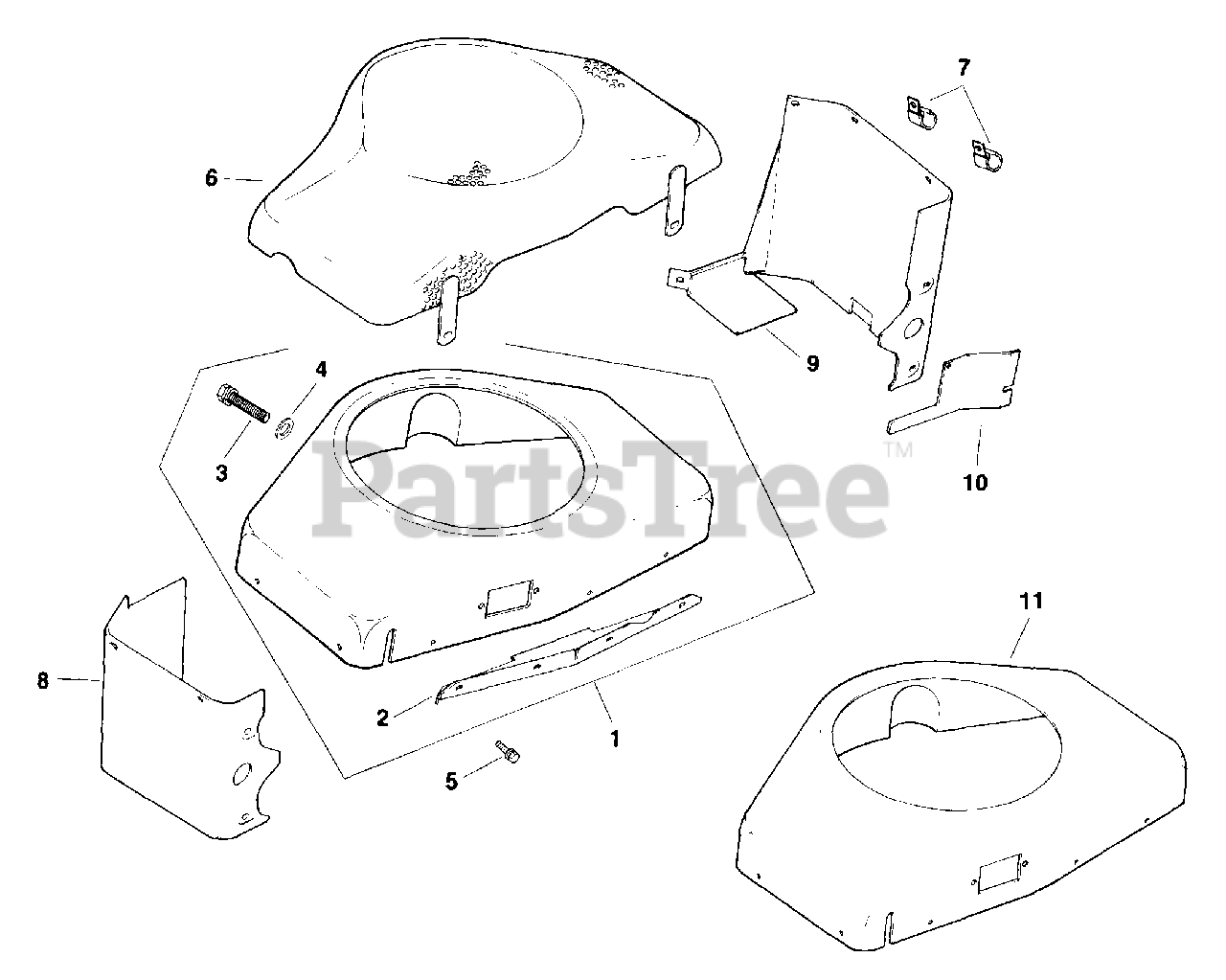

MV16-56509 - Kohler Magnum Engine, Basic Version, 16hp, 11.9kW Baffles & Shroud 2-15-507 (TP-2305-B) Rev 10/13/2006 Parts Diagram

Magnum Engine, Basic Version, 16hp, 11.9kW

Baffles & Shroud 2-15-507 (TP-2305-B) Rev 10/13/2006 Parts Diagram

  • Title

1

Kohler 52 755 71-S

KIT, BLOWER HOUSING - DISCONTINUED

Note: Includes 2-4

$

$

Not available

2

Kohler 52 217 01-S

SUPPORT - (#DSC)

$

$

Not available

3

Kohler 52 086 11-S

SCREW, WSH HD TAP 1/4-20-5/8" - DISCONTINUED

$

$

Not available

4

Kohler 52 468 16-S

WASHER, FLAT 5/16" - DISCONTINUED

$

$

Not available

5

Kohler X-67-83-S

SCREW, WSH HD TAP 1/4-20X7/16" USE 25 086 106-S
(Superseded to 25 086 106-S)

$2.49

$

In Stock, only 1 left!

0

7

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

8

Kohler 52 124 23-S

BAFFLE, CYLINDER HEAD - (#DSC)

$

$

Not available

8

Kohler 52 063 31-S

BAFFLE - DISCONTINUED

$

$

Not available

9

Kohler 52 063 21-S

BAFFLE

$

$

Not available

10

Kohler 52 063 01-S

BAFFLE, FUEL PUMP - (#DSC)

$

$

Not available

4711308

Kohler 47 113 08

DECAL - USE 47 113 22
(Superseded to 47 113 36-S)

Note: NOT ILLUSTRATED. Replaced by 47 113 22

$

$

Not available
