MV 650 SPHDS - Billy Goat Lawn & Litter Vacuum Engine Assembly Parts Diagram

Lawn & Litter Vacuum

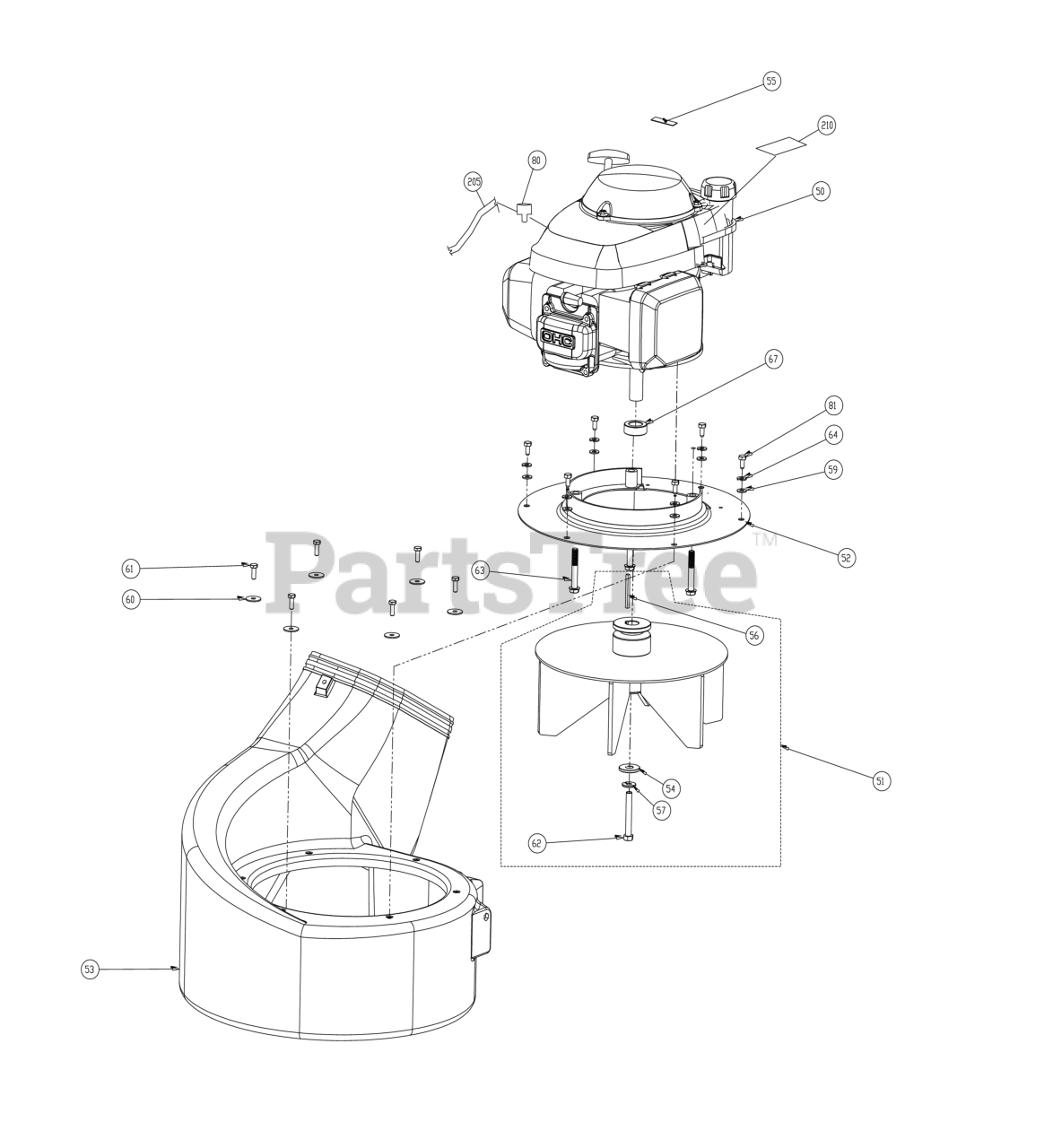

Engine Assembly Parts Diagram

  • Title

50

Billy Goat 840069

ENGINE HONDA 6.5 VERTICAL GSV190

$

$

Currently unavailable

51

Billy Goat 840136

IMPELLER ASSEMBLY SP MV VAC

$441.99

$

Usually ships in 2-11 days

0

52

Billy Goat 840107

PLATE TOP WA SP VAC

$213.99

$

Usually ships in 2-11 days

0

53

Billy Goat 840205

HOUSING WITH PVC LINER MV

$701.99

$

Usually ships in 2-11 days

0

54

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

56

Billy Goat 9201087

KEY 3/16" SQ X 2 1/8"

$2.99

$

In Stock, only 2 left!

0

57

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

59

Billy Goat 8172007

WASHER 1/4"SAE9/32"X5/8"X1/16"

$0.99

$

In Stock, Qty 7

0

60

Billy Goat 8172019

WASHER FLAT FENDER 1/4"

$0.99

$

Usually ships in 2-11 days

0

61

Billy Goat 8041004

SCREWCAP 1/4"-20X3/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

62

Billy Goat 790167

SCREWCAP 3/8"-24 X 2 3/4"GR.8

$4.49

$

In Stock, only 4 left!

0

63

Billy Goat 900564

SCREWCAP 3/8"-16X2 1/2" TAPTITE

$6.49

$

Usually ships in 2-11 days

0

64

Billy Goat 8177010

WASHER LOCK 1/4" S/T MED

$0.99

$

Usually ships in 2-11 days

0

67

Billy Goat 840083

SPACER 1.50 OD X .890 ID X .50 THK

$11.99

$

Usually ships in 2-11 days

0

80

Billy Goat 840215

TERMINAL 18-14 BLUE T-TAP

$1.99

$

Usually ships in 2-11 days

0

81

Billy Goat 840213

SCREWCAP 1/4"-20 X 5/8" GR 5

$0.99

$

Usually ships in 2-11 days

0
