MV 650 H - Billy Goat Lawn & Litter Vacuum ENGINE Parts Diagram

Lawn & Litter Vacuum

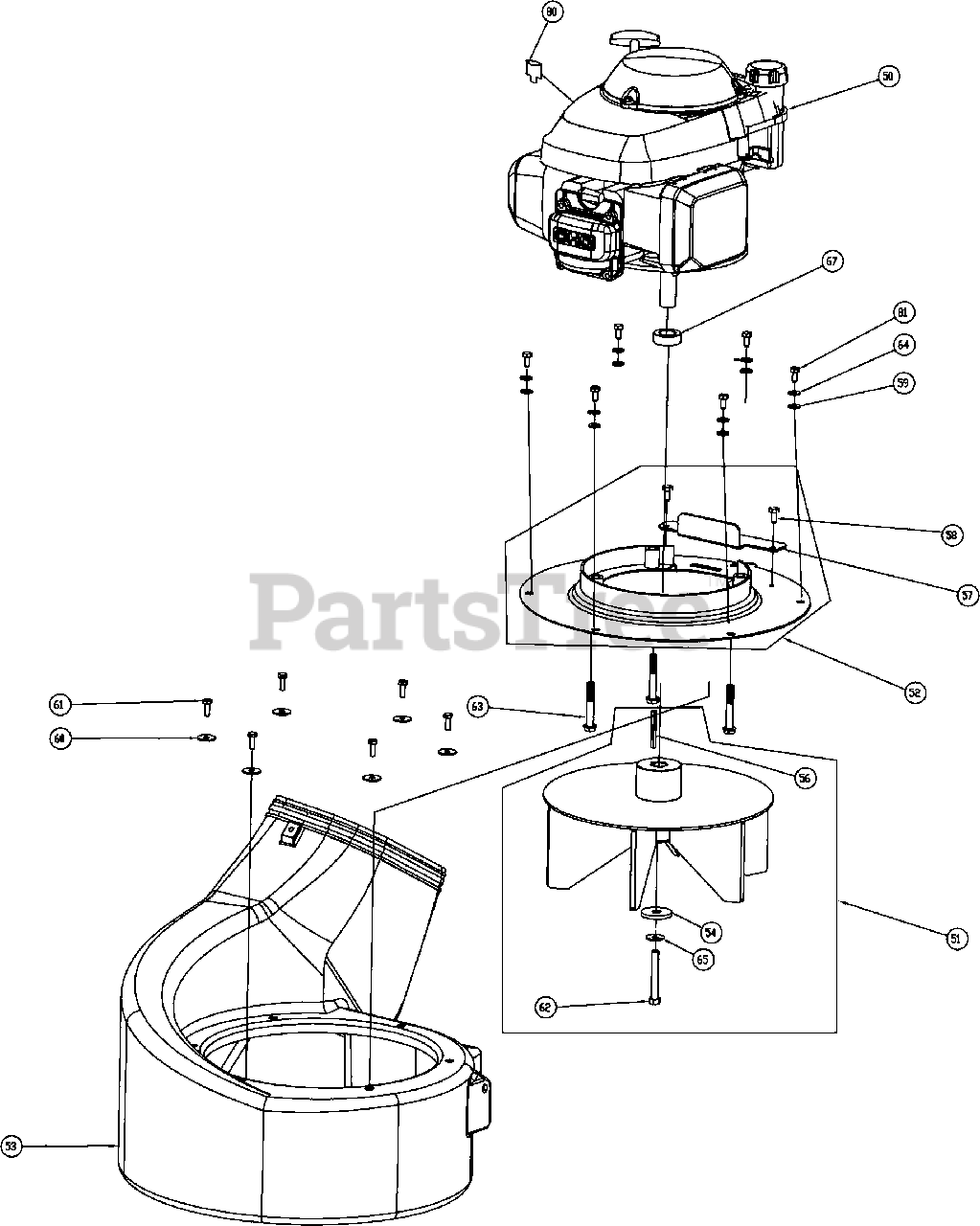

ENGINE Parts Diagram

  • Title

50

Billy Goat 840069

ENGINE HONDA 6.5 VERTICAL GSV190

$

$

Currently unavailable

51

Billy Goat 840137

IMPELLER ASSEMBLY PUSH MV VAC
(Superseded to 840136)

$441.99

$

Usually ships in 2-11 days

0

52

Billy Goat 840111

TOP PLATE ASSEMBLY PUSH MV VAC

$

$

Not available

53

Billy Goat 840205

HOUSING PLASTIC VAC

$701.99

$

Usually ships in 2-11 days

0

54

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

56

Billy Goat 9201087

SQ KEY 2.125 X .187

$2.99

$

In Stock, only 2 left!

0

57

Billy Goat 840220

BRACKET COVER TOP PLATE VAC

$17.99

$

Usually ships in 2-11 days

0

58

Billy Goat 890359

SCREW 1/4"-20 X 5/8" HWH

$1.49

$

Usually ships in 2-11 days

0

59

Billy Goat 8172007

WASHER 1/4" SAE ZP

$0.99

$

In Stock, Qty 8

0

60

Billy Goat 8172019

WASHER FENDER 1/4 ZP

$0.99

$

Usually ships in 2-11 days

0

61

Billy Goat 8041004

SCREWCAP 1/4 - 20 x 0.75 HWH

$0.99

$

Usually ships in 2-11 days

0

62

Billy Goat 790167

SCREWCAP 3/8-24X2 3/4" W/PATCH LOCK

$4.49

$

In Stock, only 4 left!

0

63

Billy Goat 900564

SCREWCAP 3/8"-16X2 1/2" TAPTITE

$6.49

$

Usually ships in 2-11 days

0

64

Billy Goat 8177010

WASHER SPLIT LOCK 1/4"

$0.99

$

Usually ships in 2-11 days

0

65

Billy Goat 8177012

WASHER LOCK 3/8" ST MED

$0.99

$

In Stock, Qty 9

0

67

Billy Goat 840083

SPACER 1.50OD X .875ID X .5 THK

$11.99

$

Usually ships in 2-11 days

0

80

Billy Goat 840215

TERMINAL 18-14 BLUE T-TAP

$1.99

$

Usually ships in 2-11 days

0

81

Billy Goat 840213

SCREWCAP 1/4-20X5/8 GR. 5

$0.99

$

Usually ships in 2-11 days

0
