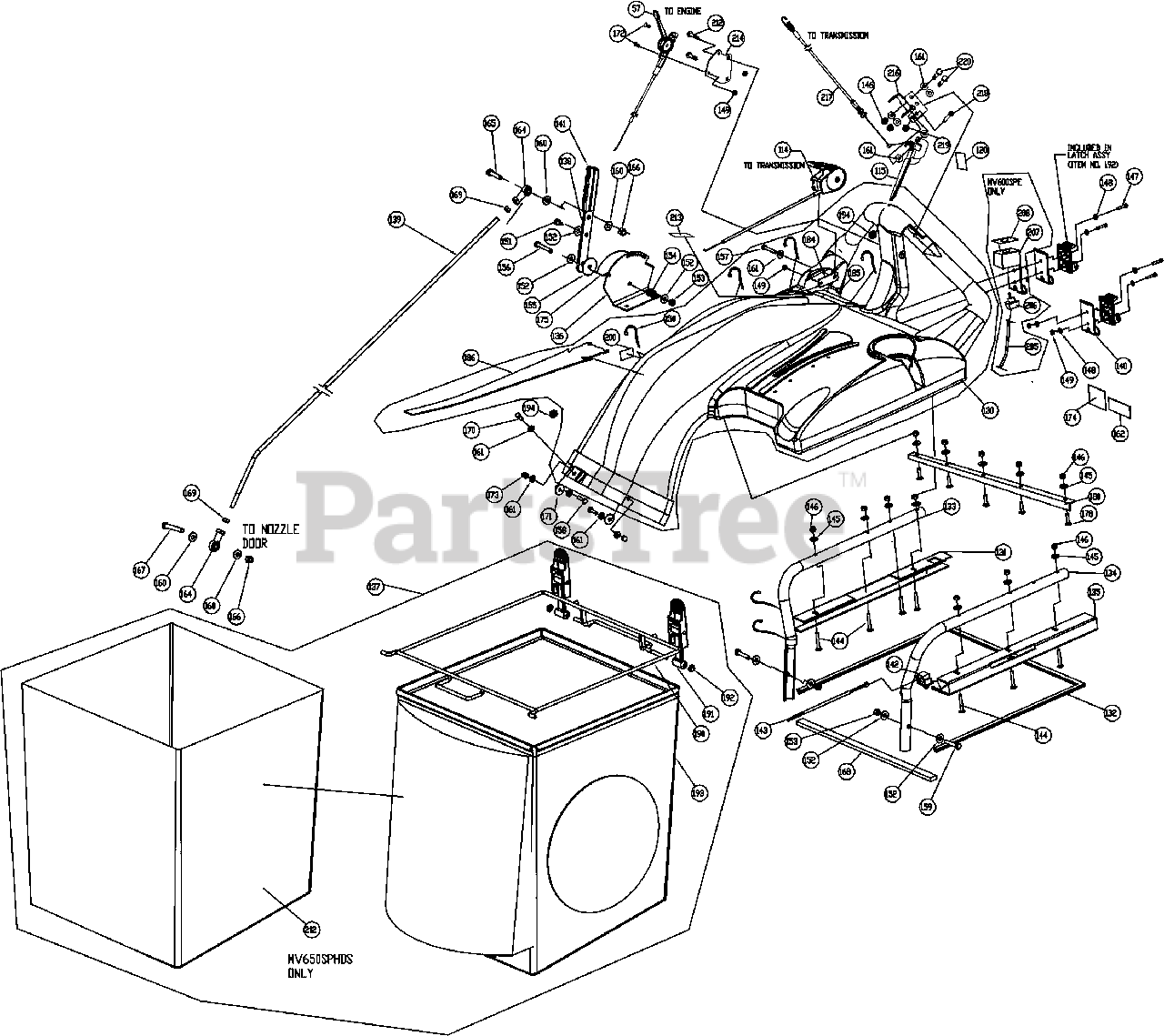

MV 600 SPE - Billy Goat Lawn & Litter Vacuum HOOD Parts Diagram

Lawn & Litter Vacuum

HOOD Parts Diagram

  • Title

57

Billy Goat 440013

CONTROL THROTTLE

$40.99

$

In Stock, Qty 9

0

114

Billy Goat 840023

CONTROL SHIFT WESCON MV VAC

$89.99

$

Usually ships in 2-11 days

0

115

Billy Goat 840265

HANDLE MV CLUTCH CABLE

$61.99

$

Usually ships in 2-11 days

0

120

Billy Goat 500176

LABEL CLUTCH DRIVE

$3.99

$

Usually ships in 2-11 days

0

130

Billy Goat 840141

HOOD ASSY W/ LABEL MV VAC

$527.99

$

Usually ships in 2-11 days

0

131

Billy Goat 840153

BRACKET BAG CHANNEL RH W/SEAL MV VAC

$79.99

$

Usually ships in 2-11 days

0

132

Billy Goat 840196

SEAL BAG MV VAC

$28.99

$

Usually ships in 2-11 days

0

133

Billy Goat 840037

TUBE HANDLE BRACE RH MV VAC

$33.99

$

Usually ships in 2-11 days

0

134

Billy Goat 840038

TUBE HANDLE BRACE LH MV VAC

$33.99

$

Usually ships in 2-11 days

0

135

Billy Goat 840274

BRACKET BAG CHANNEL LH

$42.99

$

Usually ships in 2-11 days

0

136

Billy Goat 840152

BRACKET NOZZLE DOOR ADJ W/LABEL MV VAC

$85.99

$

Usually ships in 2-11 days

0

137

Billy Goat 840195

BAG ASSEMBLY MV VAC

$404.99

$

Usually ships in 2-11 days

0

138

Billy Goat 840138

BAR LIFT NOZZLE DOOR W/ GRIP MV VAC

$67.99

$

Usually ships in 2-11 days

0

139

Billy Goat 840061

ROD LIFT NOZZLE DOOR SP VAC

$28.99

$

In Stock, only 1 left!

0

140

Billy Goat 840062

PLATE BAG LATCH MV VAC

$

$

Not available

141

Billy Goat 840191

GRIP LEVER LIFT

$6.99

$

Usually ships in 2-11 days

0

142

Billy Goat 840058

SWITCH INTERLOCK VAC

$20.99

$

Usually ships in 2-11 days

0

143

Billy Goat 840275

WIRING HARNESS ELEC START MV

$183.99

$

Usually ships in 2-11 days

0

144

Billy Goat 8024025

BOLT CARRIAGE 1/4-20 X 1.75

$0.99

$

Usually ships in 2-11 days

0

145

Billy Goat 8171002

WASHER 1/4" FC ZP

$0.99

$

In Stock, Qty 10

0

146

Billy Goat 8160001

NYLON INSERT LOCKNUT 1/4-20 UNC

$0.99

$

In Stock, Qty 8

0

147

Billy Goat 520018

SCREW HEX HEAD #10-24 X 1"

$0.99

$

Usually ships in 2-11 days

0

148

Billy Goat 8172005

WASHER #10 SAE ZP

$0.99

$

In Stock, only 2 left!

0

149

Billy Goat 8164005

NYLON INSERT LOCKNUT 10-24 UNC

$0.99

$

In Stock, only 4 left!

0

150

Billy Goat 900407

Ty-Wrap

$0.99

$

In Stock, only 2 left!

0

151

Billy Goat 610347

PIN SCREW 1/4-28

$26.99

$

Usually ships in 2-11 days

0

152

Billy Goat 8171003

WASHER 5/16 FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

153

Billy Goat 8160002

NYLON INSERT LOCKNUT 5/16-18 UNC

$0.99

$

In Stock, only 4 left!

0

154

Billy Goat 610429

SPRING LEVER GZ

$20.99

$

Usually ships in 2-11 days

0

155

Billy Goat 610348

FIBRE WASHER

$8.49

$

Usually ships in 2-11 days

0

156

Billy Goat 8041032

SCREWCAP 1/4-20X2"

$0.99

$

In Stock, Qty 6

0

157

Billy Goat 8041011

SCREWCAP 1/4"-20X2 1/4" ZP

$0.99

$

Usually ships in 2-11 days

0

158

Billy Goat 8041006

SCREWCAP 1/4-20X1" ZP

$0.99

$

Usually ships in 2-11 days

0

159

Billy Goat 8041031

SCREWCAP 5/16-18 X 1.75 ZP

$0.99

$

In Stock, only 3 left!

0

160

Billy Goat 8171004

WASHER 3/8 FC

$0.99

$

In Stock, Qty 5

0

161

Billy Goat 8172007

WASHER 1/4" SAE ZP

$0.99

$

In Stock, Qty 7

0

162

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

164

Billy Goat 400886

ROD END BALL JOINT 3/8 NF

$24.99

$

Usually ships in 2-11 days

0

165

Billy Goat 8041052

SCREW CAP 3/8-16X1 1/2 ZP

$1.49

$

Usually ships in 2-11 days

0

166

Billy Goat 8160003

NYLON INSERT LOCKNUT 3/8-16 UNC

$0.99

$

In Stock, Qty 6

0

167

Billy Goat 8041056

SCREWCAP 3/8"-16X2 1/2" ZP

$1.49

$

Usually ships in 2-11 days

0

168

Billy Goat 840197

SEAL BAG FRONT HOOD 20.5 LONG

$11.99

$

Usually ships in 2-11 days

0

169

Billy Goat 8149003

NUT REG 3/8-24 NF

$1.49

$

Usually ships in 2-11 days

0

170

Billy Goat 8041004

SCREWCAP 1/4"-20X3/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

171

Billy Goat 8172019

WASHER FENDER 1/4 ZP

$0.99

$

Usually ships in 2-11 days

0

172

Billy Goat 830514

SCREW MACH FLAT HD PHIL #10-24 HEX

$0.99

$

In Stock, only 2 left!

0

173

Billy Goat 840071

NUT ACORN 1/4-20

$2.99

$

In Stock, only 1 left!

0

174

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

175

Billy Goat 840080

LABEL NOZZLE DOOR MV VAC

$4.99

$

Usually ships in 2-11 days

0

178

Billy Goat 8024021

BOLT CARRIAGE 1/4-20 X 3/4"

$0.99

$

Usually ships in 2-11 days

0

180

Billy Goat 840214

BRACKET HOOD FRONT STRAIGHTENER

$13.99

$

Usually ships in 2-11 days

0

184

Billy Goat 840180

PLATE SHIFT CONTROL ANTI ROT

$4.49

$

Usually ships in 2-11 days

0

185

Billy Goat 8059140

SCREWCAP #10-24X1 1/4"

$0.99

$

In Stock, only 1 left!

0

186

Billy Goat 840179

LABEL HOOD DECAL

$8.99

$

Usually ships in 2-11 days

0

190

Billy Goat 840040

ROD BAG WA MV VAC

$77.99

$

Usually ships in 2-11 days

0

191

Billy Goat 840139

LATCH RUBBER ASSEMBLY MV VAC
(Superseded to 840139-S)

$79.99

$

In Stock, only 1 left!

0

192

Billy Goat 360203

PAL NUT 0.312

$1.49

$

Usually ships in 2-11 days

0

193

Billy Goat 840189

BAG DEBRIS MV VAC

$202.99

$

Usually ships in 2-11 days

0

194

Billy Goat 840206

GROMMET RUBBER 5/8" OD X 3/8" ID

$3.49

$

Usually ships in 2-11 days

0

200

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available

205

Billy Goat 840228

CABLE HARNESS ELECT START
(Superseded to 840275)

$183.99

$

Usually ships in 2-11 days

0

206

Billy Goat 500307

SWITCH

$54.99

$

Usually ships in 2-11 days

0

207

Billy Goat 840096

BRACKET START SWITCH MV VAC

$

$

Not available

208

Billy Goat 100262

LABEL START STOP EN/SP

$11.99

$

Usually ships in 2-11 days

0

213

Billy Goat 501314

LABEL THROTTLE BC

$3.49

$

Usually ships in 2-11 days

0

214

Billy Goat 840267

PLATE MV THROTTLE CONTROL

$8.99

$

Usually ships in 2-11 days

0

215

Billy Goat 840272

CABLE THROTTLE CONTROL 72"

$27.99

$

Usually ships in 2-11 days

0

216

Billy Goat 840264

BRACKET MV CABLE MOUNT WA

$49.99

$

Usually ships in 2-11 days

0

217

Billy Goat 840266-S

CABLE DRIVE MV CLUTCH

$66.99

$

Usually ships in 2-11 days

0

218

Billy Goat 350178

BOLT SHOULDER 1/4" X 1 3/4"

$5.49

$

Usually ships in 2-11 days

0

219

Billy Goat 8155007

NUT LOCK #10-24 HEX

$0.99

$

Usually ships in 2-11 days

0

220

Billy Goat 8041009

SCREWCAP 1/4-20 1 3/4 HCS ZP

$0.99

$

In Stock, only 2 left!

0

221

Billy Goat 840082

SCREW PLASTITE 1/4"-10 X 3/4" HWH ZP

$1.49

$

In Stock, only 2 left!

0
