MTD 9122A39 (133K619G098) - Wizard Lawn Tractor (1993) (Western Auto) Electrical/Switch Parts Diagram

Lawn Tractor

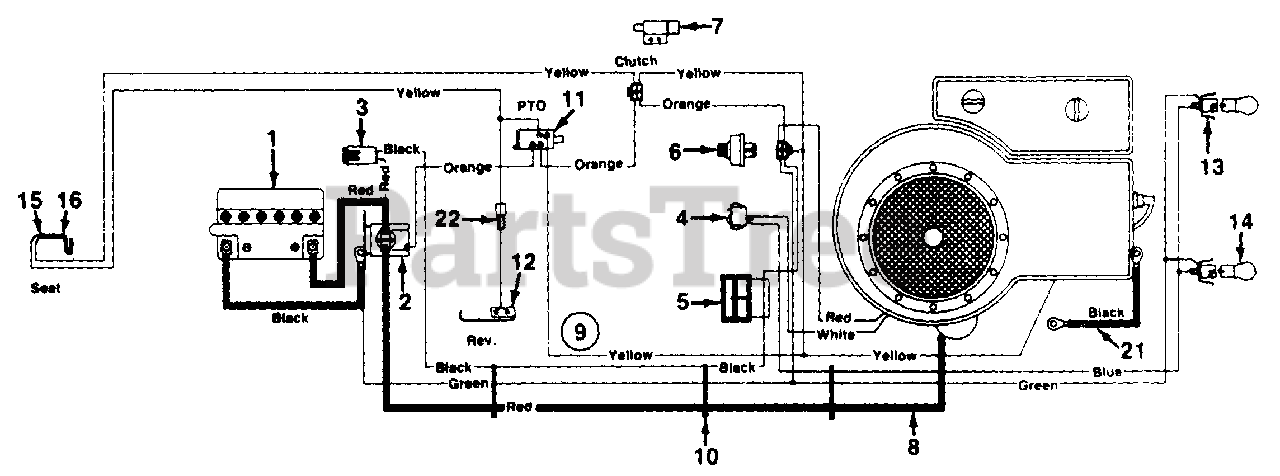

Electrical/Switch Parts Diagram

  • Title

1

MTD 725-1633

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

MTD 725-1625

Fuse 7.5 Amp

$8.49

$

Usually ships in 3-6 days

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

7

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

8

MTD 725-1081

Electric Wire - 30" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0076

Wire Harness

$

$

Not available

10

MTD 725-0197

Cable Tie

$

$

Currently unavailable

11

MTD 725-0803C

Safety Switch (Deck)
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

12

MTD 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-1649

Bulb Socket
(Superseded to 925-1649A)

Note: (Style 0, 6)

$11.99

$

In Stock, Qty 20+

0

MTD 725-1650

Bulb Socket
(Superseded to 925-1650)

Note: (Style 4, 9)

$

$

Not available

14

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

15

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

21

MTD 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

22

MTD 725-1399

Extension Wire

$

$

Not available
