MTD 599 (41AE599Q900) - Yard Machines String Trimmer, Electric General Assembly Parts Diagram

String Trimmer, Electric

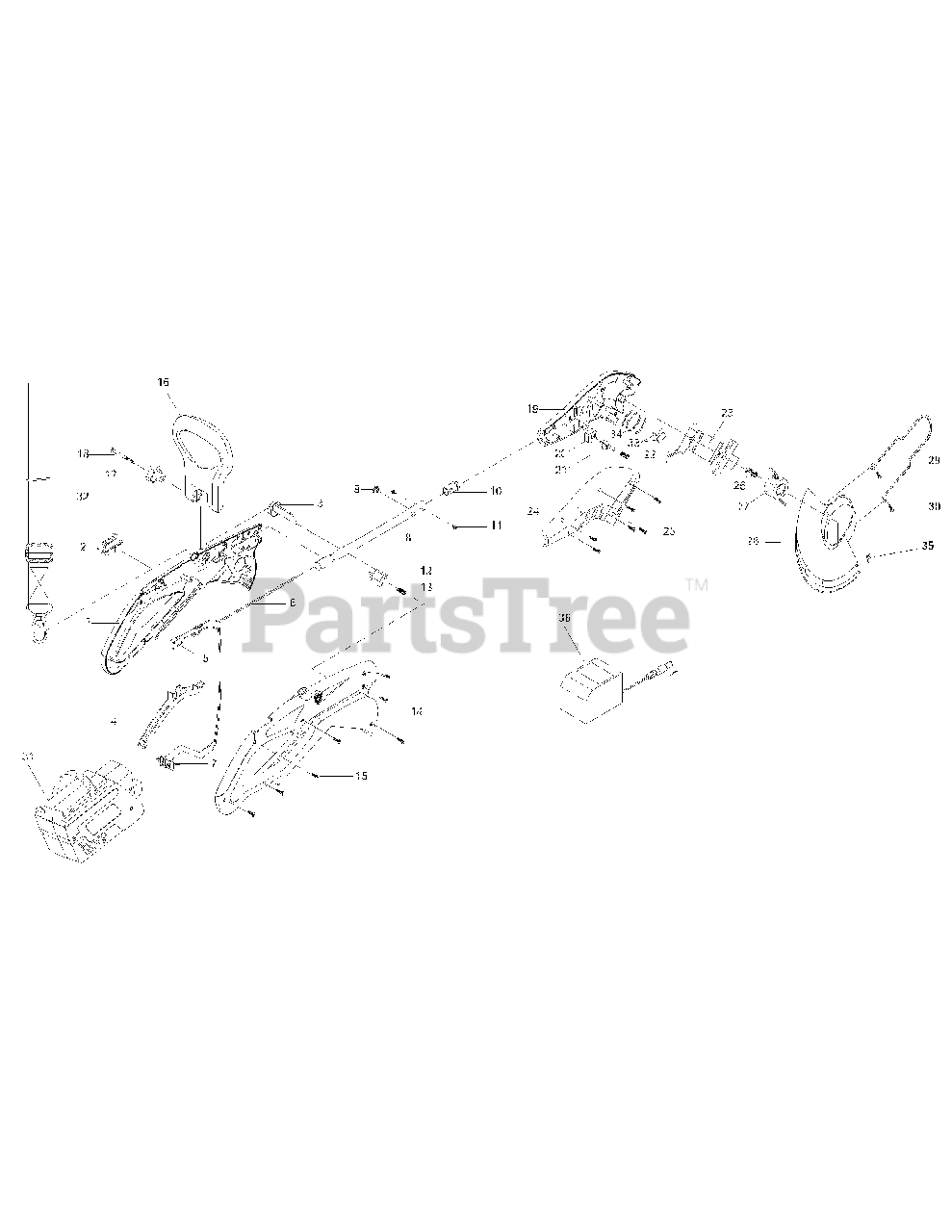

General Assembly Parts Diagram

  • Title
1

MTD MC-6038-959908

HOUSING (L)

$

$

Currently unavailable

2

MTD MC-6209-959903

PUSH BUTTON

$

$

Currently unavailable

3

MTD MC-6056-959909

BUTTON RELEASE

$

$

Currently unavailable

4

$

$

Currently unavailable

$

$

Not available

6

MTD MC-6011-959901

POWER CORD

$

$

Currently unavailable

7

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

10

$

$

Currently unavailable

$

$

Not available

12

MTD MC-6056-959908

BATTERY LOCK

$

$

Currently unavailable

13

$

$

Not available

14

MTD MC-6038-959907

HOUSING (R)

$

$

Currently unavailable

$

$

Not available

16

MTD MC-6228-959903

HANDLE ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

19

MTD MC-6086-959910

MOTOR HOUSING (L)

$

$

Currently unavailable

20

MTD MC-6134-202009

LOCK RELEASE

$

$

Currently unavailable

$

$

Not available

22

$

$

Not available

23

MTD MC-6228-959901

MOTOR ASS'Y

$

$

Not available

24

MTD MC-6086-959909

MOTOR HOUSING (R)

$

$

Currently unavailable

$

$

Not available

26

$

$

Not available

27

MTD MC-6228-202004

SPOOL ASS'Y

$

$

Not available

28

MTD MC-6228-959902

GUARD ASS'Y

$

$

Not available

$

$

Not available

$

$

Not available

31

MTD MC-6228-BL1201

BATTERY ASS'Y

$

$

Not available

$

$

Not available

33

$

$

Not available

34

$

$

Currently unavailable

$

$

Currently unavailable

36

$

$

Currently unavailable
