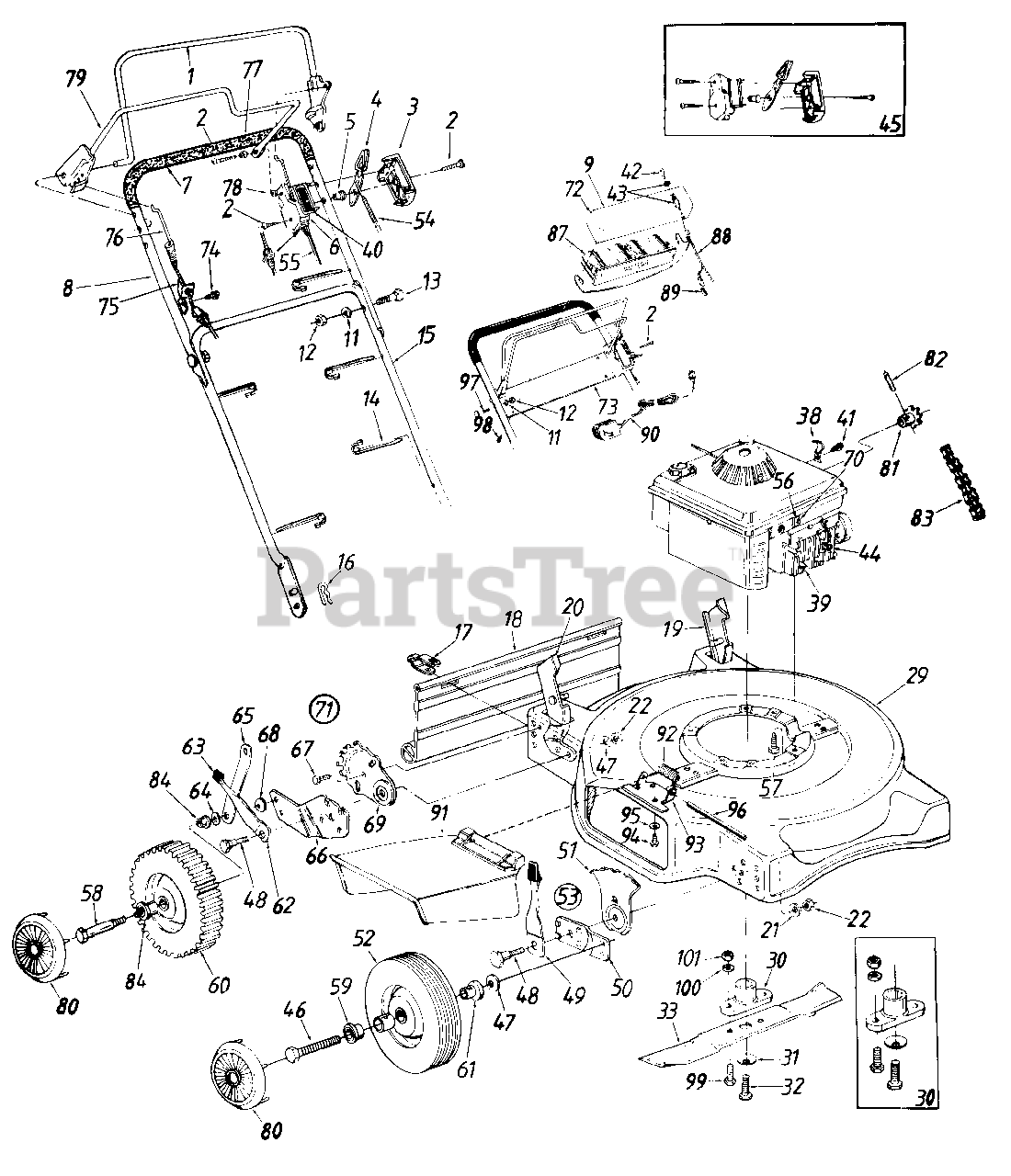

MTD 3236A09 (120-284E098) - Wizard Walk-Behind Mower (1990) (Western Auto) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 14321

Control Handle Ass'y.

$

$

Not available

2

MTD 710-0796

Truss Mach. Scr. #12 x 1.5"

$5.49

$

In Stock, only 1 left!

0

3

MTD 731-0817

Control Panel Half

$

$

Not available

4

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

MTD 731-0524

Control Disc Pin

$

$

Not available

6

MTD 731-0816

Clutch Panel Half

$

$

Not available

7

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

8

MTD 749-0756

Upper Handle
(Superseded to 749-0756A)

$

$

Not available

9

MTD 777-6575

Instruction Label-Handle

$

$

Currently unavailable

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

MTD 17189

Handle Brkt. Ass'y.-L.H.

$

$

Not available

20

MTD 17188

Handle Brkt. Ass'y.-R.H.

$

$

Not available

21

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

MTD 712-0287

Hex Nut 1/4-20 Thd.t
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

$197.99

$

Usually ships in 3-6 days

0

30

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

31

MTD 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 5

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

Usually ships in 3-6 days

0

33

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

38

MTD 12894A

Cable Clamp

$

$

Not available

39

3.5 H.P. Engine-See Breakdown

$

$

Not available

40

MTD 777-5774

Control Label-Throttle

$

$

Currently unavailable

41

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

42

MTD 725-0201

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

43

MTD 725-0873

Key Switch
(Superseded to 925-0873)

$

$

Not available

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 753-0430

Kit-Control Housing Comp.

$

$

Not available

46

MTD 710-1020

Front Axle Bolt

$

$

Not available

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-0645

Front Wheel Ass'y. Comp.

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0632

Throttle Wire-53"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

55

MTD 746-0476A

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

56

MTD 751-0463

Cable Clamp

$

$

Not available

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

58

MTD 738-0144

Rear Axle Bolt
(Superseded to 938-0144)

$

$

Not available

59

MTD 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

60

MTD 734-1026

Rear Wheel Ass'y. Comp.

$

$

Not available

61

MTD 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

62

MTD 732-0417A

Spring Lever

$

$

Not available

63

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

64

MTD 736-0192

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, Qty 18

0

65

MTD 14760A

Link 4.58" Lg.

Variations

MTD 14760A-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

67

MTD 710-0892

Hex AB-Tap 1/4-.62" Lg.
(Superseded to 910-0892)

$

$

Not available

68

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

69

MTD 14764C

Index Plate

$8.49

$

Usually ships in 3-6 days

0

70

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

71

MTD 16106

Rear Height Adj. Ass'y.-R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y.-L.H.

Note: (Not Shown)

$

$

Not available

72

MTD 731-0891

Upper Battery Tray
(Superseded to 731-0891A)

$

$

Not available

73

MTD 16542A

Lower Battery Tray

$

$

Currently unavailable

74

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

75

MTD 16309A

Cable Brkt.

$

$

Not available

76

MTD 746-0628

Clutch Cable w/Spring-33"

$

$

Not available

77

MTD 750-0649

Spacer .23" I.D. x .30" O.D.

$

$

Not available

78

MTD 736-0370

Spr.-Wash. .206" I.D. x .448

$

$

Not available

79

MTD 16391

S.P. Bail Ass'y.

$

$

Not available

80

MTD 731-0354

Hub Cap

$

$

Not available

81

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

82

MTD 715-0247

Spring Pin Spir. 3/16" Dia. x 1" Lg.
(Superseded to 915-0247)

$

$

Not available

83

MTD 713-0311

#48 Chain 1/2" Pitch 50 Links
(Superseded to 913-0311)

Note: (Endless)

$31.99

$

Usually ships in 3-6 days

0

84

MTD 741-0180

Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

87

MTD 725-1276

12 Volt Battery
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

88

MTD 725-1283A

Wire Harness

$

$

Currently unavailable

89

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

90

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

91

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

92

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

93

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

94

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

95

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

96

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

97

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

98

MTD 710-0969

Truss Mach. Hi-Riser Tap-Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

99

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

101

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

MTD 750-0434

Spacer .375" I.D.

$6.99

$

Usually ships in 3-6 days

0

MTD 725-0298

Fuse 7 1/2 Amp
(Superseded to 925-0298)

Note: (Not Shown)

$

$

Not available
