MTD 1435a (41AY54NQ000) - Yard Machines Chainsaw General Assembly MTD1435 Parts Diagram

Chainsaw

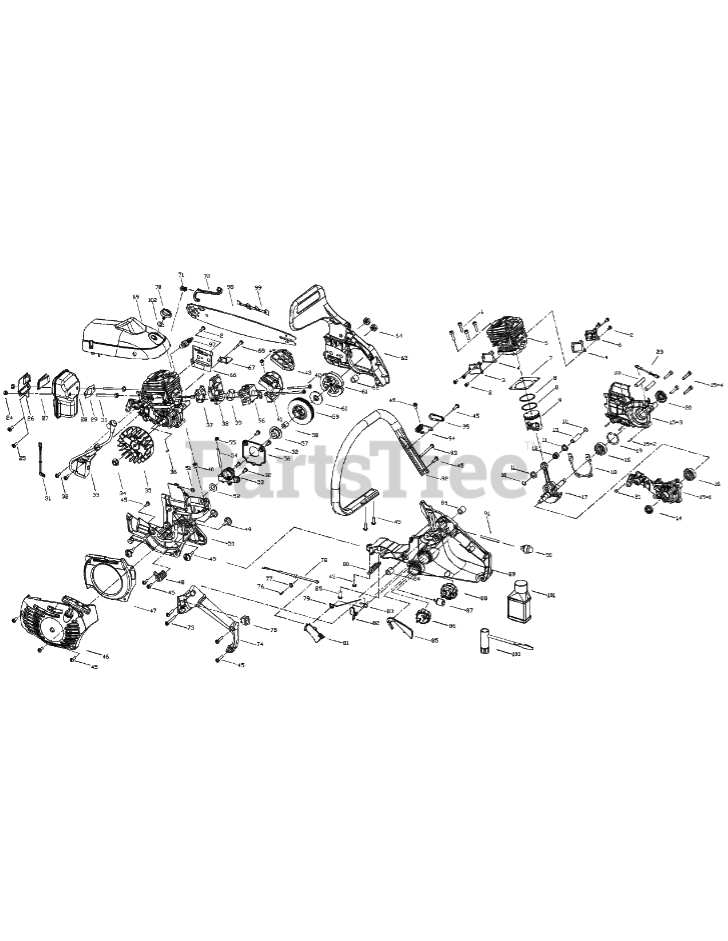

General Assembly MTD1435 Parts Diagram

  • Title

1

MTD 9SGEB-05-20

SCREW
(Superseded to MC-9SGEB-05-20)

$

$

Not available

2

MTD 9SKKB-04-10

SCREW

$

$

Not available

3

MTD 9067-310802

CAP
(Superseded to MC-9067-310802)

$

$

Not available

4

MTD 9014-310803

GASKET

$

$

Not available

5

MTD 9292-310801F

CYLINDER

$

$

Not available

6

MTD 9067-310801

CAP
(Superseded to MC-9067-310801)

$

$

Not available

7

MTD 9014-310801

GASKET

$

$

Not available

8

MTD 9189-310801A

PISTON RING

$

$

Currently unavailable

9

MTD 9290-311001

PISTON

$

$

Currently unavailable

10

MTD 9CA-10.3

RING

$

$

Not available

11

MTD 9131-310801

WASHER

$

$

Not available

12

MTD 9NR-K101411

ROLLER

$

$

Not available

13

MTD 9PC10-32

PIN, PISTON

$

$

Currently unavailable

14

MTD 9157-332101

SEAL
(Superseded to MC-9157-332101)

$

$

Not available

15

MTD 9228-310819

CLY CASE ASS'Y

$

$

Not available

15-1

MTD 9072-310802F

CLY CASE, LEFT

$

$

Currently unavailable

15-2

MTD 9PA-03-08S

PIN

$

$

Not available

15-3

MTD 9072-310801F

CLY CASE, RIGHT

$

$

Currently unavailable

15-4

MTD 9SKKB-05-27

SCREW

$

$

Not available

16

MTD 9DB-620101

BEARING

$

$

Not available

17

MTD 9228-310801-A

CRANK/ROD ASS'Y

$

$

Currently unavailable

18

MTD 9014-310802

GASKET

$

$

Not available

19

MTD 9CB-32

RING
(Superseded to MC-9CB-32)

$

$

Not available

20

MTD 9157-310801

SEAL

$

$

Not available

21

MTD 9059-311001

BUSH

$

$

Currently unavailable

22

MTD 9191-310802

SCREW
(Superseded to MC-9191-310802)

$

$

Not available

23

MTD 9010-311002

WIRE

$

$

Currently unavailable

24

MTD 9NCC-05U

NUT

$

$

Not available

25

MTD 9SKKB-05-14

SCREW
(Superseded to MC-9SKKB-05-14)

$

$

Not available

26

MTD 9014-310810

COVER, MESH

$

$

Not available

27

MTD 9016-310801

SPARK ARRESTER

$

$

Not available

28

MTD 9228-311005

MUFFLER ASS'Y

$

$

Currently unavailable

29

MTD 9014-310804

BAFFLE
(Superseded to MC-9014-310804)

$2.49

$

In Stock, only 1 left!

0

30

MTD 9191-310803

SCREW
(Superseded to MC-9191-310803)

$2.49

$

In Stock, only 1 left!

0

31

MTD 9010-311003

WIRE

$

$

Currently unavailable

32

MTD 9SKKB-04-14

SCREW
(Superseded to MC-9SKKB-04-14)

$

$

Not available

33

MTD 9288-310801

IGNITION ASS'Y

$

$

Currently unavailable

34

MTD 9NHC-08

NUT

$

$

Currently unavailable

35

MTD 9169-310801

FLYWHEEL ASS'Y
(Superseded to MC-9169-310801)

$

$

Not available

36

MTD 6221-830301

WOODRUFF KEY

$

$

Not available

37

MTD 9014-310805

SPACER
(Superseded to MC-9014-310805)

$

$

Not available

38

MTD 9082-311001

ISOLATER, CARBURETER

$

$

Currently unavailable

39

MTD 9014-310006

SPACER

$

$

Not available

40

MTD 9013-311003

RUBBER PLUG

$

$

Currently unavailable

41

MTD 9228-311006

AIR GUIDE ASS'Y

$

$

Currently unavailable

42

MTD 9SKKB-04-70

SCREW

$

$

Not available

43

MTD 9183-311201

SPONGE

$

$

Currently unavailable

45

MTD 9SKKBB05-18

SCREW
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

46

MTD 9228-311008

STARTER HOUSING ASS'Y

$

$

Currently unavailable

47

MTD 9211-311001

CAP, AIRWAY

$

$

Currently unavailable

48

MTD 9024-311001

SPRING

$

$

Currently unavailable

49

MTD 9191-311001

SCREW

$

$

Currently unavailable

50

MTD 9004-311001

BRACKET

$

$

Currently unavailable

51

MTD 9079-311002

BUSH

$

$

Currently unavailable

52

MTD 9WFB-10-18

SPACER

$

$

Not available

53

MTD 9228-310805

PUMP ASS'Y

$

$

Not available

54

MTD 9129-311005

PIPE

$

$

Currently unavailable

55

MTD 9154-310802

CONNECTOR
(Superseded to MC-9154-310802)

$

$

Not available

56

MTD 9072-310806

CAP
(Superseded to MC-9072-310806)

$

$

Not available

57

MTD 9073-310803

WORM
(Superseded to MC-9073-310803)

$

$

Not available

58

MTD 9NR-K101313

ROLLER

$

$

Not available

59

MTD 9200-310801

DRUM ASS'Y

$

$

Not available

60

MTD 9014-310807

WASHER
(Superseded to MC-9014-310807)

$

$

Not available

61

MTD 9228-311004

CLUTCH ASS'Y

$

$

Currently unavailable

62

MTD 9013-311002

RUBBER PLUG

$

$

Currently unavailable

63

MTD 9228-311007

BRAKE KIT ASS'Y

$

$

Currently unavailable

64

MTD 9NAZ-5/16-18

NUT
(Superseded to MC-9NAZ-5/16-18)

$

$

Not available

65

MTD 9014-310811

SPACER
(Superseded to MC-9014-310811)

$

$

Not available

66

MTD 9263-310801

CHAIN CATCH
(Superseded to MC-9263-310801)

$

$

Not available

67

MTD 9SKKB-05-32

SCREW

$

$

Not available

69

MTD 9067-311001

SHROUD

$

$

Currently unavailable

70

MTD 9134-310801

KNOB

$

$

Currently unavailable

71

MTD 9072-311001

HOLDER, CHOKE LEVER

$

$

Currently unavailable

72

MTD 9114-311001

LEVER, CHOKE

$

$

Currently unavailable

73

MTD 9SKKBB05-27

SCREW
(Superseded to MC-9SKKBB05-27)

$

$

Not available

74

MTD 9068-311002

HANDLE ASS'Y (L)

$

$

Currently unavailable

75

MTD 9022-310701

SWITCH

$

$

Not available

76

MTD 9SKKBB-04-10

SCREW

$

$

Currently unavailable

77

MTD 9WFZ-04-12

WASHER

$

$

Not available

78

MTD 9010-311001

CABLE, THROTTLE

$

$

Currently unavailable

79

MTD 9024-311005

SPRING

$

$

Currently unavailable

80

MTD 9024-310803

SPRING
(Superseded to MC-9024-310803)

$

$

Not available

81

MTD 9028-311001

TRIGGER, THROTTLE

$

$

Currently unavailable

82

MTD 9028-311002

TRIGGER, THROTTLE

$

$

Currently unavailable

83

MTD 9024-311003

SPRING

$

$

Currently unavailable

84

MTD 9013-311001

RUBBER PLUG

$

$

Currently unavailable

85

MTD 9028-310801

TRIGGER,RELEASE
(Superseded to MC-9028-310801)

$

$

Not available

86

MTD 9228-310809

OIL CAP ASS'Y

$

$

Not available

87

MTD 9182-310101

FUEL FILTER

$

$

Not available

88

MTD 9228-310821

FUEL CAP ASS'Y

$

$

Currently unavailable

89

MTD 9228-311003

HANDLE ASS'Y (R)

$

$

Currently unavailable

90

MTD 9142-310002

PRIMER

$

$

Not available

91

MTD 9129-311002

PIPE

$

$

Currently unavailable

92

MTD 9068-311001

HANDLE, FRONT

$

$

Currently unavailable

93

MTD 9SKKBY05-32

SCREW

$

$

Currently unavailable

94

MTD 9024-311002

SPRING

$

$

Currently unavailable

95

MTD 9043-311002

CAP, SPRING

$

$

Currently unavailable

96

MTD 9287-311001

CARBURETER WT-808A

$

$

Currently unavailable

97

MTD 9295-310801

SPARK PLUG CHAMPION R27C

$

$

Not available

98

MTD 9040-310833F

BAR

$

$

Currently unavailable

99

MTD 6220-210820

CHAIN

$

$

Currently unavailable

100

MTD 9042-310201

SPANNER
(Superseded to MC-9042-310201)

$

$

Not available

101

MTD 9066-310101

OIL

$

$

Currently unavailable

102

MTD 9014-311003

SPACER

$

$

Currently unavailable
