MTC 12 (UT-22082) - Homelite Tiller Transmission Parts Diagram

Tiller

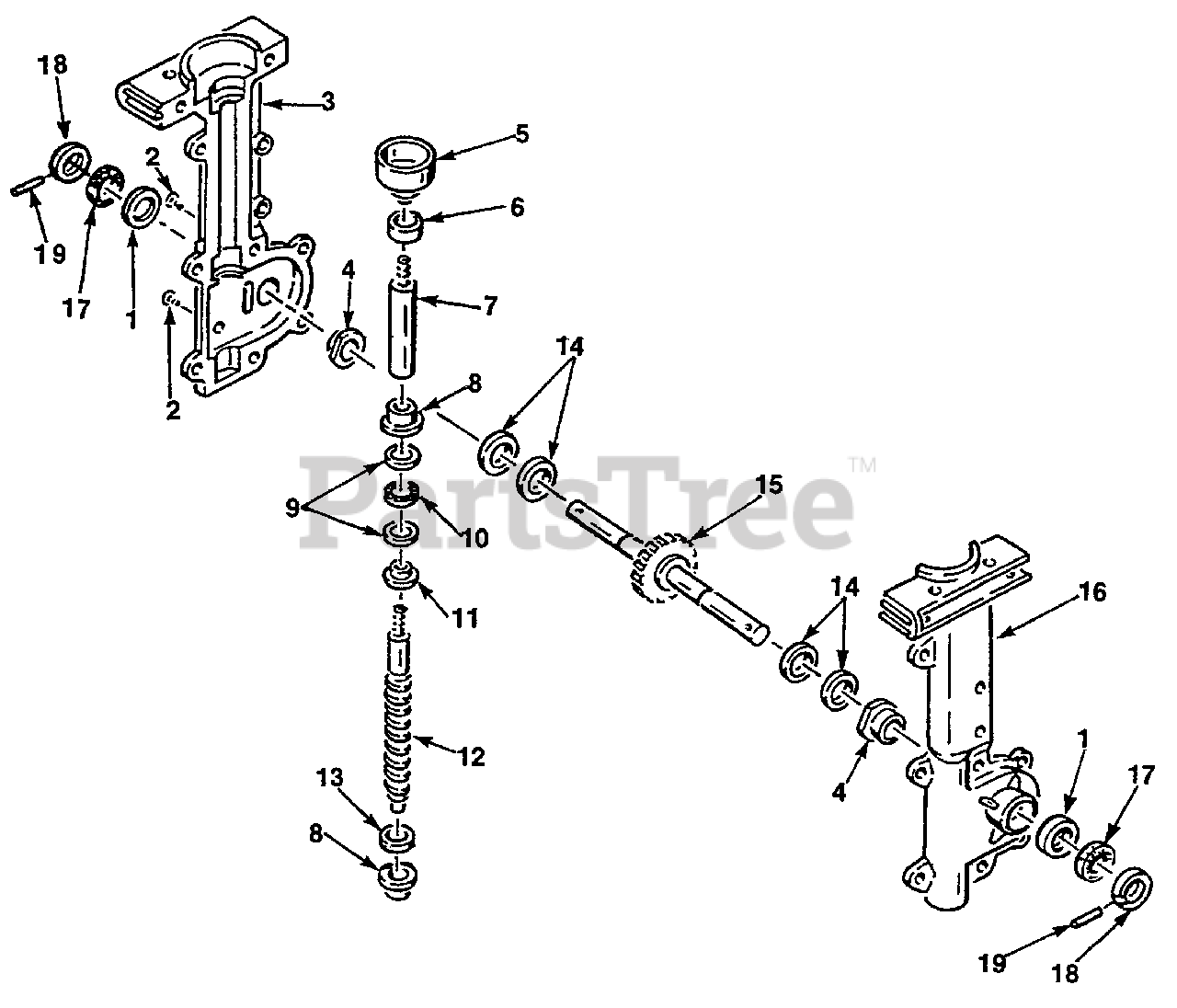

Transmission Parts Diagram

  • Title
1

Homelite 0107585

SEAL- Lip 3/4"
(Superseded to UP05900)

$

$

Not available

2

Homelite 0107580

SCREW- Slotted hex hd. 1/4-20 x 1/2"
(Superseded to UP05920)

$

$

Not available

3

Homelite 0107586

HOUSING- Reduction, R.H.

$

$

Currently unavailable

4

Homelite 0107579

BUSHING- Bronze, 3/4" I.D.
(Superseded to UP05902)

$

$

Not available

5

Homelite 0107529

DRUM & HUB- Clutch
(Superseded to UP05922)

$

$

Not available

6

Homelite 0107532

BEARING- Roller
(Superseded to UP05923)

$

$

Not available

7

Homelite 0107525

SHAFT- Connecting

$

$

Not available

8

Homelite 0107531

BUSHING- Bronze, 7/16"
(Superseded to UP05903)

$

$

Not available

9

Homelite 0107534

WASHER- Thrust Hardened
(Superseded to UP05924)

$

$

Not available

10

Homelite 0107535

BEARING- Needle. Thrust
(Superseded to UP05925)

$

$

Not available

11

Homelite 0107550

WASHER- Adaptor

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 0107526

SHAFT- Worm (16P)
(Superseded to UP05905)

$

$

Not available

13

Homelite 0107536

WASHER, Thrust 3/4 x 7/16"
(Superseded to UP05926)

$

$

Not available

14

Homelite 0107578

WASHER- Thrust 16 x 3/4 x 1 1/2"

$

$

Not available

15

Homelite 0107524

SHAFT- Tine, w/Worm Wheel
(Superseded to UP05907)

$

$

Not available

16

Homelite 0107584

HOUSING- Reduction, L.H.
(Superseded to UP05901)

$732.99

$

Usually ships in 3-7 days

0

17

Homelite 0107583

WASHER- Felt Seal 1/8 x 3/4 x 1 1/4"
(Superseded to UP05908)

$6.99

$

Usually ships in 3-7 days

0

18

Homelite 0107551

DIRT CAP- Silver Metal
(Superseded to UP05909)

$

$

Not available

19

Homelite 0107552

SCREW- Set, #10-32 x 1/4" Metal Dirt Cap

$

$

Not available
