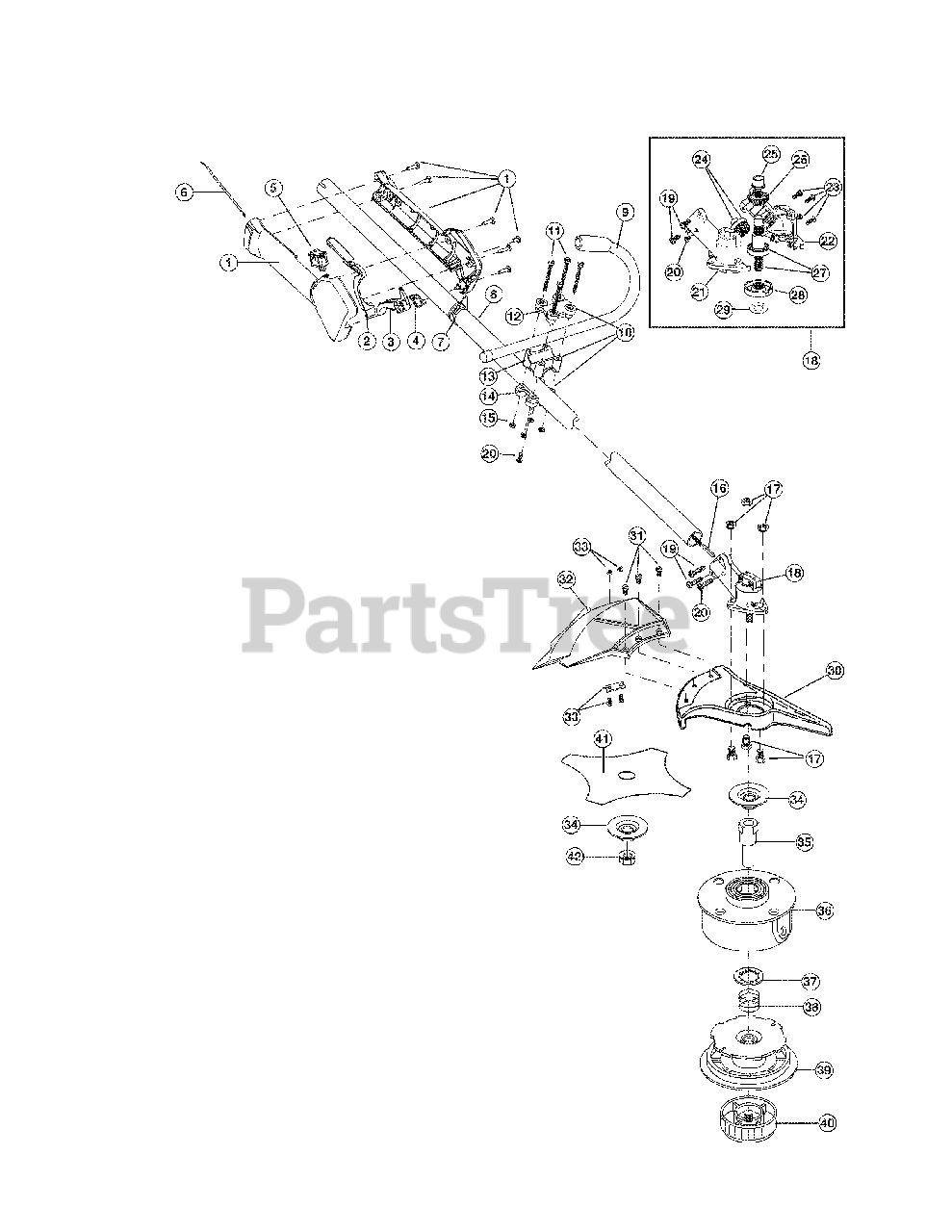

MT 780 (41AD780G977) - McCulloch String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182801

Throttle Housing Assembly (includes 2-4)
(Superseded to 753-05321)

$

$

Not available

2

MTD 791-182802

Throttle Trigger Lock-Out
(Superseded to 753-04340)

$

$

Not available

3

MTD 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 791-182405

Switch Assembly (includes 6)

$10.99

$

In Stock, Qty 12

0

6

MTD 753-04278

Throttle Cable Assembly
(Superseded to 746-04085A)

$10.99

$

In Stock, only 2 left!

0

7

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

8

MTD 791-147486

Upper Drive Shaft Housing Assembly

$100.99

$

Usually ships in 3-6 days

0

9

MTD 791-181099

J-Handle Assembly

$

$

Not available

10

MTD 791-683295

Handle Bracket Assembly (includes 13-15 & 20)

$45.99

$

Usually ships in 3-6 days

0

11

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

15

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

16

MTD 791-181817

Flexible Drive Shaft

$70.99

$

Usually ships in 3-6 days

0

17

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

18

MTD 791-182193

2 piece Gearbox Assembly (includes 19-29)

$99.99

$

In Stock, only 2 left!

0

19

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

21

MTD 791-182191

Left Housing

$

$

Not available

22

MTD 791-182192

Right Housing

$

$

Not available

23

MTD 791-182195

Gear Box Screw

$7.49

$

In Stock, Qty 20+

0

24

MTD 791-182194

Pinion Gear Assembly

$31.99

$

Usually ships in 3-6 days

0

25

MTD 791-182199

Output Shaft Bushing

$

$

Not available

26

MTD 791-182198

Output Shaft Gear

$

$

Not available

27

MTD 791-182197

Output Shaft Assembly (includes 25 & 26)

$

$

Not available

28

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 2 left!

0

29

MTD 753-04348

Palnut

$6.99

$

Usually ships in 3-6 days

0

30

MTD 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

31

MTD 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

32

MTD 791-683299

Shield Assembly (includes 33)

$

$

Not available

33

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

34

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 2 left!

0

35

MTD 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

36

MTD 791-683301

Outer Spool Assembly

$48.99

$

In Stock, Qty 6

0

37

MTD 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

38

MTD 791-610636

Spring
(Superseded to 791-610636B)

$10.99

$

In Stock, only 2 left!

0

39

MTD 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

40

MTD 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

41

MTD 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, only 4 left!

0

42

MTD 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

MTD 791-180014B

Blade Retaining Kit (includes 34 & 42)

Note: (NOT SHOWN)

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

Locking Rod Tool

Note: (NOT SHOWN)

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: (NOT SHOWN)

$38.99

$

Usually ships in 3-6 days

0

MTD 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: (NOT SHOWN) Optional Accessories

$31.99

$

In Stock, only 1 left!

0

MTD 791-147345B

Reel and Line Assembly

Note: (NOT SHOWN) Optional Accessories

$31.99

$

Usually ships in 3-6 days

0

MTD 791-147498

Bump Head Assembly (includes 35-40)

Note: (NOT SHOWN) Optional Accessories

$117.99

$

In Stock, only 1 left!

0
