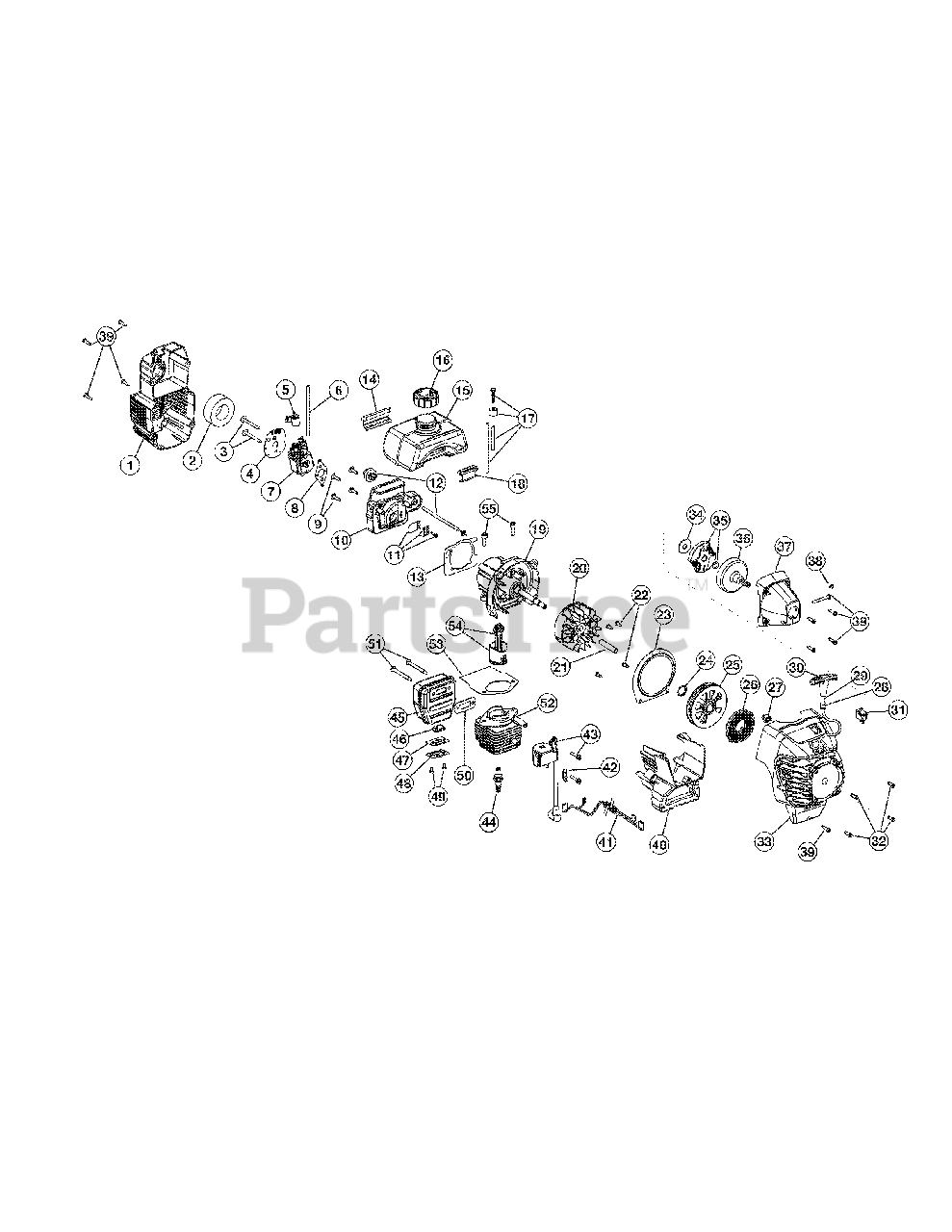

MT 767J (41AD76JG977) - McCulloch String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04810

Air Cleaner Cover Assembly (includes 2 & 39)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

5

MTD 753-04419

Choke Plate

$

$

Not available

5

MTD 753-04227

Choke Lever

$

$

Not available

6

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

7

MTD 753-04331

Carburetor Assembly (includes 8 & 17)
(Superseded to 753-04338)

$96.99

$

In Stock, only 1 left!

0

8

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 753-1196

Carb Mount Assembly (includes 9, 11 & 13)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

13

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04311

Fuel Tank Assembly (includes 6, 16 & 17)

$

$

Not available

16

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

17

MTD 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 10

0

18

MTD 791-145308

Front Mounting Pad

$

$

Not available

19

MTD 753-04470

Crank Case Service Assembly (includes 9)

$

$

Not available

20

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

21

MTD 791-181065

Spacer

$

$

Not available

22

MTD 753-1202

Pressure Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

23

MTD 753-04705

Pressure Plate

$

$

Not available

24

MTD 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

25

MTD 753-04823

Recoil Pulley Assembly

$33.99

$

In Stock, Qty 8

0

26

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

27

MTD 753-04824

Rope Guide Retainer

$

$

Not available

28

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

29

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-182673

Switch

$10.99

$

Usually ships in 3-6 days

0

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

33

MTD 753-04905

Starter Housing Assembly (includes 22-32 & 39)

$

$

Not available

34

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

35

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

36

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

37

MTD 753-04889

Clutch Cover Assembly (includes 38 & 39)

$21.99

$

Usually ships in 3-6 days

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

39

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

40

MTD 753-04702

Shroud Extension & Stand (includes 39)

$29.99

$

Usually ships in 3-6 days

0

41

MTD 753-04242

Wire Leads and Sleeve
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

42

MTD 791-611063

Ground Tab

$

$

Not available

43

MTD 753-04337

Module Assembly

$

$

Not available

44

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

45

MTD 753-04618

Muffler Assembly (includes 46-51)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

46

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

47

MTD 753-04690

Spark Arrestor Plate

$

$

Not available

48

MTD 753-04691

Spark Arrestor Hood

$

$

Not available

49

MTD 753-04315

Spark Arrestor Screw
(Superseded to 753-04110)

$

$

Not available

50

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

51

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

52

MTD 753-04814

Cylinder Assembly (includes 53 & 54)

$83.99

$

In Stock, only 1 left!

0

53

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

54

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

55

MTD 753-04361

Cylinder Bolt

$

$

Not available

MTD 753-1209

Piston Ring Set (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04822

Short Block Assembly (includes 9, 19, 43, 52-55) (NOT SHOWN)

$

$

Not available

MTD 791-181599

Clutch Springs (Qty. 2) (NOT SHOWN)

$11.99

$

Usually ships in 3-6 days
