MT 725 (41AD725G977) - McCulloch String Trimmer Boom and Trimmer Parts Diagram

String Trimmer

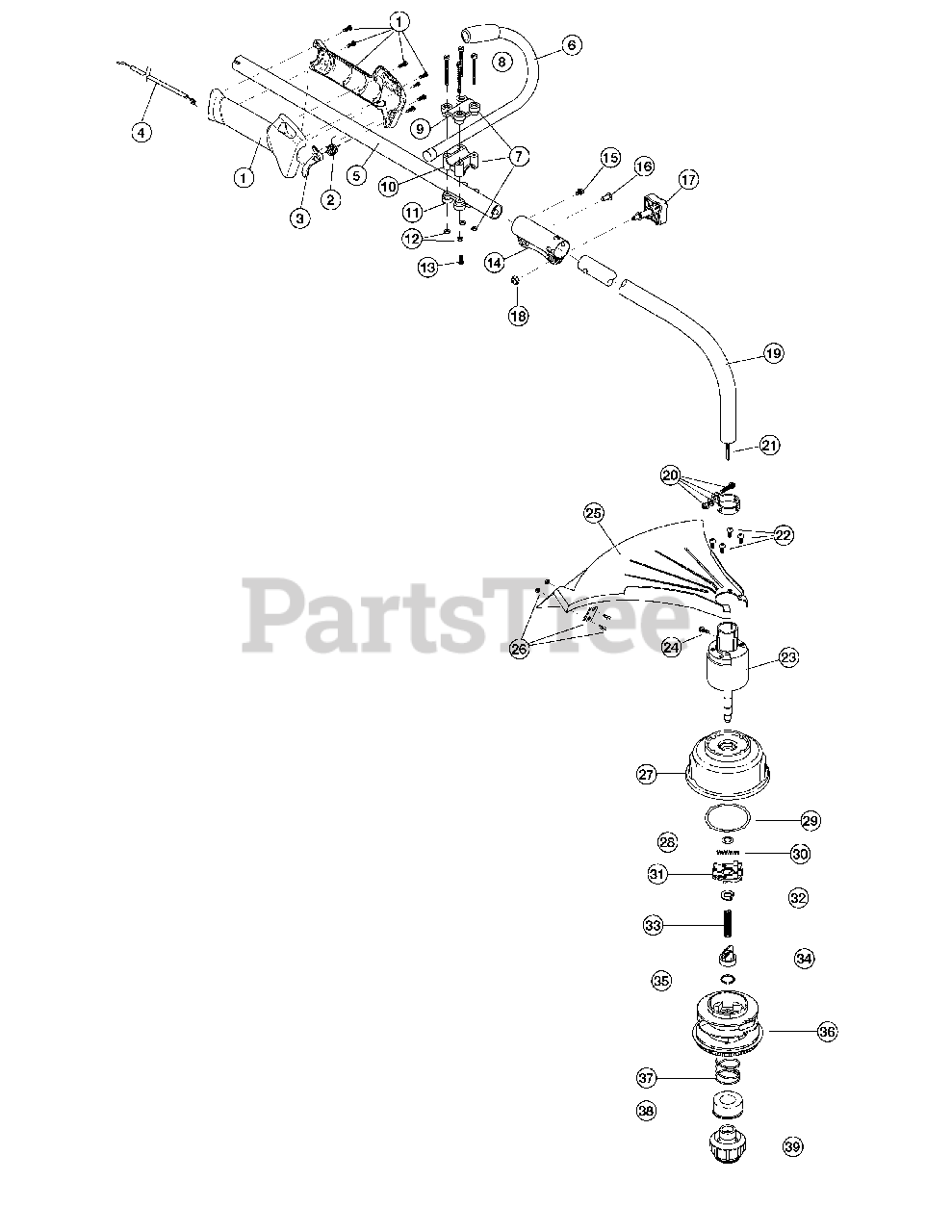

Boom and Trimmer Parts Diagram

  • Title

1

MTD 753-04294

Throttle Housing Assembly (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 753-04295

Throttle Trigger

$

$

Not available

4

MTD 753-04405

Throttle Cable

$7.99

$

Usually ships in 3-6 days

0

5

MTD 753-04344

Upper Drive Shaft Housing

$85.99

$

In Stock, only 3 left!

0

6

MTD 791-180687

J-Handle Assembly

$41.99

$

Usually ships in 3-6 days

0

7

MTD 791-683295

Handle Bracket Assembly (includes 8-13)

$45.99

$

Usually ships in 3-6 days

0

8

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

10

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

13

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

14

MTD 791-181616B

Split Boom Coupler (includes 15-18)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

15

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

16

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

17

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

18

MTD 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

19

MTD 753-1218

Lower Drive Shaft Housing

$105.99

$

Usually ships in 3-6 days

0

20

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

21

MTD 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

22

MTD 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

23

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

24

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

25

MTD 791-181659

Shield Assembly (includes 26)

$

$

Not available

26

MTD 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

27

MTD 791-181457

Outer Spool Assembly (includes 28)

$39.99

$

In Stock, only 1 left!

0

28

MTD 791-181458

Retainer

$4.49

$

In Stock, Qty 11

0

29

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

30

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

31

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

32

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

33

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

34

MTD 791-181462

Plunger

$

$

Not available

35

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

36

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

37

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

38

MTD 791-181467

Foam Seal

$

$

Not available

39

MTD 791-181468B

Bump Head Knob Assembly (includes 37 & 38)

$

$

Not available

MTD 791-181460B

Reel and Line Assembly NOT SHOWN

Note: Optional Accessories

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly NOT SHOWN

Note: Optional Accessories

$38.99

$

Usually ships in 3-6 days

0
