MT 705 (41AD705G977) - McCulloch String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

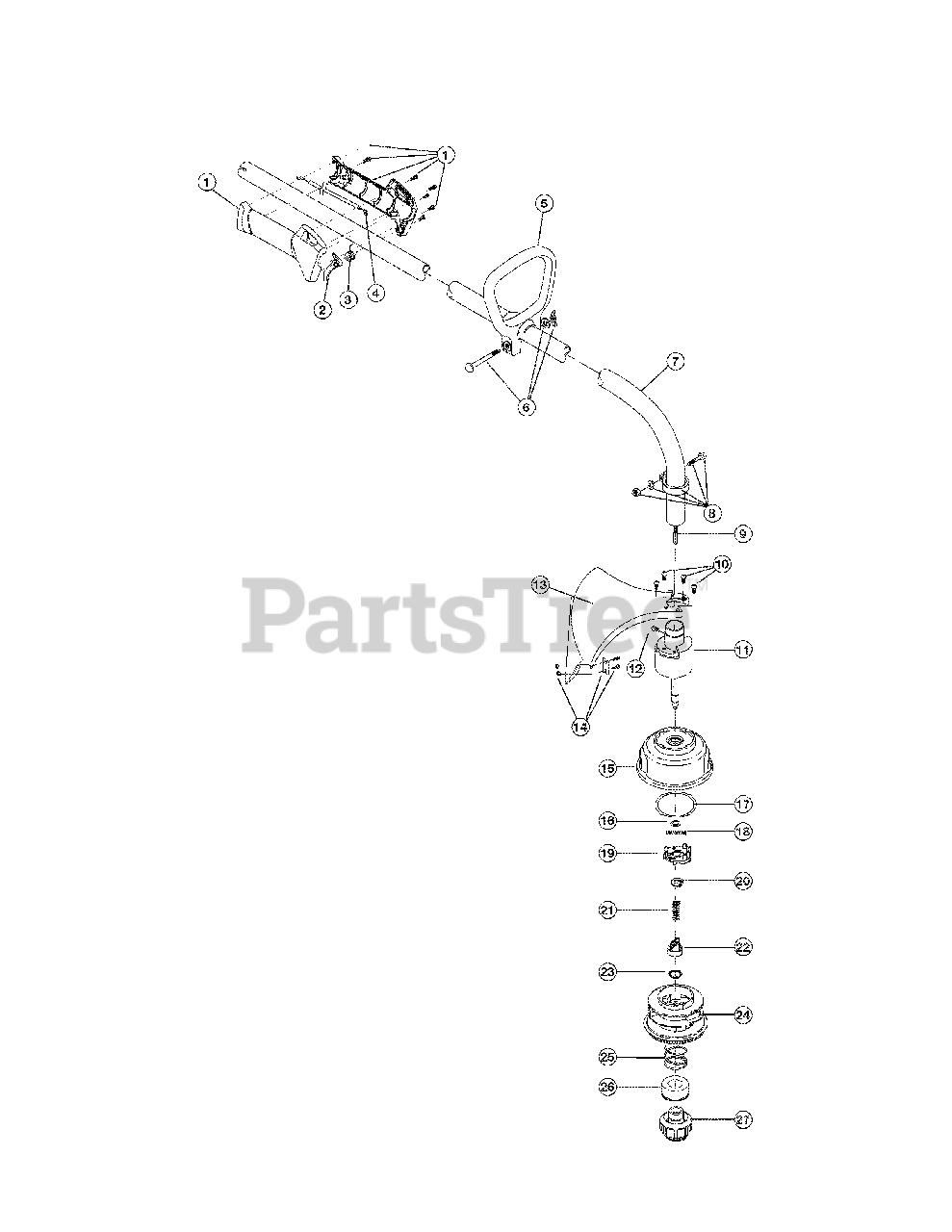

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04294

Throttle Housing Assembly (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 753-04295

Throttle Trigger

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle Assembly (includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

7

MTD 791-181555

Drive Shaft Housing Assembly (includes 9)

$

$

Not available

8

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

9

MTD 791-181608

Flexible Drive Shaft
(Superseded to 753-04117)

$64.99

$

Usually ships in 3-6 days

0

10

MTD 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

11

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

12

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

MTD 791-683274

Shield Assembly (includes 14)

$36.99

$

Usually ships in 3-6 days

0

14

MTD 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

15

MTD 791-181457

Outer Spool Assembly (includes 16)

$39.99

$

In Stock, only 1 left!

0

16

MTD 791-181458

Retainer

$4.49

$

In Stock, Qty 11

0

17

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

18

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

19

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

21

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

22

MTD 791-181462

Plunger

$

$

Not available

23

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

24

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

25

MTD 791-181465

Large Spring

$

$

Currently unavailable

26

MTD 791-181467

Foam Seal

$

$

Not available

27

MTD 791-181468

Bump Head Knob Assembly (includes 25 & 26)
(Superseded to 791-181468B)

$

$

Not available

MTD 791-181472

Replacement Line, 0.080 Diameter (8 - 10 ft. lenghts) (Not Shown)
(Superseded to 791-181460B)

Note: Optional Accessories

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181460

Reel and Line Assembly (Not Shown)
(Superseded to 791-181460B)

Note: Optional Accessories

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075

Shoulder Strap Assembly (Not Shown)
(Superseded to 791-682075B)

Note: Optional Accessories

$38.99

$

Usually ships in 3-6 days

0
