MT 700 (41AD700G929) - McCulloch String Trimmer (Home Depot) Boom Parts Diagram

String Trimmer

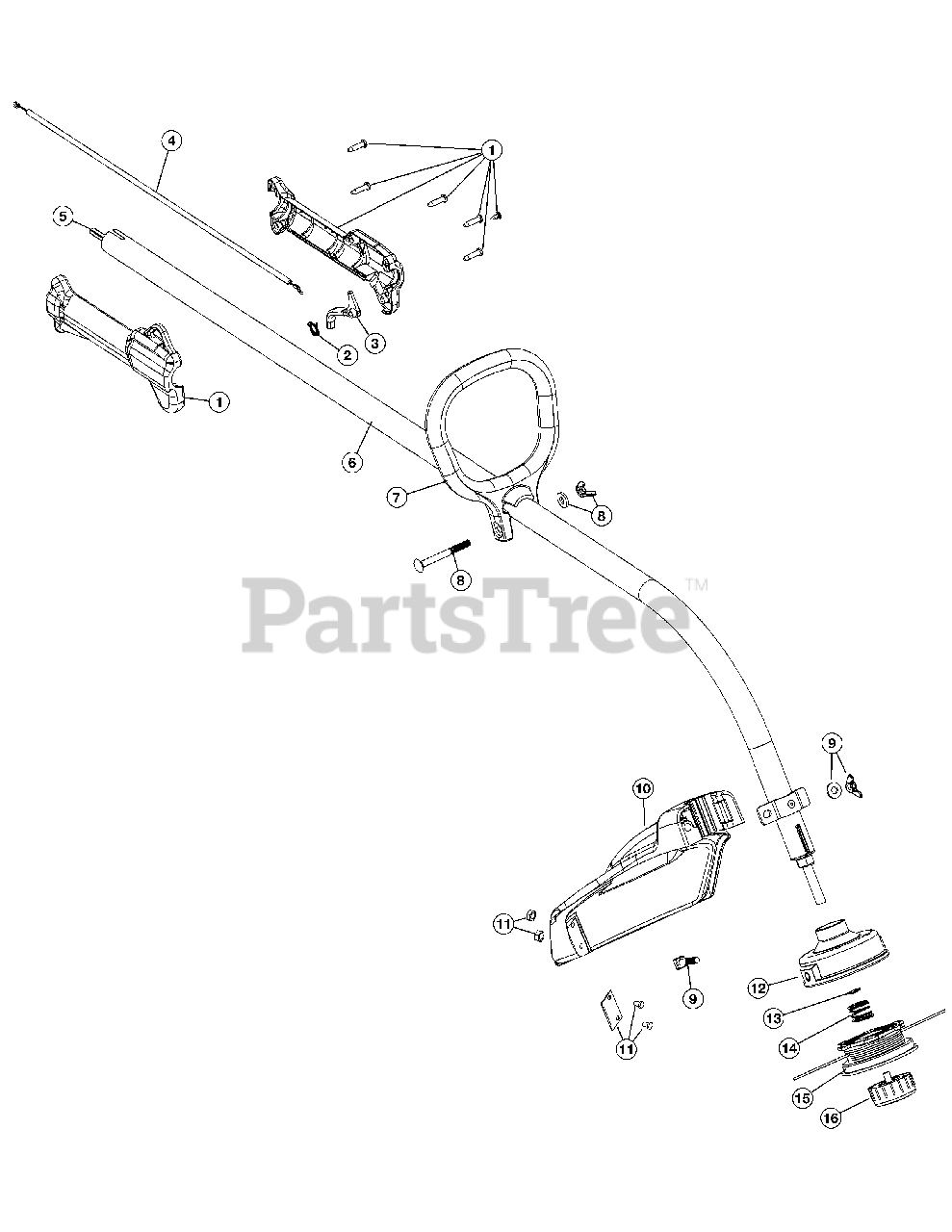

Boom Parts Diagram

  • Title

1

MTD 791-182069

Throttle Housing Assembly (includes 2 & 3)
(Superseded to 753-04927)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-181556

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

MTD 753-04901

Throttle Cable

$8.99

$

In Stock, only 1 left!

0

5

MTD 753-04280

Flexible Drive Shaft

$81.99

$

Usually ships in 3-6 days

0

6

MTD 753-05041

Drive Shaft Housing (includes 5 and 13)

$

$

Not available

7

MTD 791-153064

D-Handle Assembly (includes 8)

$

$

Not available

8

MTD 791-181587

D-Handle Hardware

$19.99

$

In Stock, only 1 left!

0

9

MTD 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

10

MTD 753-04283

Guard (includes 11)

$50.99

$

In Stock, only 1 left!

0

11

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

12

MTD 753-04284

Outer Reel (includes 13)

$28.99

$

In Stock, only 1 left!

0

13

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

14

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

15

MTD 753-1155

Inner Reel (line not included)

$22.99

$

In Stock, Qty 20+

0

16

MTD 791-153066B

Bump Knob

$13.99

$

In Stock, Qty 20+

0
