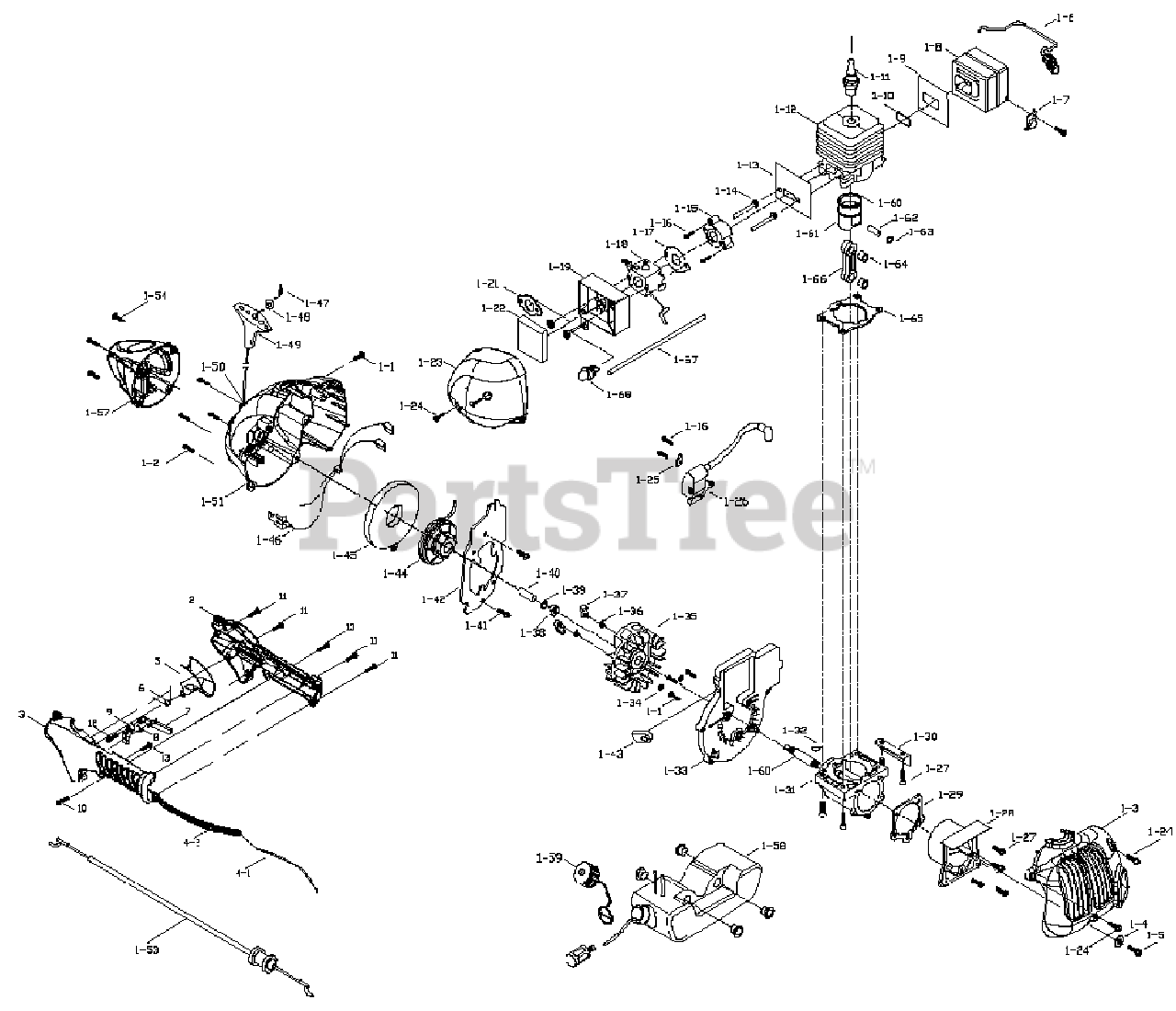

MT 33360E (41AD60EQ077) - McCulloch String Trimmer Engine Ass'y Parts Diagram

String Trimmer

Engine Ass'y Parts Diagram

  • Title

1-1

MTD MC-9SJKB-10/24-0.63

SCREW

$

$

Currently unavailable

1-2

MTD MC-9SGKBY10/24-0.625

WASHER, PLASTIC

$

$

Currently unavailable

1-3

MTD MC-9038-332601

COVER

$

$

Not available

1-4

MTD MC-9WFB-5.64-12

WASHER

$

$

Not available

1-5

MTD MC-9SJKB-10/14-1.375

SCREW

$

$

Currently unavailable

1-6

MTD MC-9024-330301

SPRING, MUFFLER

$

$

Not available

1-7

MTD MC-9104-330301

COVER

$

$

Not available

1-8

MTD MC-9200-330301

KIT, MUFFLER

$

$

Not available

1-9

MTD MC-9014-330304

GASKET, MUFFLER

$

$

Not available

1-10

MTD MC-9014-330303

GASKET

$

$

Not available

1-11

MTD MC-9295-320001

SPARK PLUG

$

$

Not available

1-12

MTD MC-9292-330301

CYLINDER

$

$

Not available

1-13

MTD MC-9014-330301

GASKET, MANIFOLD

$

$

Not available

1-14

MC-9STDBY10/24-2

SCREW

$

$

Not available

1-15

MTD MC-9014-330302

MANIFOLD, CARBURETOR

$

$

Not available

1-16

MTD MC-9SGKBC10/24-0.88

SCREW

$

$

Currently unavailable

1-17

MTD MC-9014-320004

GASKET, CARBURETOR

$3.49

$

In Stock, only 3 left!

0

1-18

MTD MC-9287-330302

CARBUTETOR ASS'Y

$

$

Not available

1-19

MTD MC-9081-330301

BOX, AIR

$

$

Not available

1-20

MTD MC-9NHZ-10/24

NUT

$

$

Not available

1-21

MTD MC-9014-330101

TEMINAL TAB

$

$

Not available

1-22

MTD MC-9252-320001

FILTER, AIR

$

$

Not available

1-23

MTD MC-9017-332603

COVER, AIR CLEANER

$

$

Currently unavailable

1-24

MTD MC-9SGKBY10/14-0.625

SCREW

$

$

Currently unavailable

1-25

MTD MC-9041-330301

TERMINAL

$

$

Currently unavailable

1-26

MTD MC-9288-310001

IGNITION ASSEMBLY

$

$

Not available

1-27

MTD MC-9SDKZJ10/24-0.688

SCREW

$

$

Currently unavailable

1-28

MTD MC-9070-320001

PLUG

$

$

Not available

1-29

MTD MC-9014-320002

GASKET

$

$

Not available

1-30

MTD MC-9017-330309

SHIELD, MUFFLER

$

$

Not available

1-31

MTD MC-9228-330302

C'CASE ASS'Y

$

$

Currently unavailable

1-32

MTD MC-9221-310001

KEY, FLYHEEL

$

$

Not available

1-33

MTD MC-9017-320002

SHROUD, ENGINE

$

$

Not available

1-34

MTD MC-9131-320003

RING

$

$

Not available

1-35

MTD MC-9169-320001

FLYWHEEL

$

$

Currently unavailable

1-36

MTD MC-9024-320001

SPRING

$

$

Not available

1-37

MTD MC-9072-320001

PAWL

$

$

Not available

1-38

MTD MC-9NC-7/16

NUT

$

$

Currently unavailable

1-39

MTD MC-9WFB-0.37

WASHER

$

$

Not available

1-40

MTD MC-9124-330301

KIT, SPACER, CLUTCH

$

$

Currently unavailable

1-41

MTD MC-9SGKBY8/16-0.46

SCREW

$

$

Currently unavailable

1-42

MTD MC-9187-332601

RETAINER, PULLEY

$

$

Not available

1-43

MTD MC-9012-330301

GROMMET

$

$

Not available

1-44

MTD MC-9299-330301

PULLEY, STARTER

$

$

Not available

1-45

MTD MC-9228-310111

PACKAGE, SPRING ASS'Y

$

$

Not available

1-46

MTD MC-9010-330301

WIRE ASS'Y,SWITCH

$

$

Not available

1-47

MTD MC-9194-320001

ROPE, STARTER

$

$

Not available

1-48

MTD MC-9014-320006

WASHER, NYLON

$

$

Not available

1-49

MTD MC-9068-320002

HANDLE, STARTER

$

$

Not available

1-50

MTD MC-9059-330301

GUIDE, ROPE

$

$

Not available

1-51

MTD MC-9017-3326XX

HOUSING (MTD YELLOW)

$

$

Currently unavailable

1-53

MTD MC-9010-332601

THROTTLE CABLE

$

$

Not available

1-54

MC-9SGKBB10/14-1

SCREW

$

$

Not available

1-55

MTD MC-9228-330308

KIT, CLUTCH

$

$

Not available

1-56

MTD MC-9228-330307

DRUM ASS'Y, CLUTCH

$

$

Not available

1-57

MTD MC-9017-332602

HOUSING, CLUTCH

$

$

Not available

1-58

MTD MC-9228-330309

TANK ASS'Y

$

$

Not available

1-59

MTD MC-9228-320006

CAP ASS'Y, FUEL TANK

$

$

Not available

1-60

MTD MC-9189-320001

RING, PISTON

$

$

Not available

1-61

MTD MC-9290-320001

PISTON

$

$

Not available

1-62

MTD MC-9115-320001

PIN

$

$

Not available

1-63

MTD MC-9131-320002

RING

$

$

Not available

1-64

MTD MC-9NB-F6491001

BEARING

$

$

Currently unavailable

1-65

MTD MC-9014-320001

GASKET, CYLINDER

$

$

Not available

1-66

MTD MC-9175-320001

ROD

$

$

Not available

1-67

MTD MC-9129-320002

HOSE

$

$

Not available

1-68

MTD MC-9142-310002

PRIMER

$

$

Not available

2

MTD MC-9068-332604

HOUSING HANDLE

$

$

Not available

3

MTD MC-9068-332603

HOUSING HANDLE

$

$

Not available

4-1

MTD MC-9010-332602

THROTTLE CABLE
(Superseded to MC-9010-330201)

$

$

Not available

4-2

MTD MC-9059-332602

HOSE

$

$

Currently unavailable

5

MTD MC-9028-332601

TRIGGER

$

$

Not available

6

MTD MC-9024-332601

SPRING

$

$

Not available

7

MTD MC-9176-332601

LIBERATE SHAFT

$

$

Not available

8

MTD MC-9024-332602

SPRING

$

$

Not available

9

MTD MC-9072-332601

LIBERATE CHUNK

$

$

Currently unavailable

10

MTD MC-6SDAB-05-08

SCREW

$

$

Not available

11

MTD MC-6SLABB03-12

SCREW

$

$

Not available

12

MTD MC-6SLABB3.5-10

SCREW

$

$

Not available

13

MTD MC-6SLABB03-08

SCREW

$

$
