MT 3310 (41BD310Q077) - McCulloch String Trimmer Carburetor Assembly (Walbro WT 434) Parts Diagram

String Trimmer

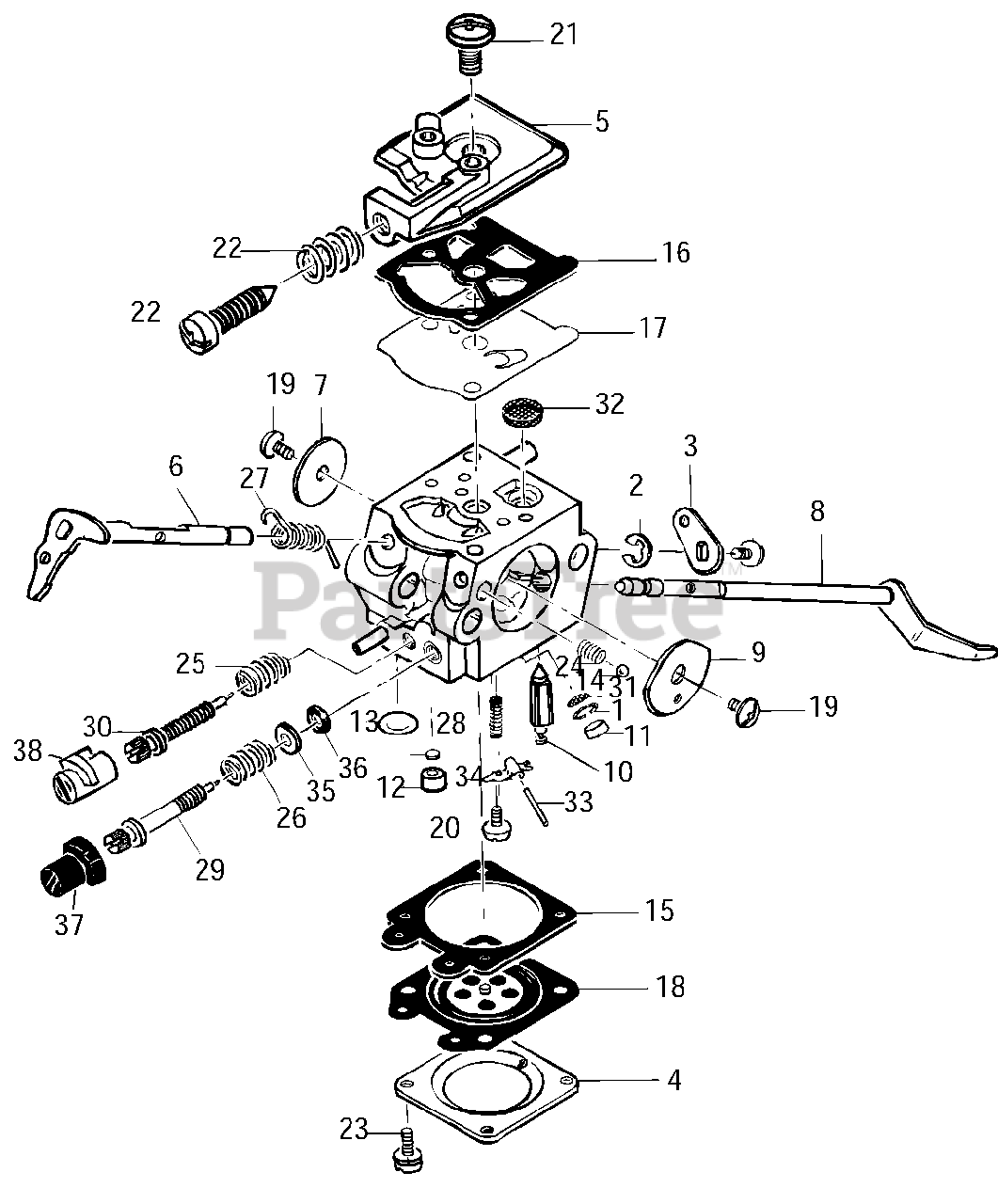

Carburetor Assembly (Walbro WT 434) Parts Diagram

  • Title

MTD MC-323602-03

Carburetor, Walbro WT 434

$

$

Not available

1

Ring, Screen Retainer

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

2

Ring, Shaft Retainer

$

$

Not available

3

Lever, Throttle

$

$

Not available

4

Cover, Metering Lever

$

$

Not available

5

MTD MC-300072-00

Cover, Fuel Pump

$

$

Currently unavailable

6

Shaft Asy, Throttle

$

$

Not available

7

Valve, Throttle

$

$

Not available

8

Shaft Asy, Choke

Note: 322363 - Kit, Choke Lever 40-999

$

$

Not available

9

Valve, Choke

Note: 322363 - Kit, Choke Lever 40-999

$

$

Not available

10

Valve, Inlet Needle

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

11

Seat Asy, Check Valve

$

$

Not available

12

Plug, Cup

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

13

Plug, Welch

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

14

Ball, Choke Friction

Note: 322363 - Kit, Choke Lever 40-999

$

$

Not available

15

Gasket, Metering Diaphragm

Note: 300457 - Kit, Major Repair A1117WT; 324460 - Kit, Gasket/Diaphragm B1106WT

$

$

Not available

16

Gasket, Fuel Pump

Note: 300457 - Kit, Major Repair A1117WT; 324460 - Kit, Gasket/Diaphragm B1106WT

$

$

Not available

17

Diaphragm, Fuel Pump

Note: 300457 - Kit, Major Repair A1117WT; 324460 - Kit, Gasket/Diaphragm B1106WT

$

$

Not available

18

Diaphragm Asy, Metering

Note: 300457 - Kit, Major Repair A1117WT; 324460 - Kit, Gasket/Diaphragm B1106WT

$

$

Not available

19

Screw, Valve

Note: 300457 - Kit, Major Repair A1117WT; 322363 - Kit, Choke Lever 40-999

$

$

Not available

20

Screw, Metering Lever Pin

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

21

Screw, Pump Cover

$

$

Not available

22

Spring, Idle Adjust Kit

$

$

Not available

23

Screw, Metering Cover

$

$

Not available

24

Spring, Choke Friction

Note: 322363 - Kit, Choke Lever 40-999

$

$

Not available

25

Spring, Idle Needle

$

$

Not available

26

Spring, High Speed Needle

$

$

Not available

27

Spring, Throttle Return

$

$

Not available

28

Spring, Metering Lever

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

29

Needle, High Speed

$

$

Not available

30

Needle, Low Speed

$

$

Not available

31

Screen, Check Valve

$

$

Not available

32

Screen, Fuel Inlet

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

33

Pin, Metering Lever

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

34

Lever, Metering

Note: 300457 - Kit, Major Repair A1117WT

$

$

Not available

35

Ring, High Speed

$

$

Not available

36

Washer, High Speed

$

$

Not available

37

MTD MC-323601-00

Cap, Limiter, High, Black

$

$

Currently unavailable

38

MTD MC-323602-00

Cap, Limiter, Low, White

$

$

Currently unavailable
