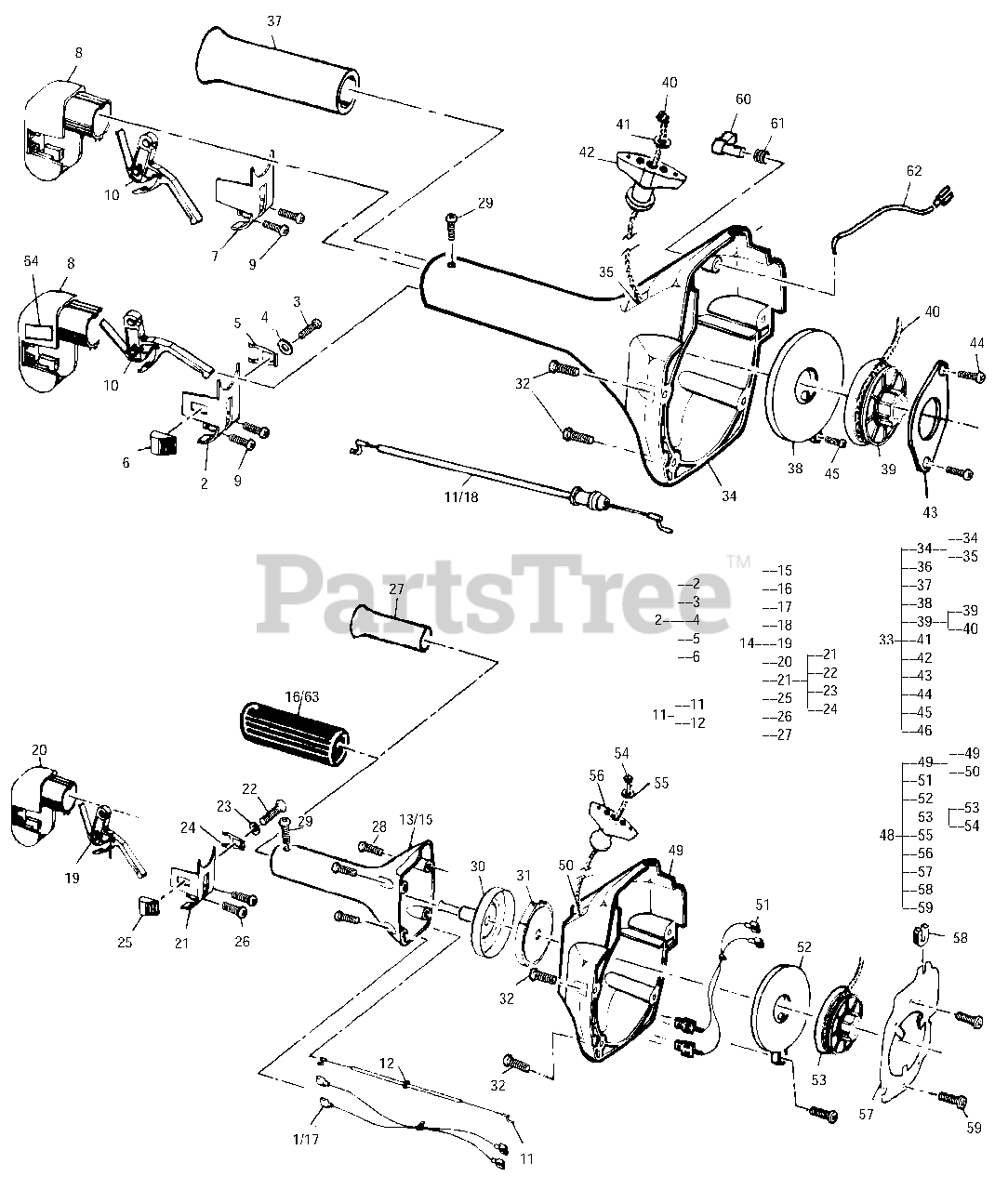

MT 3310 (41AD310Q077) - McCulloch String Trimmer Starter/Clutch Housing Assembly Parts Diagram

String Trimmer

Starter/Clutch Housing Assembly Parts Diagram

  • Title

1

MTD MC-301133-00

Wire Asy, Switch

Note: Clutch Drive Models Only (refer to Model Chart)

$

$

Not available

2

MTD MC-300064-00

Cover, Asy, Switch

Note: See Drawing Note 10

$

$

Not available

3

MTD MC-111069-00

Screw, 8-16 x .375 Plastite
(Superseded to 710-04539)

$

$

Not available

4

MTD MC-105497-00

Washer, Flat, .180 ID max

$

$

Not available

5

MTD MC-224246-00

Contact, Switch
(Superseded to MC-9051-331301)

$

$

Not available

6

MTD MC-224245-00

Button, Stop Switch

$

$

Not available

7

MTD MC-224914-00

Cover, Switch Housing

Note: See Drawing Note 10

$

$

Not available

8

MTD MC-224234-00

Trigger Hsg Asy, 22mm, 28/32

$

$

Not available

9

MTD MC-111061-00

Screw, 6-19 x .62 Fl Hd Plastite

$

$

Not available

10

MTD MC-300361-00

Trigger, Throttle

$

$

Not available

11

MTD MC-300149-01

Throttle Cable, Direct Drive
(Superseded to MC-9010-331001)

Note: Direct Drive Models Only (refer to Model Chart)

$20.99

$

Usually ships in 3-6 days

0

11

MTD MC-300372-01

Throttle Cable, Clutch Drive

Note: Clutch Drive Models Only (refer to Model Chart)

$

$

Currently unavailable

12

Nut, Speed, .188 ID

$

$

Not available

14

MTD MC-300782-61

Housing Asy, Clutch, 7/8 in.(Black)
(Superseded to 753-05106)

Note: Clutch Drive Models Only (refer to Model Chart)

$

$

Not available

15

MTD MC-224912-61

Housing, Clutch 7/8 (Black)

$

$

Currently unavailable

16

MTD MC-322140-00

Grip

$

$

Not available

17

MTD MC-301133-00

Wire Asy, Switch

$

$

Not available

18

MTD MC-300372-01

Cable Asy, Throttle

$

$

Currently unavailable

19

MTD MC-300361-00

Trigger, Throttle

$

$

Not available

20

MTD MC-224234-00

Trigger Hsg Asy, 22mm (28/32)

$

$

Not available

21

MTD MC-300064-00

Cover Asy, Switch

$

$

Not available

22

MTD MC-111069-00

Screw, 8-16 x .375 Plastite
(Superseded to 710-04539)

$

$

Not available

23

MTD MC-105497-00

Washer, Flat, .180 ID max

$

$

Not available

24

MTD MC-224246-00

Contact, Switch
(Superseded to MC-9051-331301)

$

$

Not available

25

MTD MC-224245-00

Button, Stop Switch

$

$

Not available

26

MTD MC-111061-00

Screw, 6-19x.62 Fl Hd Plast

$

$

Not available

27

MTD MC-322234-00

Sleeve, Protecting

$

$

Not available

28

MTD MC-224919-00

Screw, 10-14 x 1.0 Pn Hd
(Superseded to 710-04286)

$

$

Not available

29

MTD MC-111070-00

Screw, 12-11 x .5 Pn Hd Torx
(Superseded to 710-04540)

$

$

Not available

30

MTD MC-302106-00

Drum, Clutch, Heat Treated

Note: Clutch Drive Models Only (refer to Model Chart)

$

$

Not available

31

MTD MC-300459-00

Kit, Clutch

Note: Clutch Drive Models Only (refer to Model Chart)

$

$

Not available

32

MTD MC-111054-00

Screw, 10-24 x .625

$

$

Not available

33

MTD MC-224917-61

Starter Asy (Black) Direct Drive

Note: Direct Drive Models Only (refer to chart on page 1); Represents black asy/DD 22400128-96

$

$

Not available

34

MTD MC-224247-61

Housing/Eyelet, Starter DD (Black) 1

$

$

Currently unavailable

35

Rope Guide

$

$

Not available

36

MTD MC-301135-00

Wire Asy, Switch

Note: Represents DD/On/Off switch; 22400128-11; 12400128-25; 12400128-49; 12400128-59; 12400128-61

$

$

Not available

37

MTD MC-322234-00

Sleeve, Protecting

$

$

Not available

38

MTD MC-300475-00

Spring, Starter Rewind

$

$

Not available

39

MTD MC-9299-330301

New Direct Drive Drum/Rope Asy

Note: Direct Drive Models Only (refer to Model Chart)

$

$

Not available

40

MTD MC-323131-00

Rope, Starter, 46 in.

$

$

Not available

41

MTD MC-218941-00

Washer, Nylon

$

$

Not available

42

MTD MC-216792-00

Handle Starter

$

$

Not available

43

MTD MC-322362-00

Pulley, Retained, Direct Drive

$

$

Not available

44

MTD MC-223357-00

Screw, 8-16 Plastite
(Superseded to 710-04541)

$

$

Not available

45

MTD MC-322027-00

Screw, Spring Retainer

$

$

Not available

48

MTD MC-224916-61

Starter Asy Clutch Drive (Black)

Note: Clutch Drive Models Only (refer to chart on page 1); Represents black asy/CD MT3311; 22400132-86; 22400132-93

$

$

Not available

49

MTD MC-224240-61

Housing, Starter Cl Dr (Black)

$

$

Not available

50

Rope Guide

$

$

Not available

51

MTD MC-301134-00

Wire Asy, Starter Hsg, Clutch Dr

$

$

Not available

52

MTD MC-300475-00

Spring Asy, Package

$

$

Not available

53

MTD MC-300872-00

Drum/Rope Asy

$

$

Not available

54

MTD MC-323131-00

Rope, Starter, 46 in.

$

$

Not available

55

MTD MC-218941-00

Washer, Nylon

$

$

Not available

56

MTD MC-216792-00

Handle, Starter

$

$

Not available

57

MTD MC-224927-00

Plate, Baffle, Clutch Drive

$

$

Not available

58

MTD MC-215533-01

Grommet, H/T Lead
(Superseded to MC-9012-330301)

$

$

Not available

59

MTD MC-223357-00

Screw, 8-16 Plastite
(Superseded to 710-04541)

$

$

Not available

60

MTD MC-222914-00

Button, Stop

Note: See Drawing Note 10

$

$

Not available

61

MTD MC-222913-00

Spring, Stop Button

Note: See Drawing Note 10

$

$

Not available

62

MTD MC-222926-00

Wire Asy, Switch

Note: See Drawing Note 10

$

$

Not available

63

MTD MC-322140-00

Grip

Note: Clutch Drive Models Only (refer to Model Chart)

$

$

Not available
