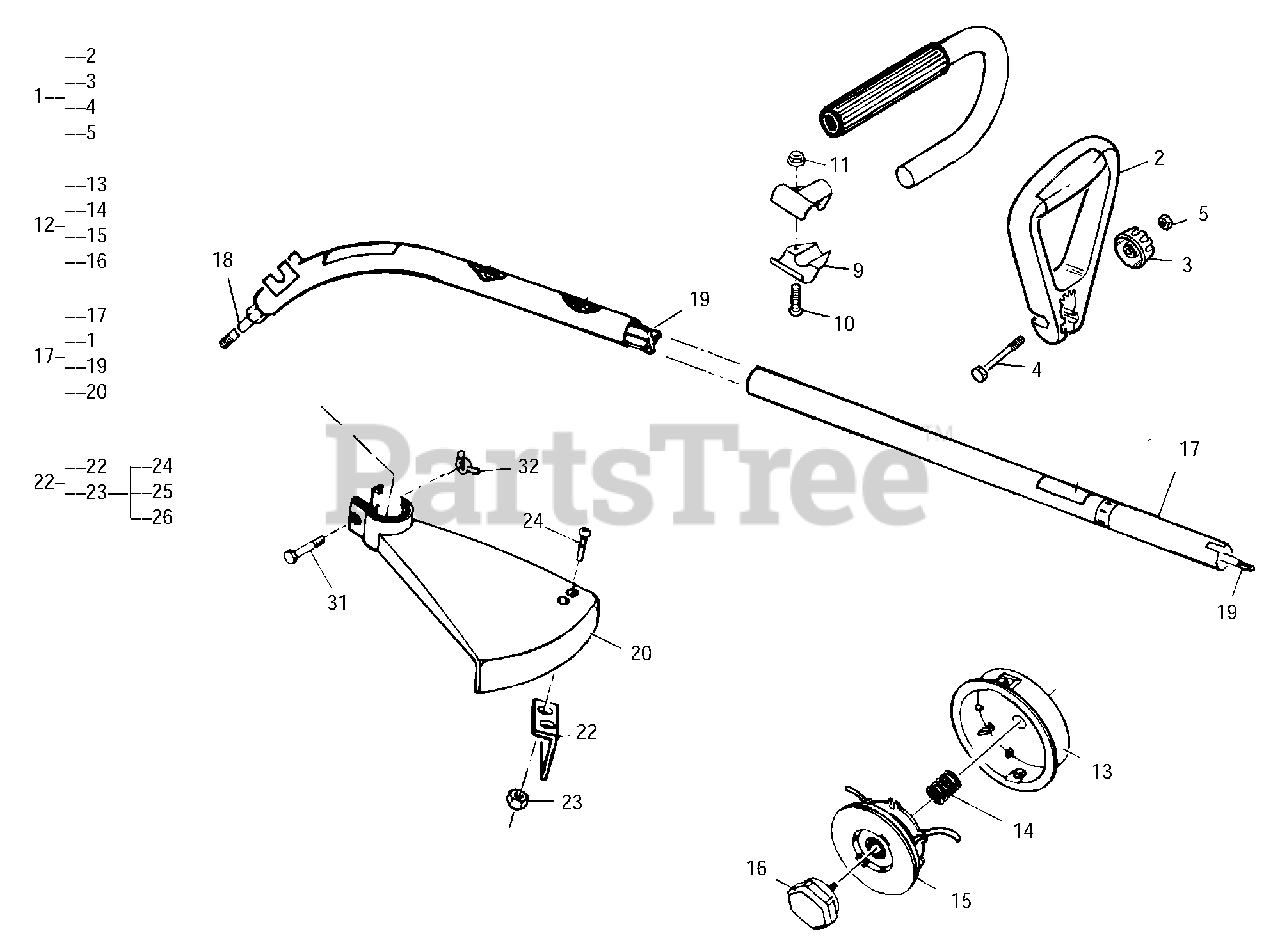

MT 3310 (41AD310Q077) - McCulloch String Trimmer Shaft / Handle / Stringhead Assembly Parts Diagram

String Trimmer

Shaft / Handle / Stringhead Assembly Parts Diagram

  • Title

1

MTD MC-300834-00

Handle, Delta Kit

Note: See Drawing Note 3

$

$

Not available

2

Assist Handle w/Cap Asy

$

$

Not available

3

Knob

$

$

Not available

4

MTD MC-9075-99

Bolt, 1/4 in.-20 x 2.5 Hx Cap
(Superseded to 753-05174)

$

$

Not available

5

MTD MC-13035-99

Nut, 1/4 in.-20 x .226T

$

$

Not available

9

MTD MC-215337-00

Clamp, Handle

Note: See Drawing Note 4

$

$

Not available

10

MTD MC-217935-00

Screw
(Superseded to 710-04549)

Note: See Drawing Note 4

$

$

Not available

11

MTD MC-218315-00

Nut, 10-24

Note: See Drawing Note 4

$

$

Not available

12

MTD MC-300651-00

Kit, Stringhead, Small

$

$

Not available

13

MTD MC-322025-00

Housing/Eyelet Asy w/Collar
(Superseded to MC-9228-331007)

$

$

Not available

14

MTD MC-324089-00

Spring, Mc C Stringhead

$

$

Not available

15

MTD MC-300688-00

Kit, Line on Spool, M-Sm
(Superseded to MC-9228-331009)

$

$

Not available

16

MTD MC-300736-01

Kit, Knob Asy, Small
(Superseded to MC-9228-331011)

$13.99

$

In Stock, only 2 left!

0

17

MTD MC-300429-00

Housing Asy, Outer, 44"

Note: 44" Shaft Models Only (refer to chart on page 1)

$

$

Not available

18

Clip, Spring External

$

$

Not available

17

MTD MC-300424-00

Housing Asy, Outer, 48"

Note: 48" Shaft Models Only (refer to Model Chart)

$

$

Not available

18

Clip, Spring External

$

$

Not available

19

MTD MC-301023-00

Shaft, Flex, Plus Clip, 44"

Note: 44" Shaft Models Only (refer to Model Chart)

$

$

Not available

19

MTD MC-301024-00

Shaft, Flex, Plus Clip, 48"
(Superseded to MC-9111-331101)

Note: 48" Shaft Models Only (refer to Model Chart)

$

$

Not available

20

MTD MC-224062-00

Shield Asy, Grass, R, 17in.
(Superseded to 753-05128)

$46.99

$

Usually ships in 3-6 days

0

21

MTD MC-300626-00

Kit, Knife

$

$

Not available

22

Cutter

$

$

Not available

23

Nut, Lock 10-24 Hex

$

$

Not available

24

Screw, 10-24 x .50 Torx

$

$

Not available

31

MTD MC-216595-00

Screw, M6 x 1.0 Hex
(Superseded to MC-9SXDB-06-50)

$

$

Not available

32

MTD MC-111102-00

Nut, Wing M6 x 1.0
(Superseded to MC-9NBB-06)

$

$

Not available
