MT 3310 (41AD310Q077) - McCulloch String Trimmer Powerhead Assembly Parts Diagram

String Trimmer

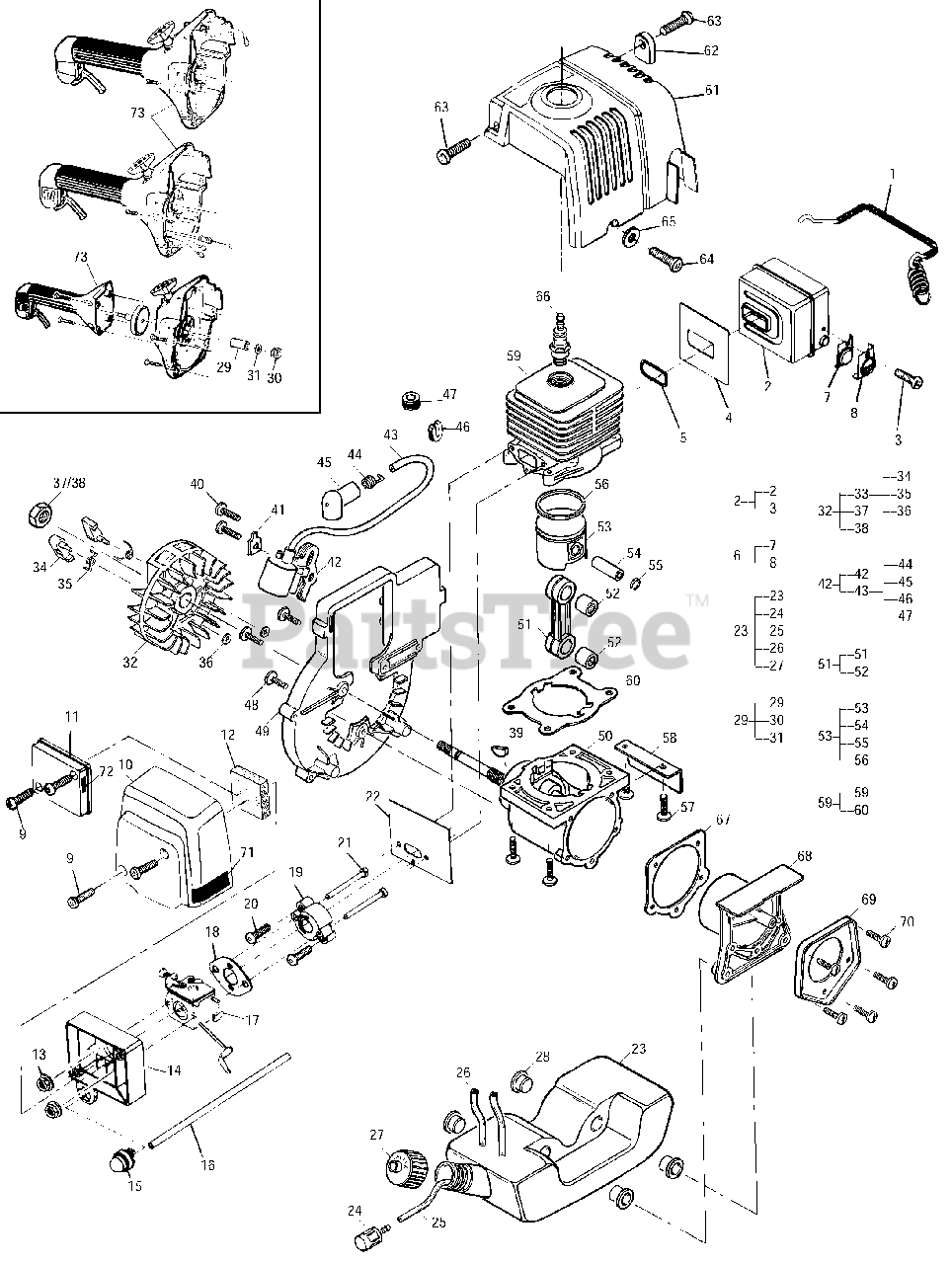

Powerhead Assembly Parts Diagram

  • Title

1

MTD MC-224044-00

Spring, Muffler

$

$

Not available

2

MTD MC-224034-00

Kit, Muffler
(Superseded to MC-9200-330301)

$

$

Not available

3

MTD MC-111072-00

Screw, 8-18 x .31 Pn Dh Sl Torx

$

$

Not available

4

MTD MC-224228-00

Gasket, Muffler
(Superseded to MC-9014-330304)

$

$

Not available

5

MTD MC-224922-00

Gasket, Exhaust Port
(Superseded to MC-9014-330303)

$

$

Not available

6

MTD MC-302424-00

Kit, Spark Arrester
(Superseded to 753-05109)

$

$

Not available

7

MTD MC-224040-00

Screen, Spark Arrester

$

$

Not available

8

MTD MC-322032-00

Cover, Spark Arrester

$

$

Currently unavailable

9

MTD MC-111055-00

Screw, 10-24 x .625, Plast

$

$

Not available

10

MTD MC-224236-00

Cover, Air Cleaner, Large (Black)

Note: See Drawing Note 6

$

$

Not available

11

MTD MC-224237-00

Cover, Air Cleaner, Small (Black)
(Superseded to MC-9038-331002)

Note: See Drawing Note 7

$

$

Not available

12

MTD MC-224239-00

Filter, Air

$

$

Not available

13

MTD MC-111058-00

Nut, 10-24 Hex, Flange

$

$

Not available

14

MTD MC-224238-00

Box, Air (Blk)
(Superseded to MC-9081-330301)

Note: See Drawing Note 6

$

$

Not available

15

MTD MC-224242-02

Primer, Remote

$22.99

$

In Stock, Qty 17

0

16

MTD MC-225163-00

Hose, Fuel Return

$

$

Not available

17

Carburetor w/Choke

Note: See "Shaft / Handle / Stringhead Assembly"

$

$

Not available

18

MTD MC-218933-00

Gasket, Carburetor
(Superseded to MC-9014-320004)

$3.49

$

In Stock, only 3 left!

0

19

MTD MC-224041-02

Insulator, Carburetor
(Superseded to MC-9014-330302)

$

$

Not available

20

MTD MC-111053-00

Screw, 10-24 x .88 Thd Form
(Superseded to 710-04292)

$

$

Not available

21

MTD MC-111057-00

Screw, 10-24 Spl
(Superseded to 710-04556)

$

$

Not available

22

MTD MC-322031-00

Gasket, Manifold
(Superseded to MC-9014-330301)

$

$

Not available

23

MTD MC-302349-00

Tank, Fuel (Natural)

$

$

Not available

24

MTD MC-216985-00

Filter, Fuel
(Superseded to MC-9182-310001)

$

$

Not available

25

MTD MC-225162-00

Hose, Fuel

$

$

Not available

26

MTD MC-225163-00

Hose, Fuel Return

$

$

Not available

27

MTD MC-223508-00

Cap, Fuel, w/Retainer

$

$

Not available

28

MTD MC-322105-00

Isolator, Fuel Tank

$

$

Not available

29

MTD MC-301114-00

Kit, Spacer, Clutch

Note: Clutch Drive Models Only (refer to "Model Chart")

$

$

Not available

30

MTD MC-322847-00

Nut, Hex, 7/16-20

$

$

Not available

31

MTD MC-322844-00

Washer, Shaft

$

$

Not available

32

MTD MC-301352-01

Kit, Flywheel, 28/32

$

$

Not available

33

MTD MC-550001-00

Kit, Pawls/Flywheel

$

$

Not available

34

Pawl, Starter

$

$

Not available

35

Spring, Starter Pawl

$

$

Not available

36

Ring, Retainer

$

$

Not available

37

MTD MC-111085-00

Nut, Direct Drive

Note: Direct Drive Models Only (refer to "Model Chart")

$

$

Not available

38

MTD MC-322847-00

Nut, 7/16-20, Clutch Drive

Note: Clutch Drive Models Only (refer to "Model Chart")

$

$

Not available

39

MTD MC-102164-00

Key, Flywheel

$

$

Not available

40

MTD MC-111053-00

Screw, 10-24 x .88 Thd Form
(Superseded to 710-04292)

$

$

Not available

41

MTD MC-300321-00

Terminal Tab

Note: See Drawing Note 8

$

$

Currently unavailable

42

MTD MC-302138-00

Ignition Asy

$

$

Not available

43

MTD MC-223884-00

Kit, Spark Plug Wire

$

$

Not available

44

MTD MC-102556-00

Connector, Spark

$

$

Currently unavailable

45

MTD MC-95266-00

Boot, Spark Plug

$

$

Currently unavailable

46

MTD MC-215533-01-00

Grommet, H/T Lead, Split

Note: Clutch Drive Models Only (refer to "Model Chart")

$

$

Currently unavailable

47

MTD MC-110995-00

Grommet, S/Plug Wire

Note: Not Used On These Models

$

$

Currently unavailable

48

MTD MC-111067-00

Screw, 10-24x.63 Sl Tor Tp
(Superseded to 710-04287)

$

$

Not available

49

MTD MC-224042-00

Shroud, Engine

$

$

Not available

50

MTD MC-224701-00

Short Block Asy, Direct Drive

Note: Direct Drive Models Only (refer to "Model Chart")

$

$

Not available

C'case Asy

$

$

Not available

C'case, Machined

$

$

Not available

Bearing 6202

$

$

Not available

Bearing 6202RS

$

$

Not available

Seal

$

$

Not available

Spacer

$

$

Not available

O-ring

$

$

Not available

50

MTD MC-224703-00

Short Block Asy, Clutch Drive

Note: Clutch Drive Models Only (refer to "Model Chart")

$

$

Not available

C'shaft Asy

$

$

Not available

C'case, Machined

$

$

Not available

Bearing 6202

$

$

Not available

Bearing 6202RS

$

$

Not available

Seal

$

$

Not available

Spacer

$

$

Not available

O Ring

$

$

Not available

51

Rod, Connecting Asy

$

$

Not available

52

Bearing

$

$

Not available

53

Piston, 28cc Aluminum

Note: 28cc Models Only (refer to "Model Chart")

$

$

Not available

54

Pin, C'shaft Piston

$

$

Not available

55

Ring, Retaining

$

$

Not available

56

Ring, Piston, 35mm

$

$

Not available

53

Piston, 32cc Aluminum

Note: 32cc Models Only (refer to "Model Chart")

$

$

Not available

54

Pin, C'shaft Piston

$

$

Not available

55

Ring, Retaining

$

$

Not available

56

Ring, Piston

$

$

Not available

57

MTD MC-111065-00

Screw, 10-24 x .688 Tri Rnd
(Superseded to 710-04536)

$

$

Not available

58

MTD MC-322030-00

Shield Muffler

$

$

Not available

59

MTD MC-300452-00

Cylinder/Gasket, 28cc Chrome

Note: 28cc Models Only (refer to "Model Chart")

$

$

Currently unavailable

60

MTD MC-224022-00

Gasket, Cylinder
(Superseded to MC-9014-320001)

$

$

Not available

59

MTD MC-300453-00

Cylinder/Gasket, 32cc Chrome

Note: 32cc Models Only (refer to "Model Chart")

$

$

Currently unavailable

60

MTD MC-224022-00

Gasket, Cylinder
(Superseded to MC-9014-320001)

$

$

Not available

61

MTD MC-224235-00

Cover, Cylinder/Muffler (Black)

$

$

Not available

62

MTD MC-322210-00

Washer, Plastic

$

$

Not available

63

MTD MC-111067-00

Screw, 10-24 x .63 Sl Torx Tp
(Superseded to 710-04287)

$

$

Not available

64

MTD MC-111068-00

Screw, 10-14 x 1.38 Taptite
(Superseded to 710-04293)

$

$

Not available

65

MTD MC-93469-00

Washer, .469OD/.222ID
(Superseded to MC-9WFB-5.64-12)

$

$

Not available

66

MTD MC-92879-00

Spark Plug, RDJ8J

$

$

Not available

67

MTD MC-224023-00

Gasket, C'case
(Superseded to MC-9014-320002)

$

$

Not available

68

MTD MC-224024-01

Plug, C'case

$

$

Not available

69

MTD MC-322437-90

Plate, C'case, Coated Finish

$

$

Not available

70

MTD MC-111065-00

Screw, 10-24 x .688 Tri Rnd
(Superseded to 710-04536)

$

$

Not available

71

Label, Choke (Vertical)

Note: See Drawing Note 7

$

$

Not available

72

Label, Staring Inst (Eng)

Note: for models with slide to stop switch

$

$

Not available

73

Starter/Clutch Housing Asy

Note: See "Starter/Clutch Housing Assembly"

$

$

Not available
