MT 3310 (41AD310Q077) - McCulloch String Trimmer Carburetor Assembly (Zama C1U M29D) Parts Diagram

String Trimmer

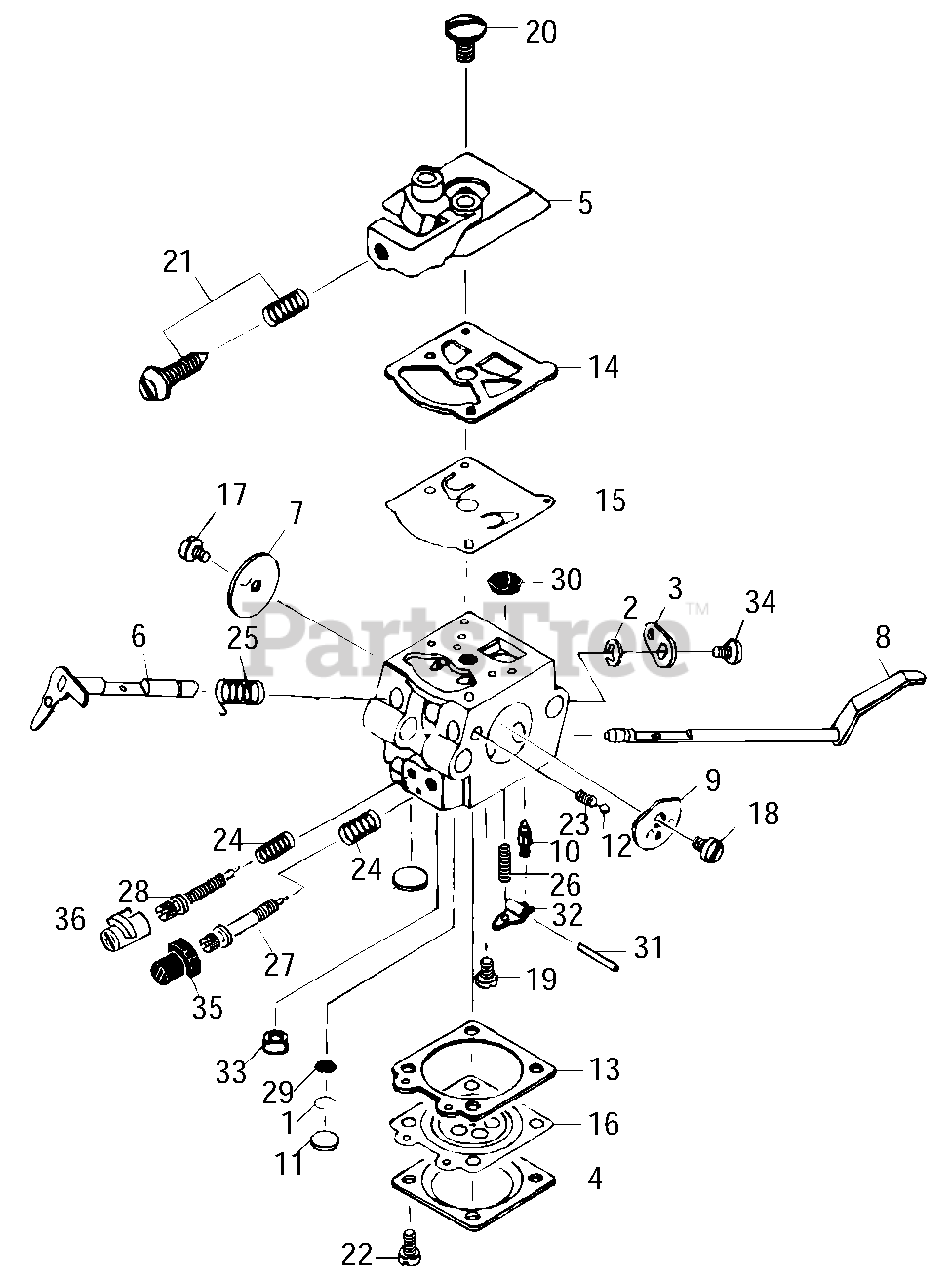

Carburetor Assembly (Zama C1U M29D) Parts Diagram

  • Title

MTD MC-323602-03

Carburetor, Zama C1U M29D

$

$

Not available

1

Ring, Screen Retainer

$

$

Not available

2

Collar

$

$

Not available

3

Lever, Throttle

$

$

Not available

4

Cover, Metering Lever

$

$

Not available

5

MTD MC-300456-00

Cover, Fuel Pump

$

$

Currently unavailable

6

Shaft Asy, Throttle

$

$

Not available

7

Valve, Throttle

$

$

Not available

8

Shaft Asy, Choke

Note: 322358 - Kit, Choke Lever 40-999

$

$

Not available

9

Valve, Choke

Note: 322358 - Kit, Choke Lever 40-999

$

$

Not available

10

Valve, Inlet Needle

Note: 300454 - Kit, Major Repair RB-48

$

$

Not available

11

Plug, Welch

Note: 300454 - Kit, Major Repair RB-48

$

$

Not available

12

Ball, Choke Friction

$

$

Not available

13

Gasket, Metering Diaphragm

Note: 300454 - Kit, Major Repair RB-48; 300473 - Kit, Gasket/Diaphragm GND-13

$

$

Not available

14

Gasket, Fuel Pump

Note: 300454 - Kit, Major Repair RB-48; 300473 - Kit, Gasket/Diaphragm GND-13

$

$

Not available

15

Diaphragm, Fuel Pump

Note: 300454 - Kit, Major Repair RB-48; 300473 - Kit, Gasket/Diaphragm GND-13

$

$

Not available

16

Diaphragm Asy, Metering

Note: 300454 - Kit, Major Repair RB-48; 300473 - Kit, Gasket/Diaphragm GND-13

$

$

Not available

17

Screw, Valve

Note: 322358 - Kit, Choke Lever 40-999

$

$

Not available

18

Screw, Valve

$

$

Not available

19

Screw, Metering Lever Pin

$

$

Not available

20

Screw, Pump Cover

$

$

Not available

21

Screw, Idle Adjust Kit

$

$

Not available

22

Screw, Metering Cover

$

$

Not available

23

Spring, Choke Friction

Note: 322358 - Kit, Choke Lever 40-999

$

$

Not available

24

Spring Needle

$

$

Not available

25

Spring, Throttle Return

$

$

Not available

26

Spring, Metering Lever

Note: 300454 - Kit, Major Repair RB-48

$

$

Not available

27

Needle, High Speed

$

$

Not available

28

Needle, Low Speed

$

$

Not available

29

Screen, Check Valve

$

$

Not available

30

Screen, Fuel Inlet

Note: 300454 - Kit, Major Repair RB-48

$

$

Not available

31

Pin, Metering Lever

Note: 300454 - Kit, Major Repair RB-48

$

$

Not available

32

Lever, Metering

Note: 300454 - Kit, Major Repair RB-48

$

$

Not available

33

Nozzle Asy, Check Valve

$

$

Not available

34

Screw, Throttle Lever

$

$

Not available

35

MTD MC-323603-00

Cap, Limiter, High, Black

$

$

Currently unavailable

36

MTD MC-323604-00

Cap, Limiter, Low, White

$

$

Currently unavailable
