MT 24520 H (2690930-01) - Murray 52" Lawn Tractor, Hydro Drive, 24hp (2012) Wheels & Tires Group Parts Diagram

52" Lawn Tractor, Hydro Drive, 24hp

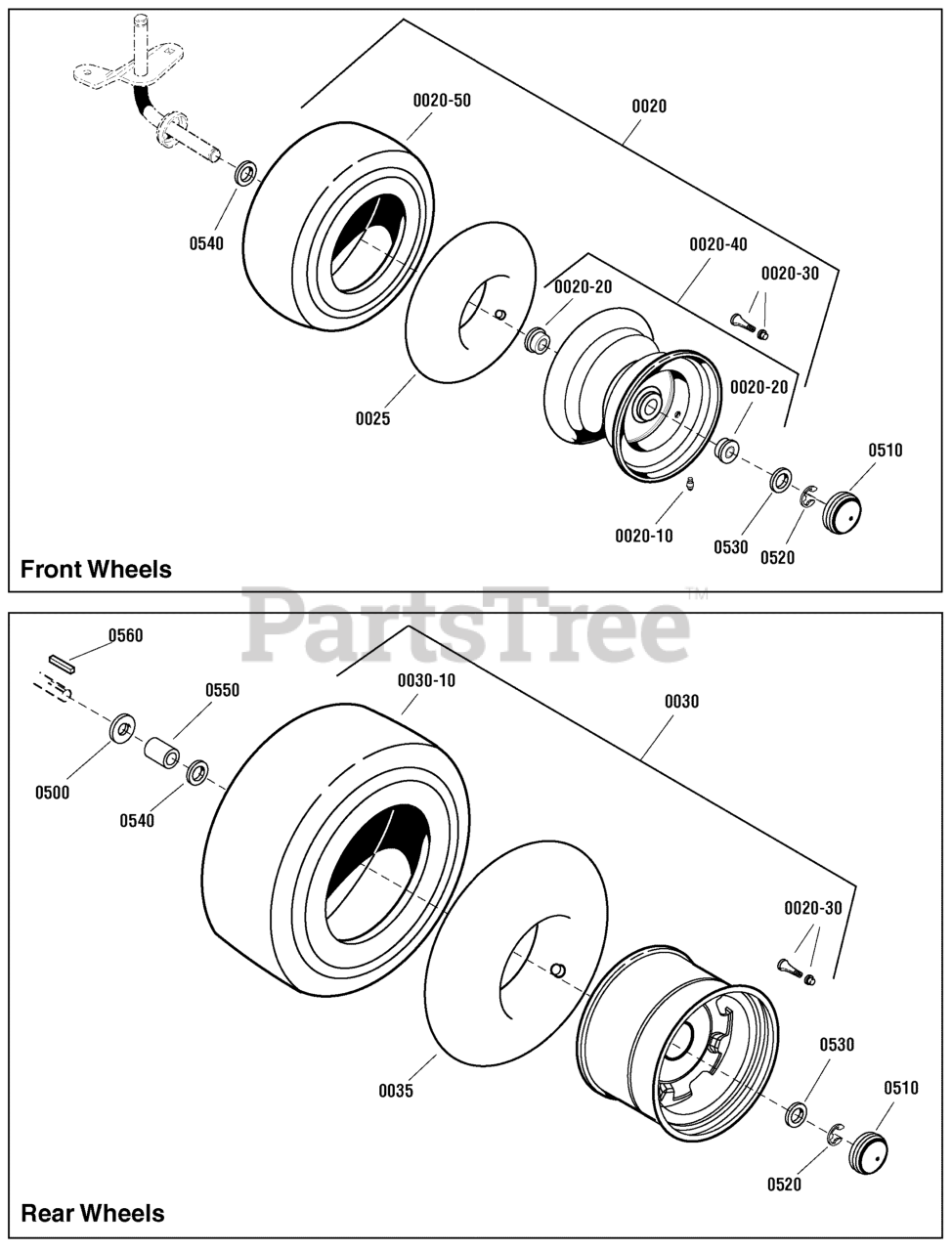

Wheels & Tires Group Parts Diagram

  • Title

0020

Murray 1729708SM

WHEEL & TIRE ASSEMBLY, Front

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-30, 0020-40 & 0020-50)

$168.99

$

Usually ships in 2-12 days

0

0020-10

Murray 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

0020-20

Murray 1713167SM

BEARING, 3/4 ID x 1.38 OD x 1-1/8"
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-30

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0020-40

Murray 1726301SM

WHEEL & BUSHINGS ASSEMBLY

Note: (Includes Ref. Nos. 0020-10 & 0020-20)

$82.99

$

In Stock, only 1 left!

0

0020-50

Murray 1731951SM

TIRE, Turf Rider, Kenda, 15 x 6.00 - 6

$131.99

$

In Stock, Qty 8

0

0025

Murray 1664090SM

TUBE, Tire, Front

$26.99

$

In Stock, only 3 left!

0

0030

Murray 7101563YP

WHEEL & TIRE ASSEMBLY, 20 x 10.0 - 8, Rear

Note: (Includes Ref. Nos. 0020-30 & 0030-10)

$283.99

$

Usually ships in 2-12 days

0

0030-10

Murray 7101562YP

TIRE, 2 Ply, K358, 20 x 10 - 8

$210.99

$

Usually ships in 2-12 days

0

0035

Murray 2164247SM

TUBE, Tire, Rear

$40.99

$

Usually ships in 2-12 days

0

0500

Murray 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

0510

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0520

Murray 0011X3MA

E-RING, .750D-.050T

$5.49

$

In Stock, Qty 20+

0

0530

Murray 17X195MA

WASHER, Flat

$4.99

$

In Stock, only 4 left!

0

0540

Murray 17X160MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0550

Murray 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8"

$9.49

$

In Stock, only 2 left!

0

0560

Murray 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0
