MT 24520 H (2690930-01) - Murray 52" Lawn Tractor, Hydro Drive, 24hp (2012) Steering Group Parts Diagram

52" Lawn Tractor, Hydro Drive, 24hp

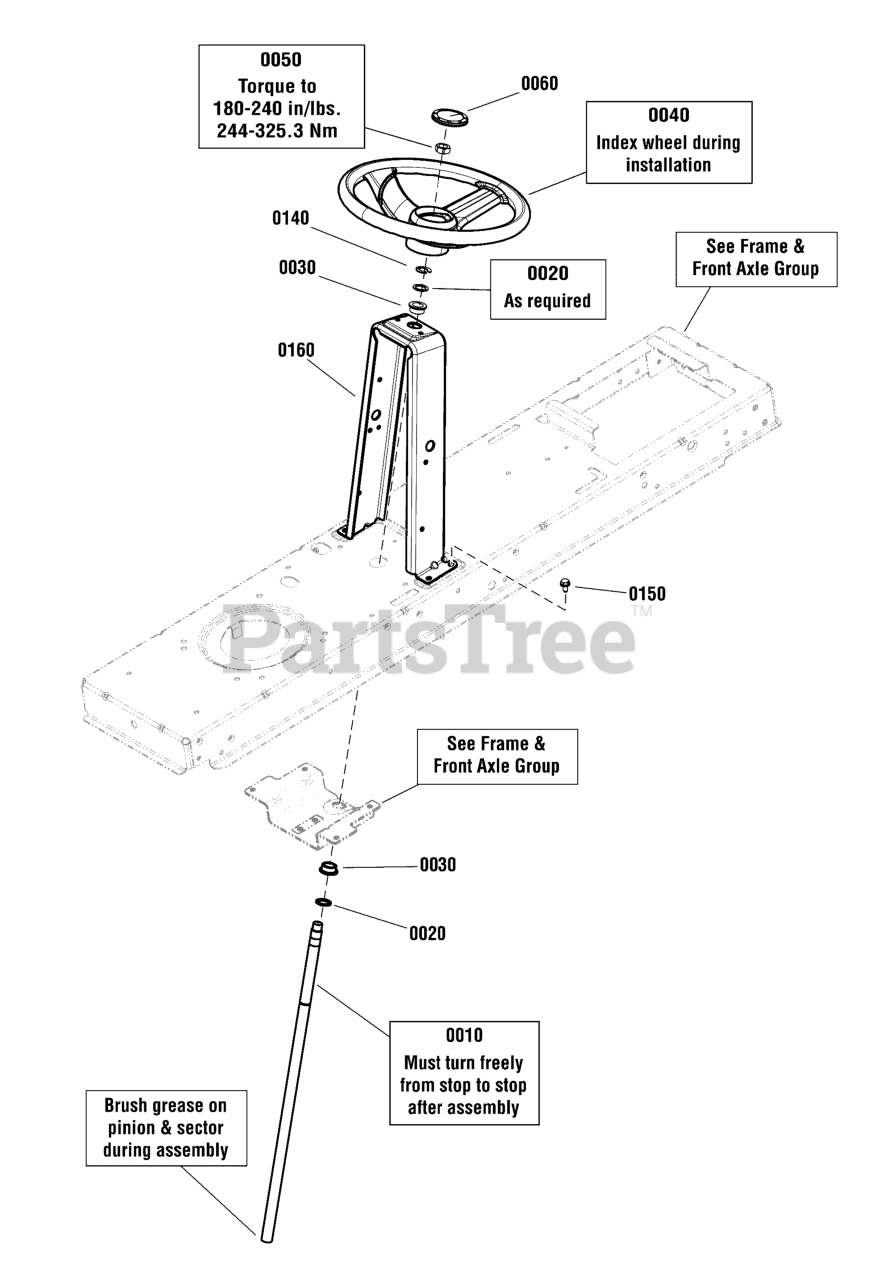

Steering Group Parts Diagram

  • Title

0010

Murray 1727813SM

SHAFT, Steering Gear & Spline

$76.99

$

In Stock, Qty 20+

0

0020

Murray 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 20+

0

0030

Murray 1729665SM

BUSHING, Steering

$5.99

$

In Stock, Qty 15

0

0040

Murray 1728069SM

STEERING WHEEL, Aluminum Insert

$74.99

$

Usually ships in 2-12 days

0

0050

Murray 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 8

0

0060

Murray 1725024SM

CAP, Steering Wheel

$7.49

$

In Stock, only 1 left!

0

0140

Murray 1611710SM

RING, Klipring Extension

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/6-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0160

Murray 885835BMYP

TOWER

$76.99

$

Usually ships in 2-12 days

0
