MT 24520 H (2690930-01) - Murray 52" Lawn Tractor, Hydro Drive, 24hp (2012) Hood, Grille & Dash Group Parts Diagram

52" Lawn Tractor, Hydro Drive, 24hp

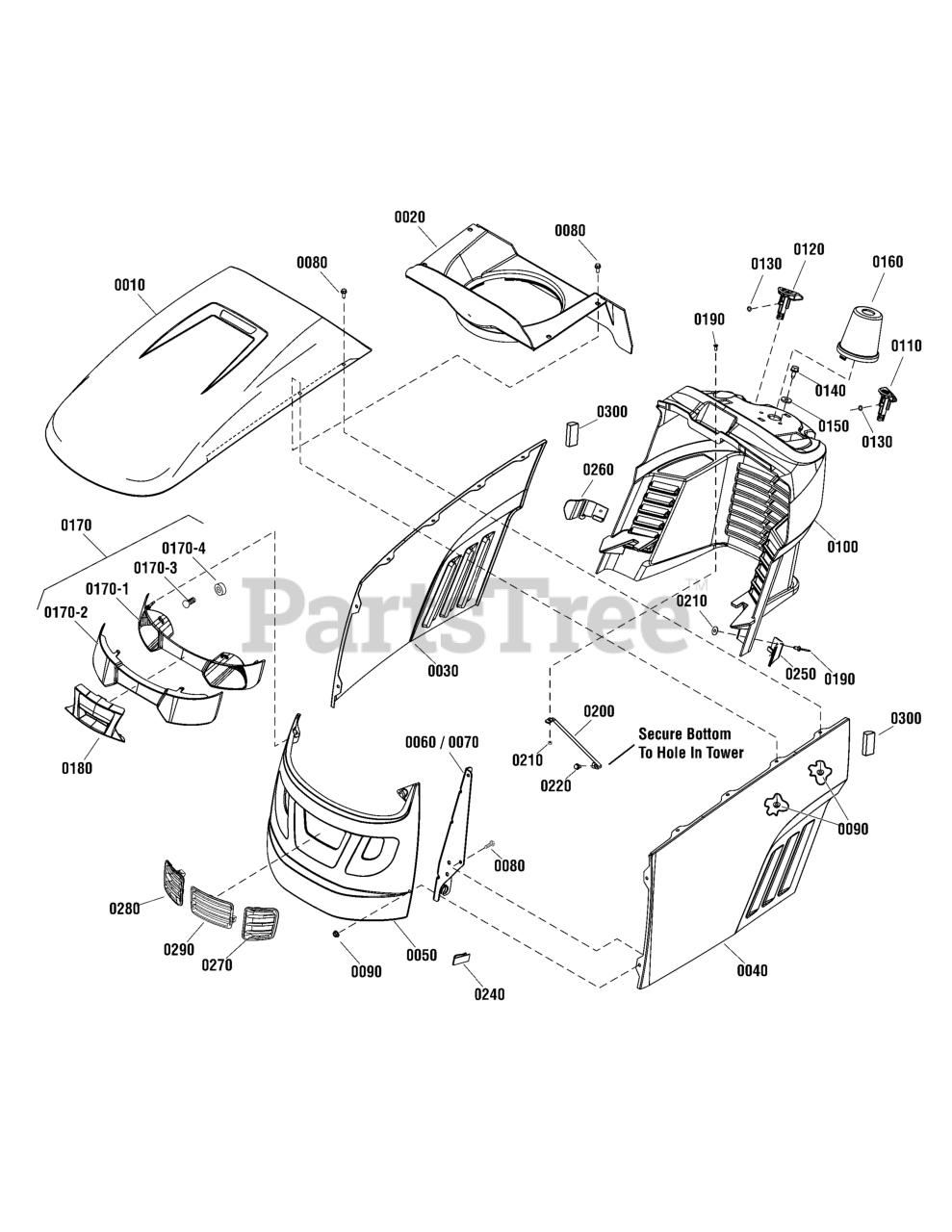

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Murray 1728031DSM

HOOD, W/ Scoop

$311.99

$

In Stock, only 1 left!

0

0020

Murray 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Murray 1727294DSM

PANEL, Side, RH

$128.99

$

Usually ships in 2-12 days

0

0040

Murray 1727295DSM

PANEL, Side, LH

$111.99

$

Usually ships in 2-12 days

0

0050

Murray 1738914DYP

GRILLE

$136.99

$

Usually ships in 2-12 days

0

0060

Murray 1727279SM

HINGE, Hood, LH
(Superseded to 1727279BMYP)

$20.99

$

Usually ships in 2-12 days

0

0070

Murray 1727280SM

HINGE, Hood, RH
(Superseded to 1727280ASM)

$20.99

$

Usually ships in 2-12 days

0

0080

Murray 1960295SM

SCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0090

Murray 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0100

Murray 1739105YP

CONSOLE

$182.99

$

Usually ships in 2-12 days

0

0110

Murray 1728089SM

KNOB, Brake

$7.49

$

In Stock, only 4 left!

0

0120

Murray 1728090SM

KNOB, Cruise Lock

$7.49

$

In Stock, Qty 10

0

0130

Murray 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0140

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0160

Murray 1739106YP

COVER

$39.99

$

Usually ships in 2-12 days

0

0170

Murray 1727296SM

HEADLIGHT ASSEMBLY

$237.99

$

In Stock, Qty 7

0

0170-1

Murray 1728973SM

REFLECTOR
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0170-2

Murray 1728974SM

LENS, Headlight
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0170-3

Murray 1677371SM

BULB, 1141-12V 21CP

$30.99

$

In Stock, only 1 left!

0

0170-4

Murray 1723451SM

SOCKET

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1728975SM

INSERT, Lightbar

$12.99

$

In Stock, only 1 left!

0

0190

Murray 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 1723123SM

ROD, Dash Support, 10"

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0220

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0240

Murray 028X83MA

S-CLIP

$3.99

$

In Stock, only 2 left!

0

0250

Murray 1732030SM

GUIDE, Hood, LH

$7.49

$

In Stock, only 2 left!

0

0260

Murray 1732031SM

GUIDE, Hood, RH

$7.49

$

In Stock, Qty 5

0

0270

Murray 1001803MA

INSERT, Grille, LH

$7.99

$

Usually ships in 2-12 days

0

0280

Murray 1001804MA

INSERT, Grille, RH

$7.49

$

Usually ships in 2-12 days

0

0290

Murray 1001802MA

INSERT, Grille, Center

$8.49

$

In Stock, only 2 left!

0

0300

Murray 1754094YP

POSITIONER, Hood

$8.49

$

Usually ships in 2-12 days

0
