MT 24520 H (2690930-01) - Murray 52" Lawn Tractor, Hydro Drive, 24hp (2012) Controls Group Parts Diagram

52" Lawn Tractor, Hydro Drive, 24hp

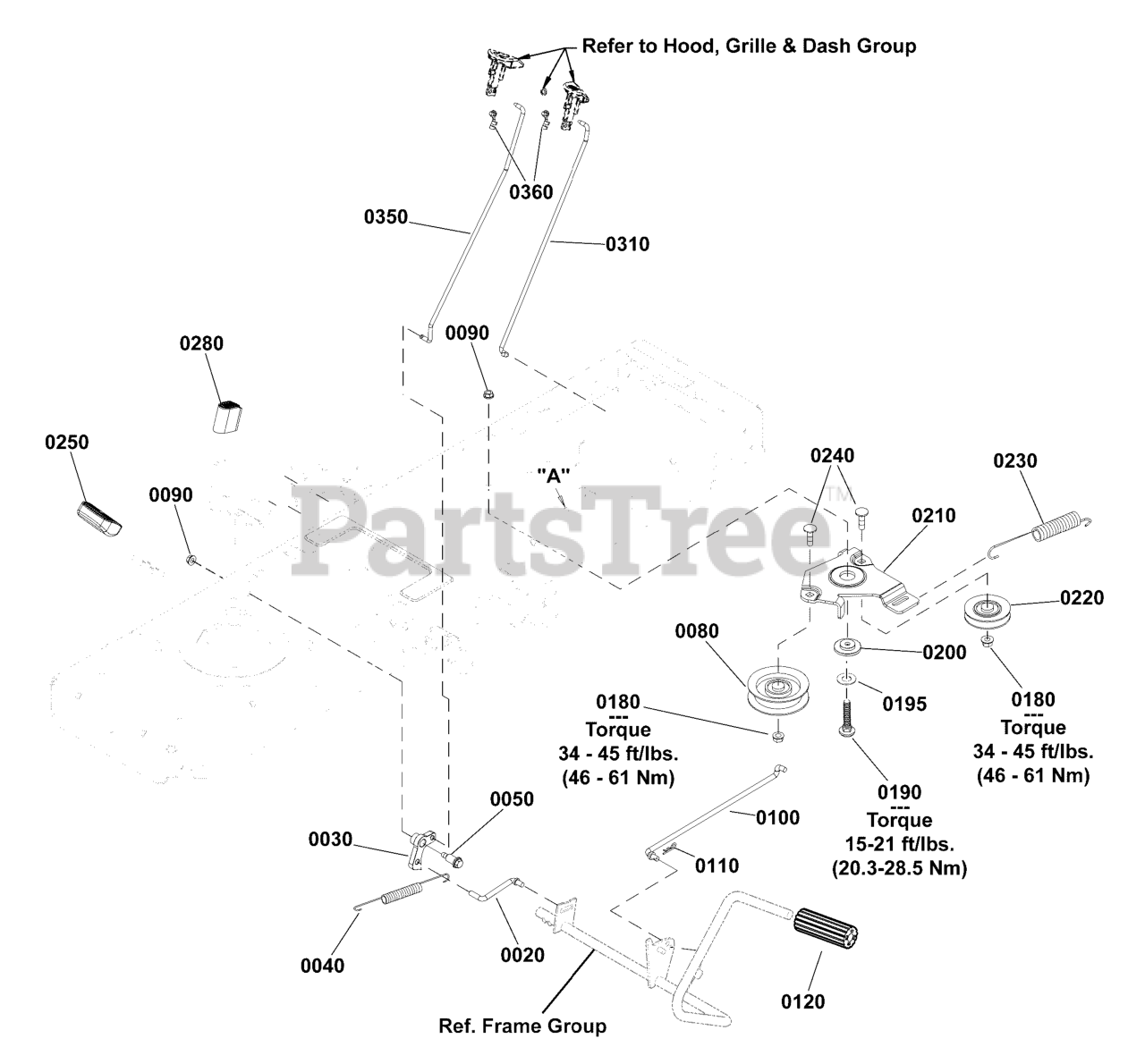

Controls Group Parts Diagram

  • Title

0020

Murray 1727899SM

ROD, Cruise Latch, 2.83"

$7.49

$

Usually ships in 2-12 days

0

0030

Murray 1727897SM

LATCH, Cruise Powdered Metal

$9.99

$

Usually ships in 2-12 days

0

0040

Murray 2159181SM

SPRING, Tension, Clutch

$7.49

$

In Stock, only 1 left!

0

0050

Murray 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0080

Murray 1728000SM

PULLEY, Idler

$18.99

$

In Stock, Qty 20+

0

0090

Murray 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Murray 1727254SM

ROD, Brake Return, 12-5/8"

$15.99

$

Usually ships in 2-12 days

0

0110

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0120

Murray 1727261SM

PEDAL, Brake Rubber

$9.99

$

In Stock, Qty 5

0

0180

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0190

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0200

Murray 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0210

Murray 1727894SM

BRACKET, Idler

$32.99

$

Usually ships in 2-12 days

0

0220

Murray 1728001SM

PULLEY, 3 OD Plastic

$18.99

$

In Stock, Qty 20+

0

0230

Murray 1729620SM

SPRING, Extension 7-1/2"

$8.49

$

In Stock, only 1 left!

0

0240

Murray 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0250

Murray 1721675SM

PAD, Foot Pedal Forward

$

$

Not available

0280

Murray 1727259SM

PAD, Foot Pedal Reverse

$8.49

$

Usually ships in 2-12 days

0

0310

Murray 1727267SM

ROD, Parking Brake, 16-3/8"

$15.99

$

Usually ships in 2-12 days

0

0350

Murray 1738760YP

ROD, Cruise Latch, 17"

$16.99

$

Usually ships in 2-12 days

0

0360

Murray 1728111SM

CLIP, Linkage, Black

$6.99

$

In Stock, only 1 left!

0
