MT 24520 H (2690930-00) - Murray 52" Lawn Tractor, Hydro Drive, 24hp (2011) Engine Group - 17.5HP, 19.5HP & 24HP Parts Diagram

52" Lawn Tractor, Hydro Drive, 24hp

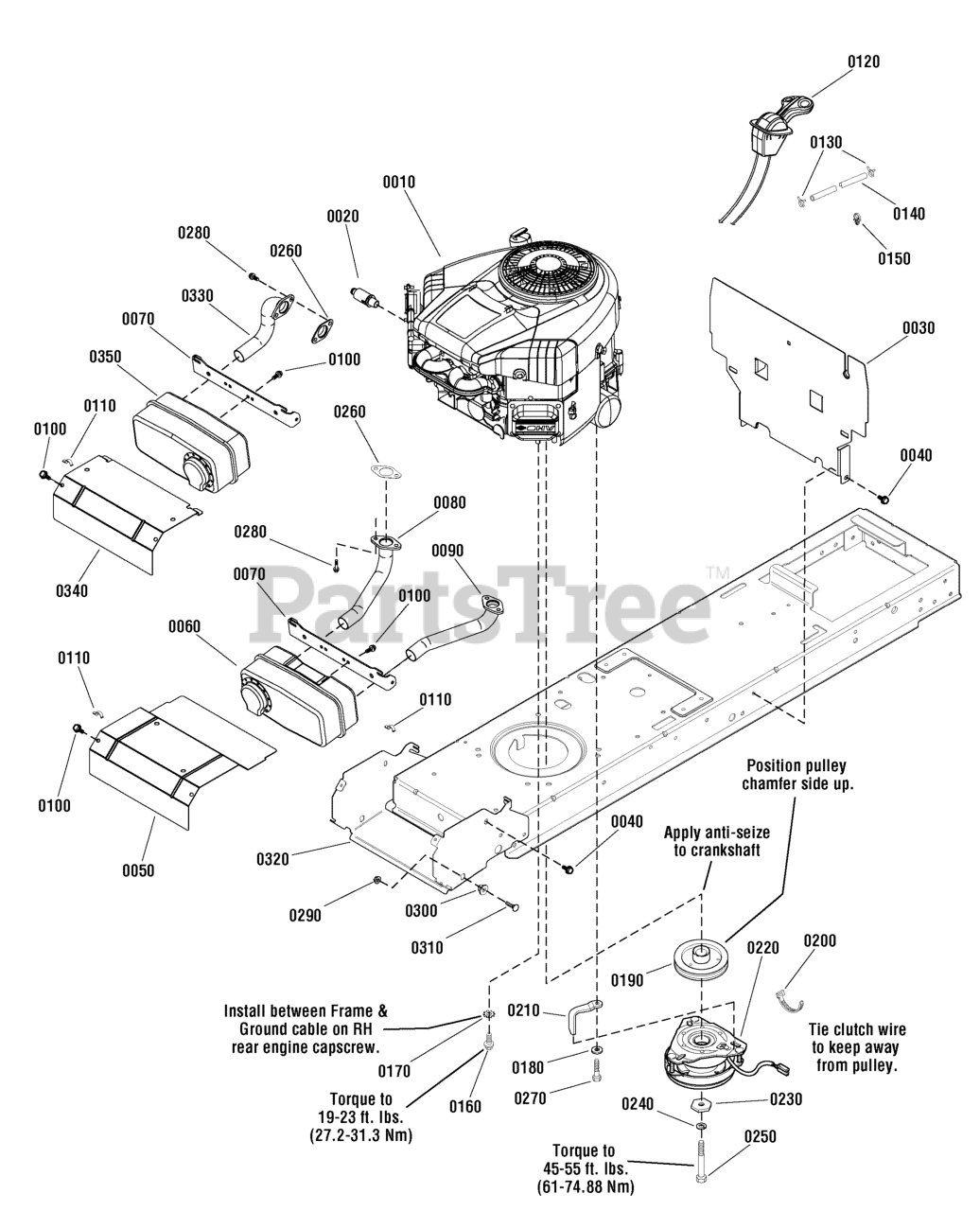

Engine Group - 17.5HP, 19.5HP & 24HP Parts Diagram

  • Title
0010

Murray 31G777-0157-B1

* ENGINE, 17.5 HP INTEK

Note: (Engine Model: 31G777-0157-B1)

$

$

Currently unavailable

0010

Murray 31Q677-0121-B1

* ENGINE, 19.5HP, B&S Single

Note: (Engine Model: 31Q677-0121-B1

$

$

Currently unavailable

0010

Murray 44M777-2166-G5

* ENGINE, 24HP B&S Twin

Note: (Engine Model: 44M777-2166-G5)

$

$

Currently unavailable

0010

Murray 44M777-5166-G5

* ENGINE, 24HP B&S Twin

Note: (Engine Model: 44M777-5166-G5)

$

$

Currently unavailable

0020

Murray 1750159YP

VALVE, Drain

Note: (Used on 17.5HP Only)

$15.99

$

Usually ships in 2-12 days

0

0030

Murray 1728058SM

HEAT SHIELD, Engine
(Superseded to 1728058BMYP)

$19.99

$

Usually ships in 2-12 days

0

0040

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0050

Murray 1727997SM

HEAT SHIELD, Twin
(Superseded to 1727997ASM)

$33.99

$

Usually ships in 2-12 days

0

0060

Murray 1727994SM

MUFFLER, B&S Twin

$98.99

$

Usually ships in 2-12 days

0

0070

Murray 1727976SM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0080

Murray 1727979SM

PIPE, Exhaust, RH

$37.99

$

In Stock, only 1 left!

0

0090

Murray 1727980SM

PIPE, Exhaust, LH

$37.99

$

In Stock, only 2 left!

0

0100

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0110

Murray 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1751734YP

CONTROL, Choke-A-Matic

Note: (Used on 17.5HP & 19.5HP)

$59.99

$

In Stock, only 1 left!

0

0120

Murray 1736868YP

CONTROL, Choke-A-Matic

Note: (Used on 24HP)

$65.99

$

Usually ships in 2-12 days

0

0130

Murray 93053B

CLAMP, Hose Band

$

$

Not available

0140

Murray 1734993SM

HOSE, Fuel
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Murray 1730268SM

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 2827187SM

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0200

Murray 1701011SM

TIE, Self Locking

Note: (Qty 2 Used on 24HP)

$5.49

$

In Stock, only 2 left!

0

0210

Murray 1737421AYP

GUIDE, Belt, Long

$12.99

$

In Stock, Qty 10

0

0220

Murray 1736105SM

CLUTCH, Electric, Mid Ogura

$387.99

$

Usually ships in 2-12 days

0

0230

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Murray 1918199SM

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0250

Murray 1960649SM

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, G5

$7.49

$

In Stock, only 1 left!

0

0260

Murray 1731214SM

GASKET, Exhaust

Note: (Qty 2 Used on 24HP)

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 2828635SM

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

0280

Murray 690341

SCREW

Note: (Qty 4 Used on 24HP)

$5.99

$

In Stock, only 3 left!

0

0290

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, Qty 7

0

0310

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Murray 1727982SM

SUPPORT, Muffler & Hood Pivot
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

0330

Murray 1728959SM

PIPE, Exhaust, Single

$34.99

$

Usually ships in 2-12 days

0

0340

Murray 1727996SM

HEAT SHIELD, Single
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0350

Murray 1727993SM

MUFFLER, B&S Single

$93.99

$

In Stock, only 1 left!

0
