MT 24460 (7800564) - Murray 46" Lawn Tractor, Hydro Drive, 24hp (2009) Electrical System - Main Harness 250X112MA Parts Diagram

46" Lawn Tractor, Hydro Drive, 24hp

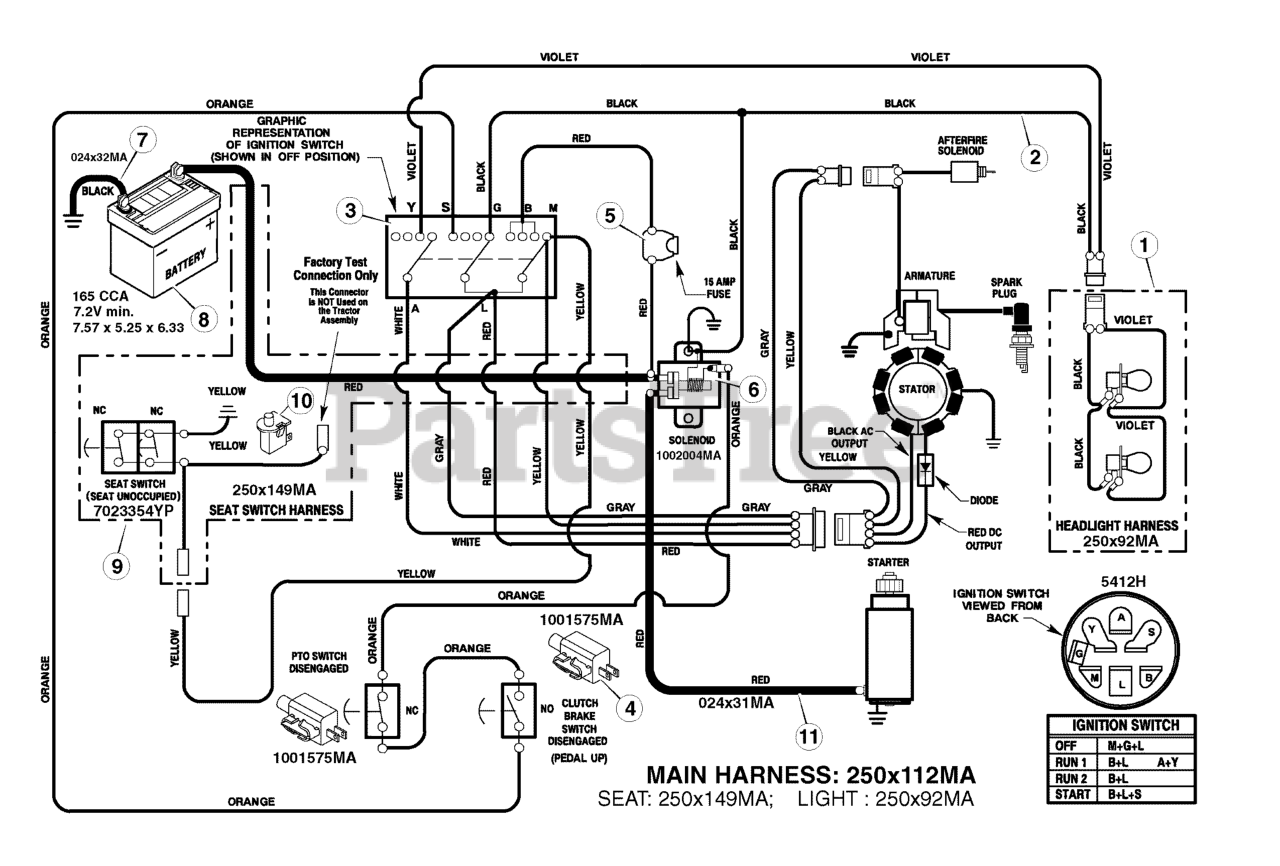

Electrical System - Main Harness 250X112MA Parts Diagram

  • Title
1

Murray 250X92MA

HARNESS, Headlight

$16.99

$

Usually ships in 2-12 days

0

2

Murray 250X112MA

HARNESS, Chassis Wire

$36.99

$

Usually ships in 2-12 days

0

3

Murray 5412H

SWITCH, Ignition, Indak
(Superseded to 5412K)

$28.99

$

In Stock, only 1 left!

0

--

Murray 2816622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Murray 1001575MA

SWITCH, No Limit, Snap-In

$9.99

$

In Stock, only 1 left!

0

--

Murray 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

$6.49

$

Usually ships in 2-12 days

0

6

Murray 1002004MA

SOLENOID, 3 Pole
(Superseded to 7701100MA)

$27.99

$

In Stock, only 2 left!

0

7

Murray 024X32MA

CABLE, Battery Ground

$8.49

$

Usually ships in 2-12 days

0

--

Murray 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

8

Murray 1685215SM

BATTERY, 12 Volt, 230 CCA

$

$

Not available

--

Murray 2823341SM

CAPSCREW, Hex 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

--

Murray 690604MA

BOOT, Battery, Positive

$5.99

$

Usually ships in 2-12 days

0

9

Murray 250X149MA

WIRING HARNESS, Seat Switch

$23.99

$

Usually ships in 2-12 days

0

11

Murray 024X31MA

CABLE, Battery

$7.49

$

In Stock, only 1 left!

0

--

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

--

Murray 7100329YP

NUT, Electric Start 5/8-32
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

--

Murray 7100330YP

CAP, Electric Start

$6.99

$

Usually ships in 2-12 days

0

--

Murray 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

--

Murray 091489MA

NUT, Ignition Switch
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 15X116MA

NUT, Nylock 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

--

Murray 091488MA

CAP, Ignition Switch

$4.99

$

Usually ships in 2-12 days

0

--

Murray 1686734SM

KEY, Ignition

$32.99

$

In Stock, Qty 20+

0

--

Murray 1717163SM

KEY IGNITION INDAK (SET OF 2)
