MT 24460 (7800564) - Murray 46" Lawn Tractor, Hydro Drive, 24hp (2009) 46" Mower Deck - Clutch & Support Parts Diagram

46" Lawn Tractor, Hydro Drive, 24hp

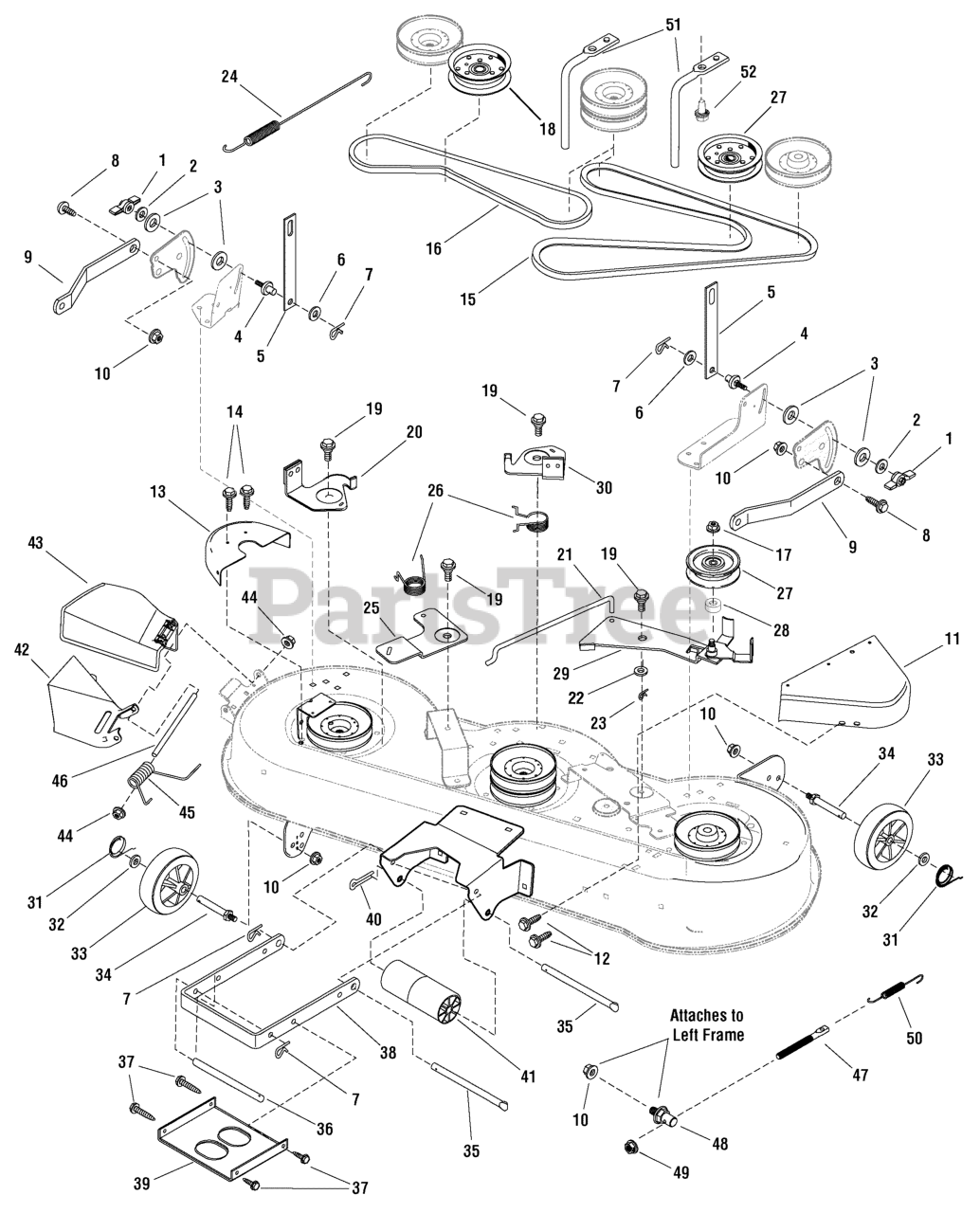

46" Mower Deck - Clutch & Support Parts Diagram

  • Title
1

Murray 094068MA

KNOB, (5/16-18 thread)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

2

Murray 017X45MA

WASHER, FLAT, 1.0 X .328 X 16GA

$

$

Not available

3

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 8

0

4

Murray 095194MA

PIN, Hanger 3/8-16 x 1-1/4

$20.99

$

In Stock, only 1 left!

0

5

Murray 7300749BMYP

LINK, Lift
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

6

Murray 17X103MA

WASHER, Flat 1

$4.99

$

In Stock, only 2 left!

0

7

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 009X52MA

BOLT, Shoulder 3/8-16 x 1

$6.49

$

In Stock, only 2 left!

0

9

Murray 7300826BMYP

BRACKET, Rear Suspension

$15.99

$

Usually ships in 2-12 days

0

10

Murray 015X84MA

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Murray 7300773BMYP

COVER, Left Pulley

$101.99

$

Usually ships in 2-12 days

0

12

Murray 26X277MA

SCREW, 5/16-18 x 1/2

$4.99

$

Usually ships in 2-12 days

0

13

Murray 7300857BMYP

COVER, Right Pulley

$82.99

$

Usually ships in 2-12 days

0

14

Murray 1929477SM

SCREW, Hex Washer Head Taptite

$4.49

$

Usually ships in 2-12 days

0

15

Murray 7101748YP

BELT, Primary 46 in

$50.99

$

Usually ships in 2-12 days

0

16

Murray 037X66MA

BELT, Secondary, 46 in

$24.99

$

In Stock, only 1 left!

0

17

Murray 015X98MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

18

Murray 091801MA

PULLEY, Idler, Right

$24.99

$

In Stock, Qty 7

0

19

Murray 009X42MA

BOLT, Shoulder 3/8-16 x 3/5
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

20

Murray 7500566BMYP

BRAKE ASSEMBLY, Center

$38.99

$

Usually ships in 2-12 days

0

21

Murray 094606ZMA

LINK, Bellcrank

$13.99

$

Usually ships in 2-12 days

0

22

Murray 017X47MA

Washer, Flat 5/8"
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 030X20MA

PIN, Cotter, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

24

$11.99

$

In Stock, only 1 left!

0

25

$55.99

$

Usually ships in 2-12 days

0

26

Murray 166X41MA

SPRING, Torsion Brake

$4.99

$

In Stock, only 2 left!

0

27

Murray 690387MA

PULLEY, Idler, Left

$

$

Not available

28

Murray 690369MA

SPACER, 1/2" TO 17mm

$

$

Not available

29

Murray 7400227BMYP

IDLER ARM, 46 in, Left

$149.99

$

Usually ships in 2-12 days

0

30

Murray 7500565BMYP

BRAKE ASSEMBLY, Left

$50.99

$

Usually ships in 2-12 days

0

31

Murray 031X11MA

CLIP, Hair Pin

$4.49

$

In Stock, only 2 left!

0

32

Murray 017X91MA

WASHER, Flat, 7/8

$5.49

$

In Stock, Qty 11

0

33

Murray 092683MA

WHEEL GAGE

$15.99

$

In Stock, only 3 left!

0

34

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

35

Murray 094996MA

ROD, Deck Suspension

$

$

Not available

36

Murray 094158ZMA

ROD, Hanger

$28.99

$

Usually ships in 2-12 days

0

37

Murray 26X249MA

CAPSCREW, 5/16-18

$

$

Not available

38

Murray 7300767BMYP

BRACKET, Front Suspension

$33.99

$

Usually ships in 2-12 days

0

39

$18.99

$

Usually ships in 2-12 days

0

40

Murray 030X49MA

COTTER PIN

$4.49

$

In Stock, Qty 11

0

41

$20.99

$

Usually ships in 2-12 days

0

42

Murray 7300858BMYP

DEFLECTOR, Inside

$96.99

$

In Stock, only 1 left!

0

43

Murray 092100MA

DEFLECTOR, Chute

$93.99

$

Usually ships in 2-12 days

0

44

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

45

Murray 166X34MA

SPRING, Torsion

$9.49

$

Usually ships in 2-12 days

0

46

Murray 092159ZMA

ROD, Deflector

$

$

Not available

47

Murray 094042ZMA

STUD, Spring Mounting

$4.49

$

Usually ships in 2-12 days

0

48

Murray 690182MA

STUD, Swivel (3/8-16 thread)

$11.99

$

Usually ships in 2-12 days

0

49

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

50

Murray 165X133MA

Spring, Extension

$20.99

$

Usually ships in 2-12 days

0

51

Murray 091797ZMA

Guide, Belt

$20.99

$

Usually ships in 2-12 days

0

52

Murray 025X15MA

SCREW, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0
