MT 202A13 (41ACA13P977) - McCulloch String Trimmer, Electric String Trimmer 13" Parts Diagram

String Trimmer, Electric

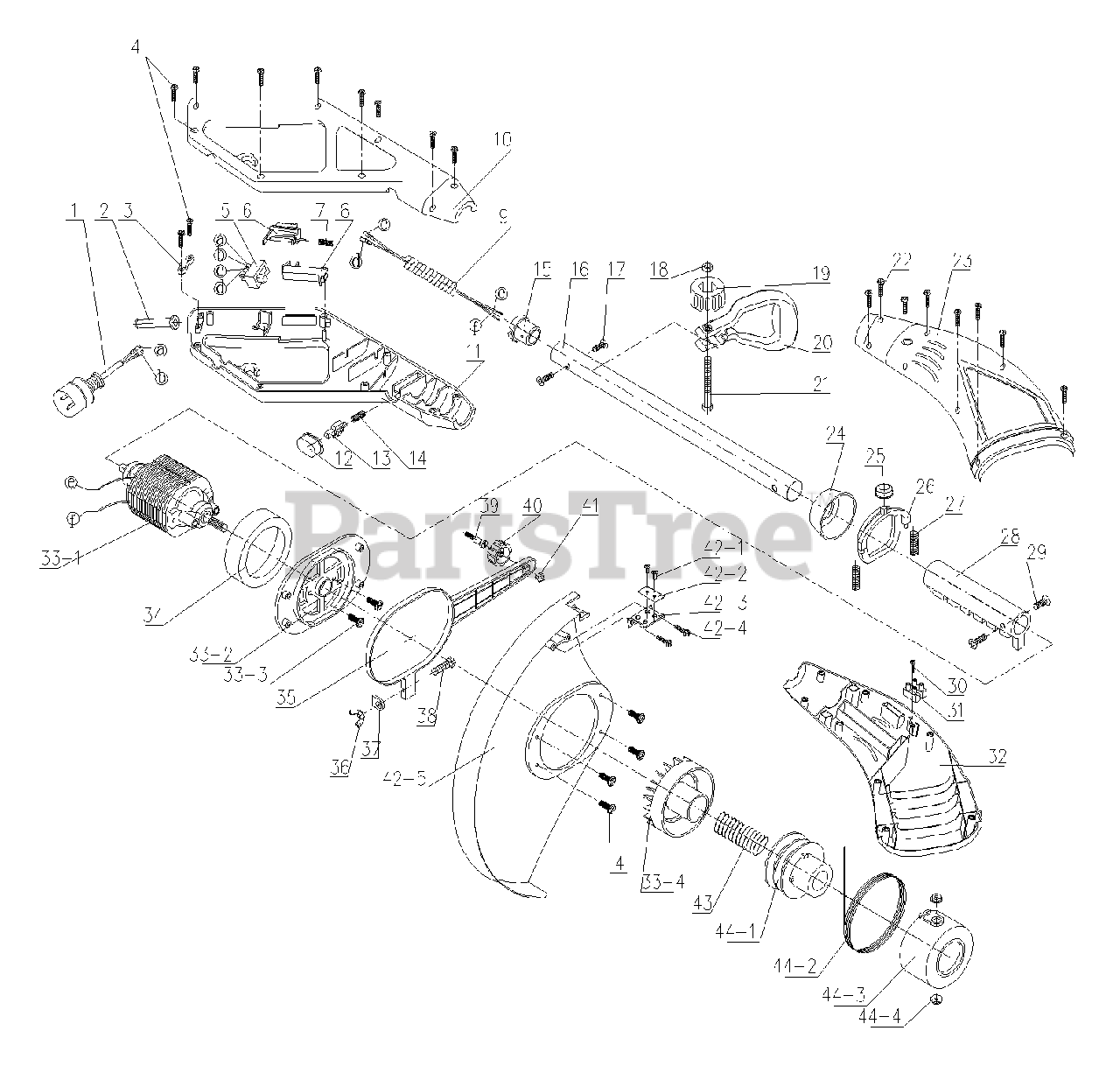

String Trimmer 13" Parts Diagram

  • Title

1

MTD MC-6011-202A02

POWER CORD

$

$

Not available

2

MTD MC-6199-202A01

CORD GUARD

$

$

Not available

3

MTD MC-6043-202A01

PLATE (PRESSING CORD)

$

$

Not available

4

MTD MC-6SDABB04-14

SCREW

$

$

Not available

5

MTD MC-6022-202A01

SWITCH

$

$

Not available

6

MTD MC-6134-202A01

TRIGGER

$

$

Not available

7

MTD MC-6024-202A01

SPRING

$

$

Not available

8

MTD MC-6134-202A02

TRIGGER

$

$

Not available

9

MTD MC-6010-202A01

WIRE

$

$

Not available

10

MTD MC-6068-202A01

UPPER HANDGRIP (R)

$

$

Not available

11

MTD MC-6068-202A02

UPPER HANDGRIP (L)

$

$

Not available

12

MTD MC-6056-202A01

BUTTON

$

$

Not available

13

MTD MC-6021-202A01

LEVER

$

$

Not available

14

MTD MC-6024-202A02

SPRING

$5.99

$

In Stock, only 1 left!

0

15

MTD MC-6131-202A01

JOINT PIPE

$

$

Not available

16

MTD MC-6129-202A01

CENTRAL TUBE

$

$

Not available

17

MTD MC-6SDABB04-06

SCREW

$

$

Not available

18

MTD MC-6NG-06

NUT

$

$

Currently unavailable

19

MTD MC-6056-230302

BUTTON

$

$

Not available

20

MTD MC-6196-202601

CENTRAL HANDGRIP

$

$

Not available

21

MTD MC-6SXDB-06-65

SCREW

$

$

Not available

22

MTD MC-6SDABB04-18

SCREW

$

$

Not available

23

MTD MC-6038-202A01

HOUSING (R)

$

$

Not available

24

MTD MC-6059-202A01

JACKET

$

$

Not available

25

MTD MC-6056-202A02

BUTTON

$

$

Not available

26

MTD MC-6239-202A01

FIXED RING

$

$

Not available

27

MTD MC-6024-202A03

SPRING

$

$

Not available

28

MTD MC-6131-202A02

EXPANDING RING

$

$

Not available

29

MTD MC-6SJABB04-08

SCREW

$

$

Currently unavailable

30

MTD MC-6SDABA03-16

SCREW

$

$

Not available

31

MTD MC-6072-202A01

TERMINAL BLOCK

$

$

Currently unavailable

32

MTD MC-6038-202A02

HOUSING (L)

$

$

Not available

33

MTD MC-6228-202A11

MOTOR ASS'Y

$

$

Not available

34

MTD MC-6131-202A14

CUSHION RING

$

$

Currently unavailable

35

MTD MC-6114-202A14

CUSHION RING

$

$

Currently unavailable

36

MTD MC-6NEB-06

NUT

$

$

Currently unavailable

37

MTD MC-6043-202A02

GASKET

$

$

Currently unavailable

38

MTD MC-6SXDB-06-20

SCREW

$

$

Not available

39

MTD MC-6155-202A01

SHAFT PIN

$

$

Currently unavailable

40

MTD MC-6137-202A01

WHEEL

$

$

Not available

41

MTD MC-6NAB-05

NUT

$

$

Not available

42

MTD MC-6228-202A07

SHIELD ASS'Y

$

$

Currently unavailable

43

MTD MC-6024-202A04

SPRING

$

$

Not available

44

MTD MC-6228-202004A

SPOOL CARRIER ASS'Y

$

$

Not available
