MT 155420 H (2691227) - Murray 42" Lawn Tractor, 15.5hp (2014) 42" Mower Deck - Clutch & Support Group Parts Diagram

42" Lawn Tractor, 15.5hp

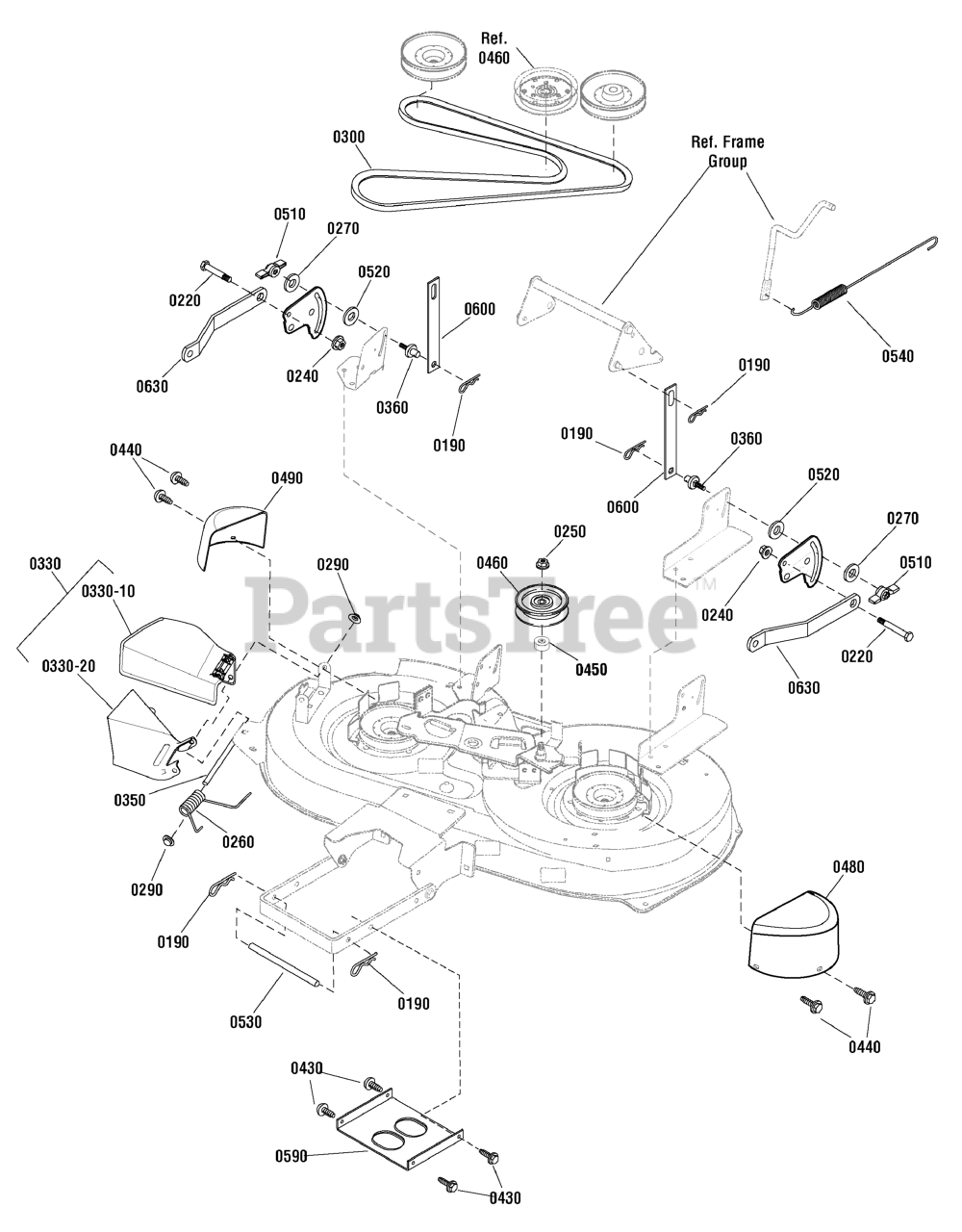

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title
0190

Murray 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0220

Murray 009X52MA

BOLT, Shoulder, 3/8-16

$6.49

$

In Stock, only 2 left!

0

0240

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0250

Murray 015X98MA

NUT, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0260

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

0270

Murray 017X45MA

WASHER, Flat, 5/16

$

$

Not available

0290

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0300

Murray 037X88MA

BELT, Mower Drive

$33.99

$

In Stock, Qty 20+

0

0330

Murray 094707MA

DEFLECTOR ASSEMBLY

$108.99

$

In Stock, only 3 left!

0

0330-10

Murray 094687MA

DEFLECTOR, Chute

$78.99

$

Usually ships in 2-12 days

0

0330-20

Murray 094686E701MA

SUPPORT, Deflector

$59.99

$

Usually ships in 2-12 days

0

0350

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0360

Murray 095194MA

PIN, Hanger

$20.99

$

In Stock, only 1 left!

0

0430

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

0440

Murray 26X263MA

SCREW, Hex, 1/4-20 x 0.59

$4.99

$

In Stock, only 1 left!

0

0450

Murray 690369MA

SPACER, 1/2" to 17mm

$

$

Not available

0460

Murray 690387MA

PULLEY, Idler, Backside

$

$

Not available

0480

Murray 7102700YP

COVER, Belt, LH

$14.99

$

Usually ships in 2-12 days

0

0490

Murray 7102701YP

COVER, Belt, RH

$14.99

$

Usually ships in 2-12 days

0

0510

Murray 094068MA

KNOB
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0520

Murray 094137MA

PAD, Friction

$6.99

$

In Stock, Qty 8

0

0530

Murray 094158ZMA

ROD, Hanger

$28.99

$

Usually ships in 2-12 days

0

0540

Murray 165X119MA

SPRING, Extension

$13.99

$

In Stock, only 1 left!

0

0590

Murray 7300871BMYP

STIFFENER

$18.99

$

Usually ships in 2-12 days

0

0600

Murray 7300749BMYP

LINK, Lift
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

0630

Murray 7300826BMYP

BRACKET, Rear Suspension

$15.99

$

Usually ships in 2-12 days

0
