MT 155420 (7800581) - Murray 42" Lawn Tractor, Hydro Drive, 15.5hp (2009) Engine Group - 15.5HP Briggs & Stratton Parts Diagram

42" Lawn Tractor, Hydro Drive, 15.5hp

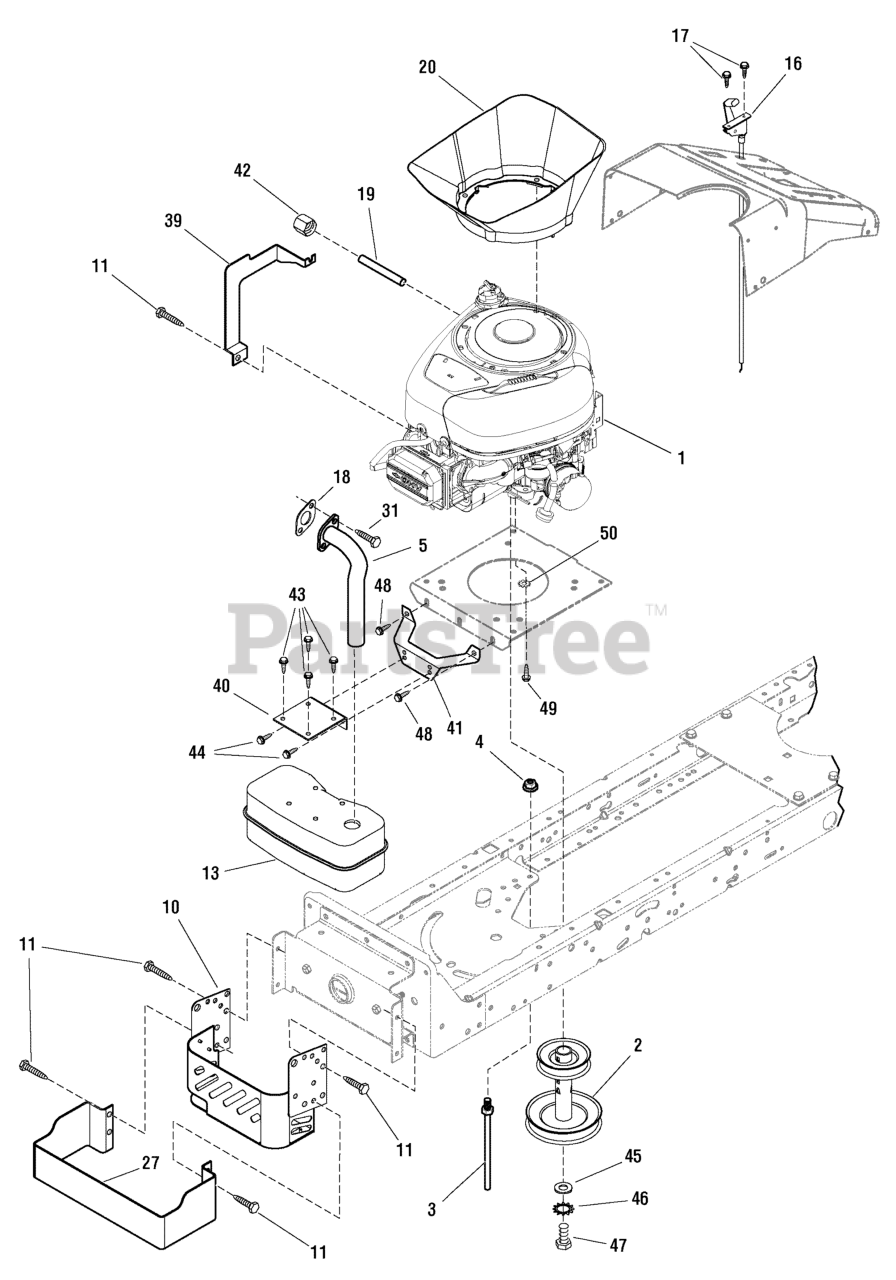

Engine Group - 15.5HP Briggs & Stratton Parts Diagram

  • Title
1

Murray 31A607-0140-B1

ENGINE, 15.5HP Briggs & Stratton*

Note: (Engine Model: 31A607-0140-B1)

$

$

Currently unavailable

2

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 5

0

5

Murray 1001496MA

EXHAUST TUBE, Single

$33.99

$

Usually ships in 2-12 days

0

10

Murray 7500533BMYP

HEAT SHIELD

$90.99

$

Usually ships in 2-12 days

0

11

Murray 06X104MA

SCREW, Hex Head 5/16-18 x 5/8

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094654MA

MUFFLER, Single

$

$

Not available

16

Murray 092371MA

THROTTLE CONTROL

$37.99

$

Usually ships in 2-12 days

0

17

Murray 26X201MA

SCREW, Self Tap #8 x 3/8

$4.49

$

In Stock, only 2 left!

0

18

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

19

Murray 7102821YP

NIPPLE, Pipe, 3/8 x 3 in

$14.99

$

Usually ships in 2-12 days

0

20

Murray 7101960YP

PLENUM, Murray

$47.99

$

Usually ships in 2-12 days

0

27

Murray 7300783BMYP

GUARD, Heat Shield, Front

$83.99

$

Usually ships in 2-12 days

0

31

Murray 7091738SM

SCREW, 5/16-18 x 3/4

$4.99

$

In Stock, Qty 14

0

39

Murray 1001880E701MA

GUARD, Exhaust Pipe

$29.99

$

Usually ships in 2-12 days

0

40

Murray 7300760BMYP

BRACKET, Muffler

$18.99

$

Usually ships in 2-12 days

0

41

Murray 7300817ZMA

BRACKET, Muffler Mounting

$11.99

$

Usually ships in 2-12 days

0

42

Murray 021651ZMA

CAP, Pipe 3/8

$7.49

$

Usually ships in 2-12 days

0

43

Murray 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

44

Murray 26X263MA

SCREW, Hex 1/4 x 1/2

$4.99

$

In Stock, only 1 left!

0

45

Murray 17X170MA

WASHER, .470- 1.00.25 FLT

$

$

Not available

46

Murray 019X35MA

WASHER, Star, 1/2

$4.99

$

In Stock, Qty 11

0

47

Murray 01X140MA

BOLT, Hex, 7/16-20 x 1-1/2

$5.49

$

In Stock, Qty 15

0

48

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

49

Murray 0025X7MA

BOLT, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

50

Murray 0019X8MA

WASHER, Star, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0
