MT 155380 (7800561) - Murray 38" Lawn Tractor, Hydro Drive, 15.5hp (2009) 38" Mower Deck - Clutch & Support (7501127) Parts Diagram

38" Lawn Tractor, Hydro Drive, 15.5hp

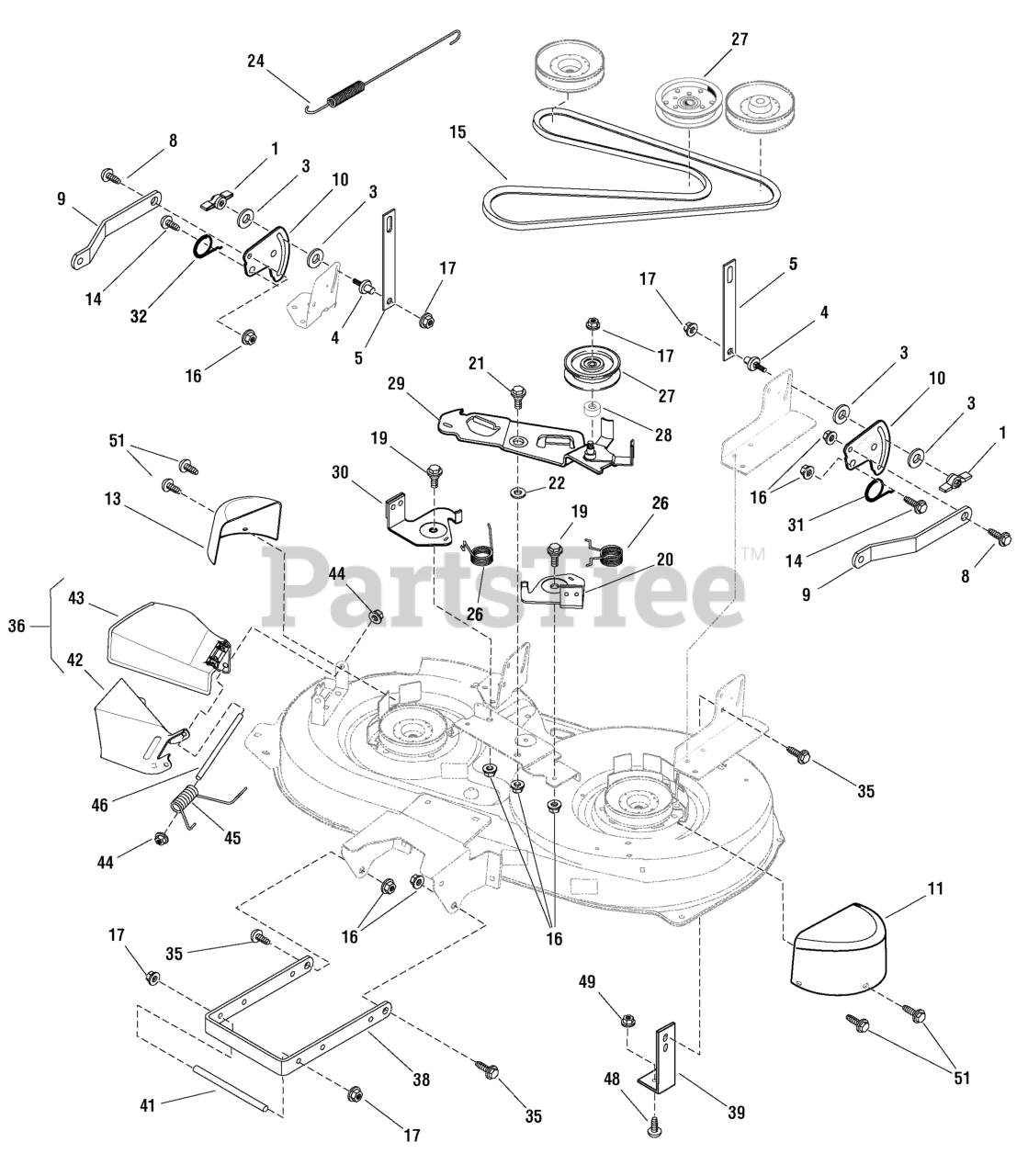

38" Mower Deck - Clutch & Support (7501127) Parts Diagram

  • Title

1

Murray 094068MA

KNOB (5/16-18 nut enclosed)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

3

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 8

0

4

Murray 095194MA

PIN, Hanger

$20.99

$

In Stock, only 1 left!

0

5

Murray 7300749BMYP

LINK, Lift (LT)
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

8

Murray 009X52MA

BOLT, Shoulder 3/8-16 x 1

$6.49

$

In Stock, only 2 left!

0

9

Murray 7300826BMYP

BRACKET, Suspension

$15.99

$

Usually ships in 2-12 days

0

10

Murray 7300878BMYP

PLATE, Suspension

$15.99

$

Usually ships in 2-12 days

0

11

Murray 7102700YP

COVER, Belt, Left

$14.99

$

Usually ships in 2-12 days

0

13

Murray 7102701YP

COVER, Belt, Right

$14.99

$

Usually ships in 2-12 days

0

14

Murray 009X51MA

BOLT, Shoulder 3/8-16 x 1

$4.99

$

In Stock, only 2 left!

0

15

Murray 037X86MA

BELT, V Mower Drive 38 in

$43.99

$

Usually ships in 2-12 days

0

16

Murray 015X84MA

NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 015X98MA

NUT Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 009X39MA

BOLT, Shoulder 3/8-16

$6.49

$

In Stock, Qty 6

0

20

Murray 7400244BMYP

BRAKE ASSEMBLY, Left

$101.99

$

Usually ships in 2-12 days

0

21

Murray 009X72MA

BOLT, Shoulder

$

$

Not available

22

Murray 17X174ZMA

WASHER, Flat

$6.49

$

Usually ships in 2-12 days

0

24

Murray 165X118MA

SPRING, Extension

$10.99

$

Usually ships in 2-12 days

0

26

Murray 166X41MA

SPRING, Torsion Brake

$4.99

$

In Stock, only 2 left!

0

27

Murray 690387MA

PULLEY, Idler, 4 in

$

$

Not available

28

Murray 690369MA

SPACER, 1/2 in to 17 mm

$

$

Not available

29

Murray 1001499MA

ASSEMBLY, Idler Arm, 38 in

$148.99

$

Usually ships in 2-12 days

0

30

Murray 7400243BMYP

BRAKE ASSEMBLY, Right

$94.99

$

Usually ships in 2-12 days

0

31

Murray 166X43MA

SPRING, Left Torsion

$4.99

$

In Stock, only 2 left!

0

32

Murray 166X42MA

SPRING, Right Torsion

$4.99

$

In Stock, Qty 8

0

35

Murray 26X249MA

CAPSCREW, 5/16-18

$

$

Not available

36

Murray 094707MA

ASSEMBLY, Deflector

Note: (Includes Ref Nos. 42 & 43)

$108.99

$

In Stock, only 3 left!

0

38

Murray 7300767BMYP

BRACKET, Suspension Front

$33.99

$

Usually ships in 2-12 days

0

39

Murray 7300766BMYP

BRACKET, Support

$23.99

$

Usually ships in 2-12 days

0

41

Murray 094158ZMA

ROD HANGER

$28.99

$

Usually ships in 2-12 days

0

42

Murray 7300846AYP

SUPPORT, Deflector

$35.99

$

Usually ships in 2-12 days

0

43

Murray 094687MA

DEFLECTOR, Chute

$78.99

$

Usually ships in 2-12 days

0

44

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

45

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

46

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

48

Murray 7091714YP

BOLT, Shoulder 5/16-18 x 1
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

49

Murray 7091601SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

51

Murray 26X263MA

SCREW, Hex 1/4 x 1/2

$4.99

$

In Stock, only 1 left!
