MT 155380 (2691198-00) - Yard King 38" Lawn Tractor, 15.5hp (2013) Engine Group Parts Diagram

38" Lawn Tractor, 15.5hp

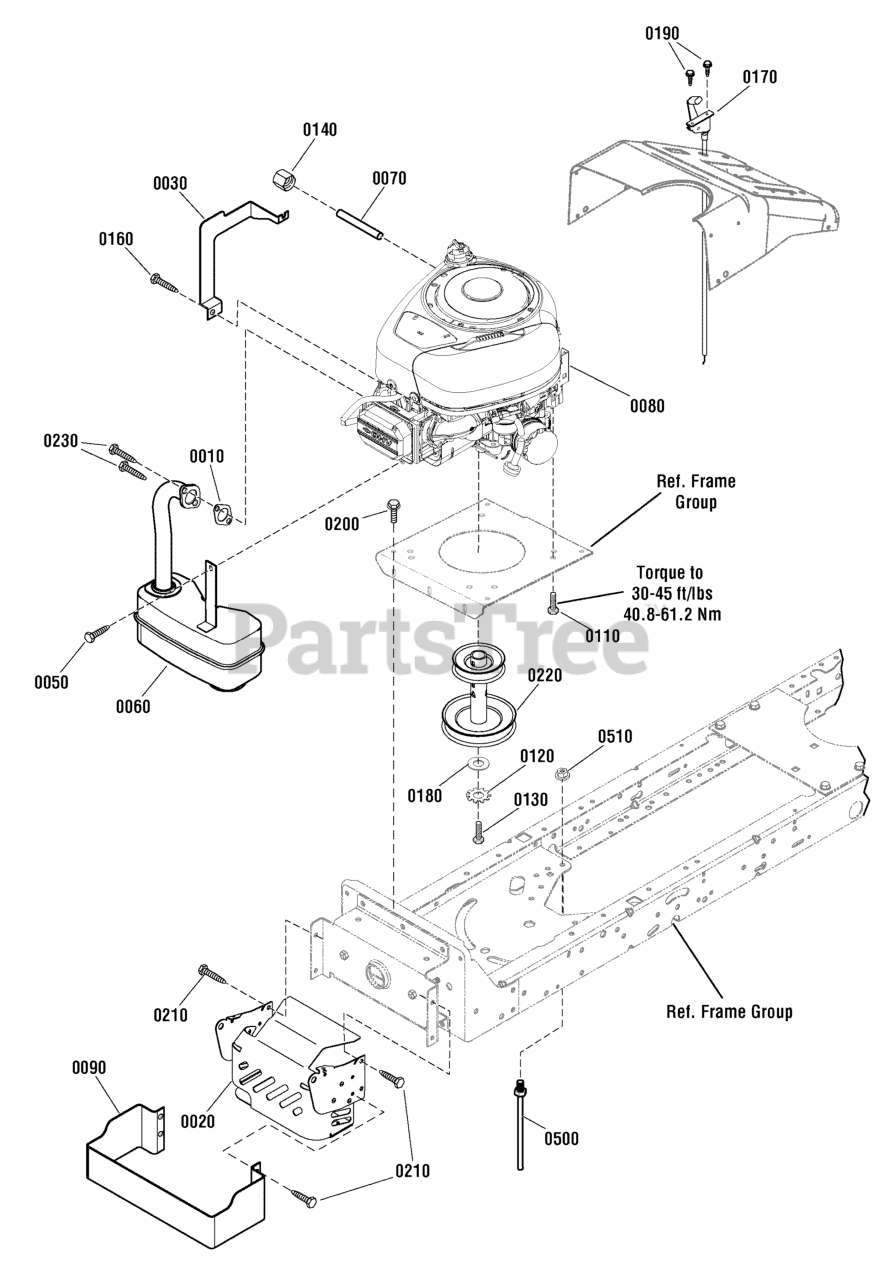

Engine Group Parts Diagram

  • Title

0010

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0020

Murray 1740501BMYP

HEAT SHIELD

$125.99

$

Usually ships in 2-12 days

0

0030

Murray 1740504BMYP

GUARD, Exhaust Pipe

$35.99

$

Usually ships in 2-12 days

0

0050

Murray 7091819SM

SCREW, Thread Forming, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

0060

Murray 7102483YP

MUFFLER ASSEMBLY, Single

$131.99

$

Usually ships in 2-12 days

0

0070

Murray 7102821YP

NIPPLE, Pipe, 3/8 x 3 in

$14.99

$

Usually ships in 2-12 days

0

0080

Murray 31A507-0136-B1

* ENGINE, 14.5HP Briggs & Stratton

Note: (Engine Model: 31A507-0136-B1)

$

$

Currently unavailable

0080

Murray 31A607-0161-B1

* ENGINE, 15.5HP Briggs & Stratton

Note: (Engine Model: 31A607-0161-B1)

$

$

Currently unavailable

0090

Murray 7300783BMYP

GUARD, Heat Shield, Front

$83.99

$

Usually ships in 2-12 days

0

0110

Murray 0025X7MA

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0120

Murray 019X35MA

WASHER, Star

$4.99

$

In Stock, Qty 11

0

0130

Murray 01X140MA

BOLT, Hex, 7/16-20 x 1-1/2

$5.49

$

In Stock, Qty 15

0

0140

Murray 021651ZMA

CAP, Pipe, 3/8

$7.49

$

Usually ships in 2-12 days

0

0160

Murray 06X104MA

SCREW, Hex Head, 5/16-18 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 092371MA

THROTTLE CONTROL

$37.99

$

Usually ships in 2-12 days

0

0180

Murray 17X170MA

WASHER, Flat

$

$

Not available

0190

Murray 26X201MA

SCREW, Self Tap #8 x 3/8

$4.49

$

In Stock, only 2 left!

0

0200

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

0210

Murray 26X277MA

CAPSCREW, 5/16-18 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0220

Murray 690439MA

PULLEY, Stack

$64.99

$

In Stock, Qty 5

0

0230

Murray 7091738SM

SCREW, 5/16-18 x 3/4

$4.99

$

In Stock, Qty 14

0

0500

Murray 094066MA

GUIDE, Belt

$14.99

$

In Stock, only 2 left!

0

0510

Murray 015X84MA

NUT, Hex Flange, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
