MT 155380 (2691198-00) - Yard King 38" Lawn Tractor, 15.5hp (2013) 38" Mower Deck - Housing, Arbors & Blades Group (1752612) Parts Diagram

38" Lawn Tractor, 15.5hp

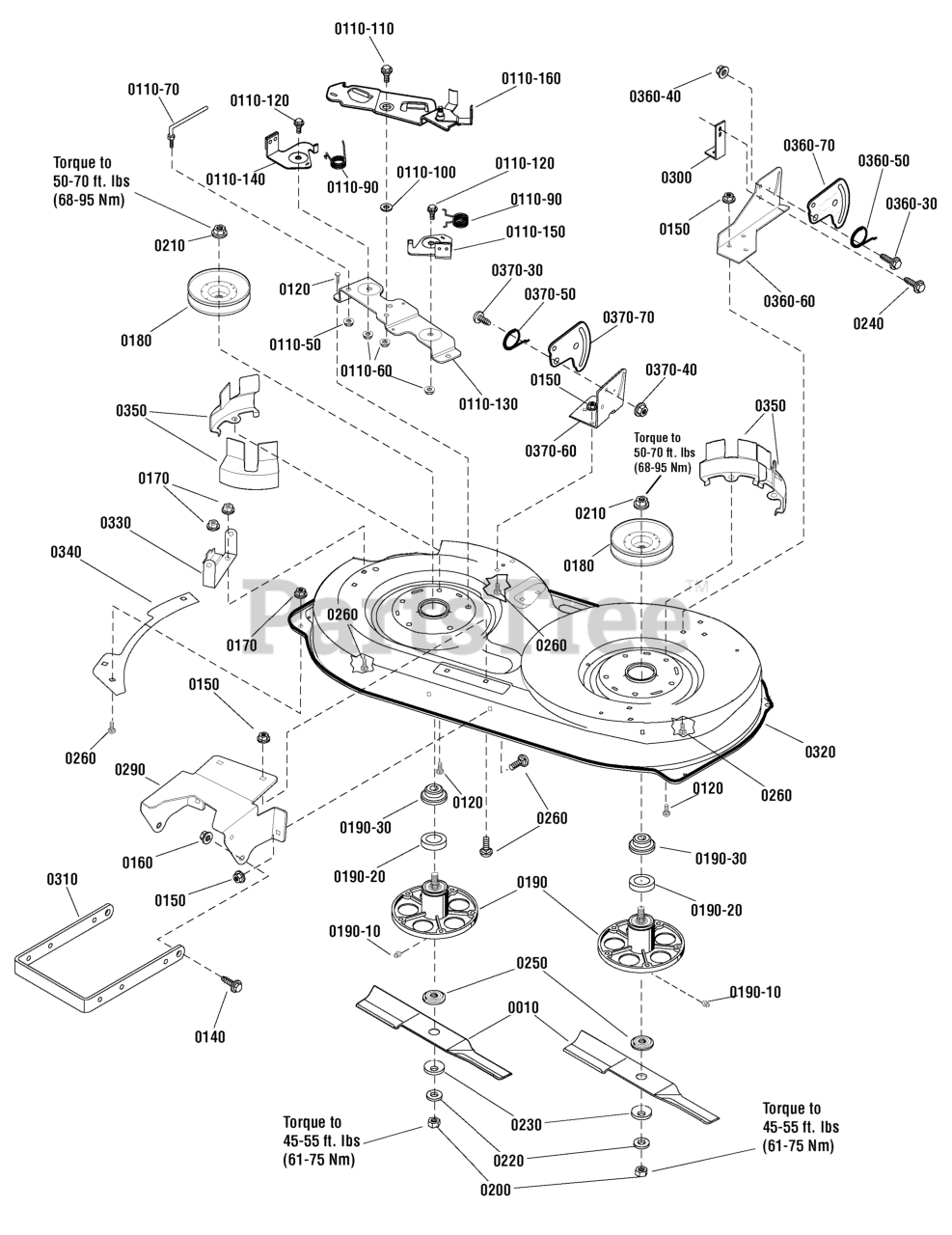

38" Mower Deck - Housing, Arbors & Blades Group (1752612) Parts Diagram

  • Title

0010

Murray 7101751AMA

BLADE, 38 in
(Superseded to 1001427E701MA)

$27.99

$

In Stock, only 2 left!

0

0110-50

Murray 015X79MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110-60

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0110-70

Murray 094781MA

BELT GUIDE (5/16-18)

$60.99

$

Usually ships in 2-12 days

0

0110-90

Murray 166X41MA

SPRING, Torsion Brake

$4.99

$

In Stock, only 2 left!

0

0110-100

Murray 17X174ZMA

WASHER, Flat

$6.49

$

Usually ships in 2-12 days

0

0110-110

Murray 009X72MA

BOLT, Shoulder

$

$

Not available

0110-120

Murray 009X42MA

BOLT, Shoulder, 3/8-16
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

0110-130

Murray 7300732BMYP

BRACKET, Brake Mounting, 38 in

$47.99

$

Usually ships in 2-12 days

0

0110-140

Murray 7400243BMYP

BRAKE ASSEMBLY, Right

$94.99

$

Usually ships in 2-12 days

0

0110-150

Murray 7400244BMYP

BRAKE ASSEMBLY, Left

$101.99

$

Usually ships in 2-12 days

0

0110-160

Murray 1001499MA

ASSEMBLY, Idler Arm, 38 in

$148.99

$

Usually ships in 2-12 days

0

0120

Murray 0025X7MA

BOLT, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0140

Murray 009X51MA

BOLT, Shoulder, 3/8-16 x 1

$4.99

$

In Stock, only 1 left!

0

0150

Murray 015X79MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0170

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 092852MA

PULLEY, Jackshaft

$31.99

$

In Stock, only 1 left!

0

0190

Murray 1001200MA

JACKSHAFT HOUSING

Note: (Includes Ref. No. 0190-10, 0190-20 & 0190-30)

$82.99

$

In Stock, only 3 left!

0

0190-10

Murray 092530MA

FITTING, Lubrication

$5.49

$

Usually ships in 2-12 days

0

0190-20

Murray 1705897SM

BALL BEARING, Jackshaft

$8.49

$

In Stock, Qty 20+

0

0190-30

Murray 1001197MA

SPACER, Pulley

$12.99

$

In Stock, only 2 left!

0

0200

Murray 15X100MA

NUT, Blade, 9/16-18

$3.99

$

In Stock, Qty 10

0

0210

Murray 15X140MA

NUT, Nylock Ring, Pulley 9/16-18

$9.99

$

In Stock, Qty 7

0

0220

Murray 17X165MA

WASHER, Hardened

$16.99

$

In Stock, only 4 left!

0

0230

Murray 17X166MA

WASHER, Belleville

$13.99

$

In Stock, Qty 18

0

0240

Murray 26X249MA

CAPSCREW, 5/16-18

$

$

Not available

0250

Murray 690411MA

BLADE ADAPTER

$

$

Not available

0260

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0290

Murray 7300734BMYP

BRACKET, Front Hanger

$38.99

$

Usually ships in 2-12 days

0

0300

Murray 7300766BMYP

BRACKET, Support

$23.99

$

Usually ships in 2-12 days

0

0310

Murray 7300767BMYP

BRACKET, Suspension Front

$33.99

$

Usually ships in 2-12 days

0

0320

Murray 7600086YP

HOUSING, Mower Deck, 38"

$

$

Not available

0330

Murray 7300812BMYP

BRACKET, Hinge

$47.99

$

Usually ships in 2-12 days

0

0340

Murray 7300834BMYP

PLATE

$16.99

$

Usually ships in 2-12 days

0

0350

Murray 7300859BMYP

BELT GUIDE

$31.99

$

In Stock, only 2 left!

0

0360-30

Murray 009X51MA

BOLT, Shoulder, 3/8-16 x 1

$4.99

$

In Stock, only 1 left!

0

0360-40

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0360-50

Murray 166X43MA

SPRING, Torsion, LH

$4.99

$

In Stock, only 2 left!

0

0360-60

Murray 7300735BMYP

BRACKET, Suspension, LH

$23.99

$

Usually ships in 2-12 days

0

0360-70

Murray 7300878BMYP

PLATE, Suspension

$15.99

$

Usually ships in 2-12 days

0

0370-30

Murray 009X51MA

BOLT, Shoulder, 3/8-16 x 1

$4.99

$

In Stock, only 1 left!

0

0370-40

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0370-50

Murray 166X42MA

SPRING, Torsion, RH

$4.99

$

In Stock, Qty 8

0

0370-60

Murray 7300738BMYP

BRACKET, Suspension, RH

$26.99

$

Usually ships in 2-12 days

0

0370-70

Murray 7300878BMYP

PLATE, Suspension

$15.99

$

Usually ships in 2-12 days

0
