MT 155380 (2691198-00) - Yard King 38" Lawn Tractor, 15.5hp (2013) 38" Mower Deck - Clutch & Support Group Parts Diagram

38" Lawn Tractor, 15.5hp

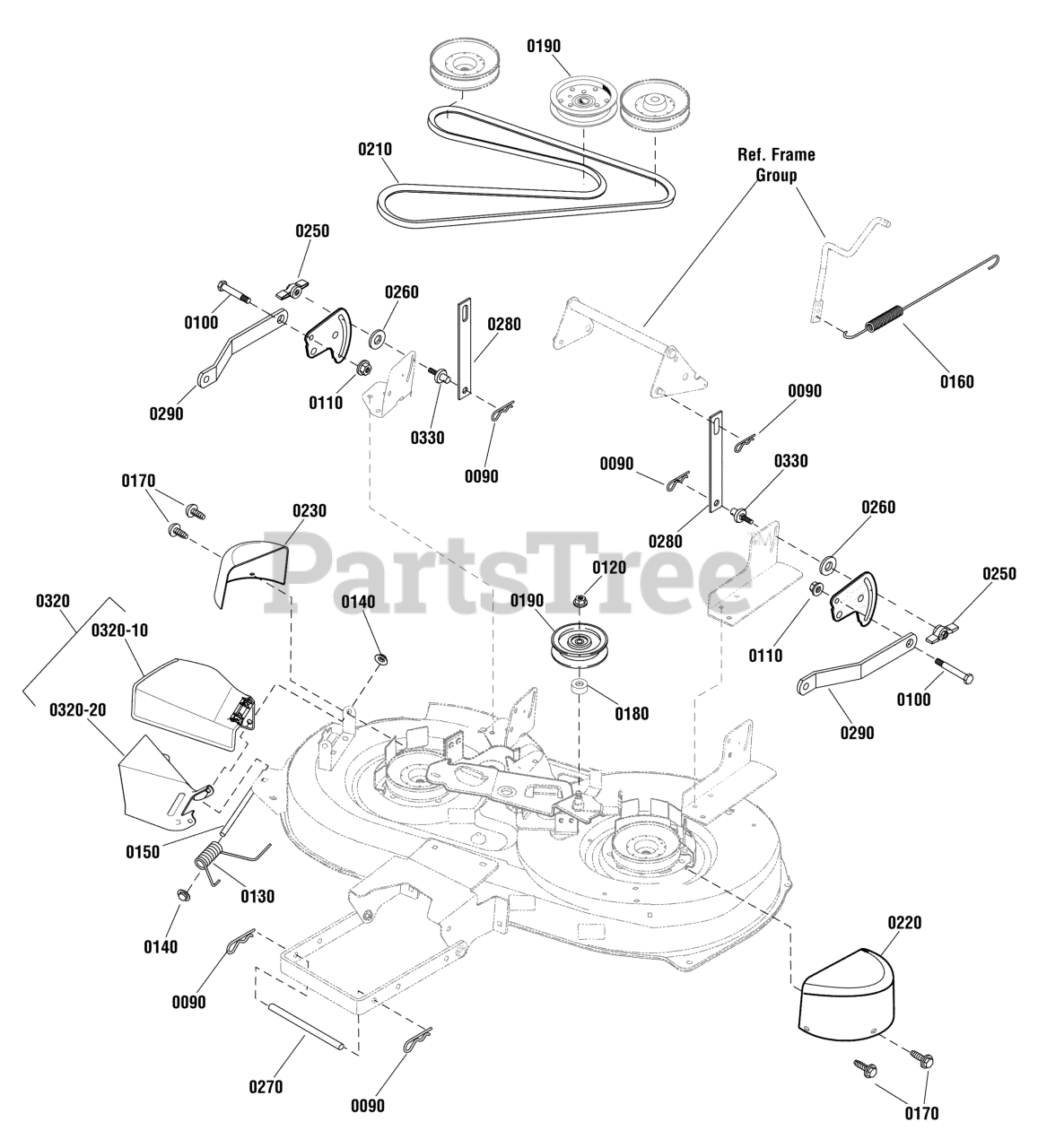

38" Mower Deck - Clutch & Support Group Parts Diagram

  • Title
0090

Murray 0031X4MA

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0100

Murray 009X52MA

BOLT, Shoulder, 3/8-16 x 1

$6.49

$

In Stock, only 2 left!

0

0110

Murray 015X84MA

NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0120

Murray 015X98MA

NUT Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0130

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

0140

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0160

Murray 165X118MA

SPRING, Extension

$10.99

$

Usually ships in 2-12 days

0

0170

Murray 26X263MA

SCREW, Hex 1/4 x 1/2

$4.99

$

In Stock, only 1 left!

0

0180

Murray 690369MA

SPACER, 1/2 in to 17 mm

$

$

Not available

0190

Murray 690387MA

PULLEY, Idler, 4"

$

$

Not available

0210

Murray 037X86MA

BELT, V Mower Drive, 38"

$43.99

$

Usually ships in 2-12 days

0

0220

Murray 7102700YP

COVER, Belt, Left

$14.99

$

Usually ships in 2-12 days

0

0230

Murray 7102701YP

COVER, Belt, Right

$14.99

$

Usually ships in 2-12 days

0

0250

Murray 094068MA

KNOB (5/16-18 nut enclosed)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0260

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 8

0

0270

Murray 094158ZMA

ROD HANGER

$28.99

$

Usually ships in 2-12 days

0

0280

Murray 7300749BMYP

LINK, Lift
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

0290

Murray 7300826BMYP

BRACKET, Rear Suspension

$15.99

$

Usually ships in 2-12 days

0

0320

Murray 094707MA

DEFLECTOR ASSEMBLY

$108.99

$

In Stock, only 3 left!

0

0320-10

Murray 094687MA

DEFLECTOR, Chute

$78.99

$

Usually ships in 2-12 days

0

0320-20

Murray 094686E701MA

SUPPORT, Deflector

$59.99

$

Usually ships in 2-12 days

0

0330

Murray 095194MA

PIN, Hanger

$20.99

$

In Stock, only 1 left!

0
