MT 145380 (2691226) - Murray 38" Lawn Tractor, 14.5hp (2014) Motion Drive Group - Gear Drive (7501096a) Parts Diagram

38" Lawn Tractor, 14.5hp

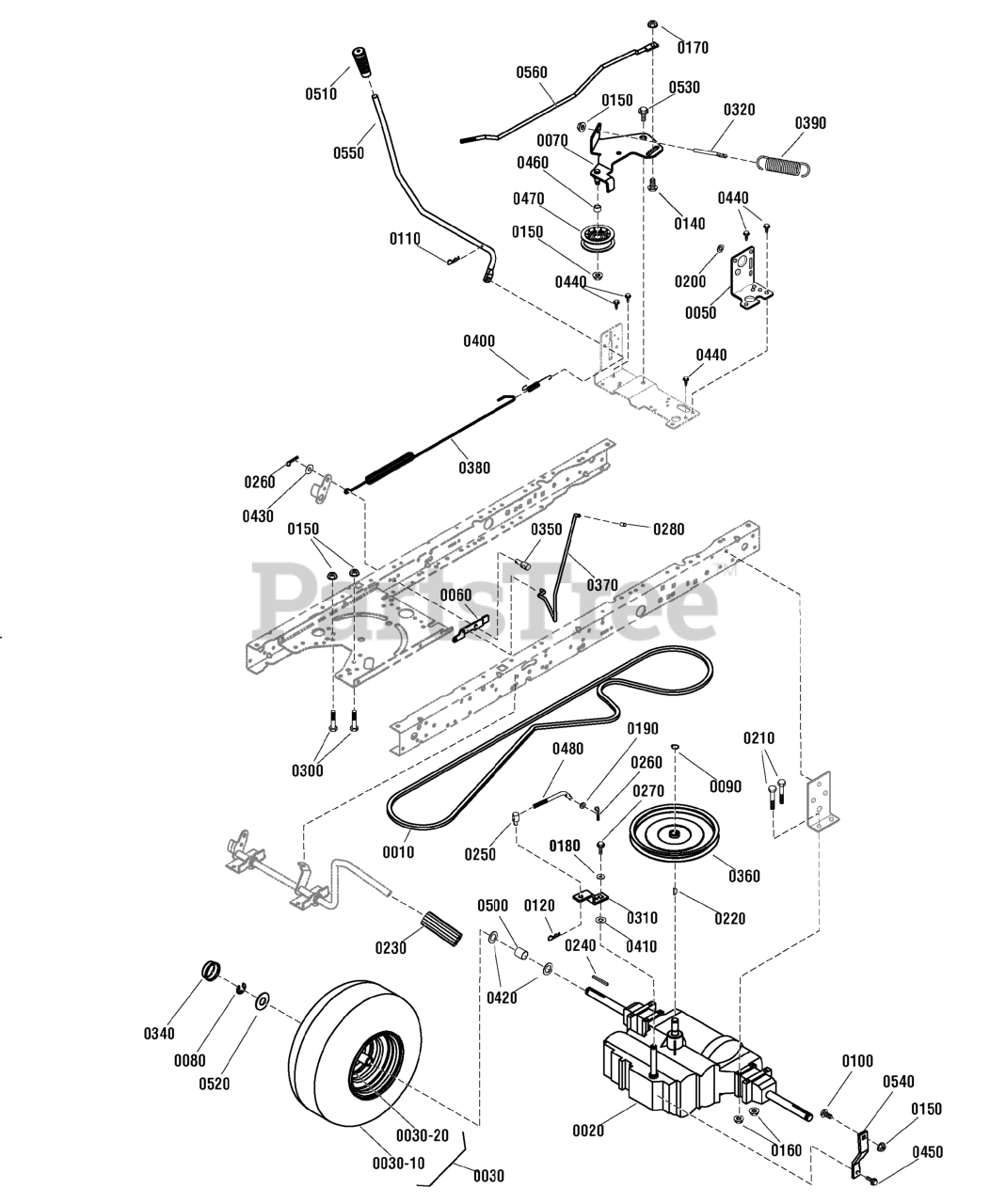

Motion Drive Group - Gear Drive (7501096a) Parts Diagram

  • Title
0010

Murray 7101749MA

BELT, V, Motion Drive
(Superseded to 037X87MA)

$28.99

$

In Stock, Qty 16

0

0020

Murray 7102571YP

TRANSAXLE, Dana 5-Speed

$512.99

$

Usually ships in 2-12 days

0

0030

Murray 7102668YP

WHEEL AND TIRE ASSEMBLY, 18 x 8.5-8

Note: (Includes Ref. Nos. 0030-10 & 0030-20)

$205.99

$

Usually ships in 2-12 days

0

0030-10

Murray 7102670YP

TIRE, 18 x 8.5 2 Ply K358

$125.99

$

Usually ships in 2-12 days

0

0030-20

Murray 7012234SM

VALVE STEM, TR 412

$6.49

$

Usually ships in 2-12 days

0

0050

Murray 7300927YP

BRACKET, Shift Pivot

$17.99

$

Usually ships in 2-12 days

0

0060

Murray 7300940YP

LATCH, Parking Brake

$7.99

$

Usually ships in 2-12 days

0

0070

Murray 7400241MA

STAKE, Idler Arm Assembly

$32.99

$

Usually ships in 2-12 days

0

0080

$10.99

$

Usually ships in 2-12 days

0

0090

Murray 0011X7MA

SNAP RING, .625D-.035T

$3.99

$

In Stock, only 4 left!

0

0100

Murray 002X53MA

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

0110

Murray 1960074SM

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0120

Murray 0031X6MA

HAIR PIN, .38D-.090T
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0140

Murray 009X54MA

BOLT, Shoulder, 1/4-20 x 3/8

$5.49

$

In Stock, only 1 left!

0

0150

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Murray 015X88MA

NUT, Hex Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0170

Murray 015X89MA

NUT, Hex Flange Lock, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 017X38MA

WASHER, Flat, 3/4

$3.99

$

Usually ships in 2-12 days

0

0190

Murray 017X47MA

WASHER, Flat, 5/8
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

0200

Murray 017X53MA

WASHER, Flat, 7/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0210

Murray 01X155MA

BOLT, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

0220

Murray 020697MA

KEY, Woodruff, #9

$3.99

$

Usually ships in 2-12 days

0

0230

Murray 021544MA

PEDAL, Clutch and Brake
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

0240

Murray 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0

0250

Murray 021920ZMA

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

0260

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0270

Murray 06X105MA

CAPSCREW, 1/4-28 x 3/4

$3.99

$

In Stock, only 1 left!

0

0280

$3.49

$

Usually ships in 2-12 days

0

0300

Murray 093349MA

SCREW, Guide

$4.49

$

Usually ships in 2-12 days

0

0310

Murray 094031ZMA

YOKE, Shift

$15.99

$

Usually ships in 2-12 days

0

0320

Murray 094042ZMA

STUD, Spring Mounting

$4.49

$

Usually ships in 2-12 days

0

0340

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0350

Murray 690273MA

NUT, Adjusting

$101.99

$

Usually ships in 2-12 days

0

0360

Murray 095094MA

PULLEY, Low Noise

$55.99

$

In Stock, only 1 left!

0

0370

Murray 1001245ZMA

ROD, Parking Brake

$33.99

$

Usually ships in 2-12 days

0

0380

Murray 165X115MA

SPRING, Extension

$21.99

$

Usually ships in 2-12 days

0

0390

Murray 165X116MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

0400

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

0410

Murray 17X148MA

WASHER, Flat, 1

$3.99

$

Usually ships in 2-12 days

0

0420

Murray 17X160MA

WASHER, Flat, 1-1/4

$4.99

$

In Stock, Qty 20+

0

0430

Murray 17X169MA

WASHER, Flat, 1
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0440

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

0450

Murray 26X267MA

SCREW, Self Tap 5/16-18 x 7/8

$4.99

$

In Stock, Qty 20+

0

0460

Murray 690369MA

SPACER, 1/2 in To 17 mm

$

$

Not available

0470

Murray 690409MA

PULLEY, Idler, 2-3/4 in

$19.99

$

In Stock, Qty 13

0

0480

Murray 95289MA

LINK, Shift

$13.99

$

Usually ships in 2-12 days

0

0500

Murray 0011X3MA

E-RING, .750D-.050T

$5.49

$

In Stock, Qty 17

0

0510

$5.99

$

Usually ships in 2-12 days

0

0520

Murray 17X195MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 5

0

0530

Murray 009X42MA

BOLT, Shoulder, 3/8-16 x 3/5
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

0540

Murray 7300845BMYP

STRAP, Torque Peerless, Left

$13.99

$

Usually ships in 2-12 days

0

0550

Murray 7103828YP

LEVER, Shifter

$34.99

$

Usually ships in 2-12 days

0

0560

Murray 094041ZMA

ROD, Clutch

$33.99

$

Usually ships in 2-12 days

0
