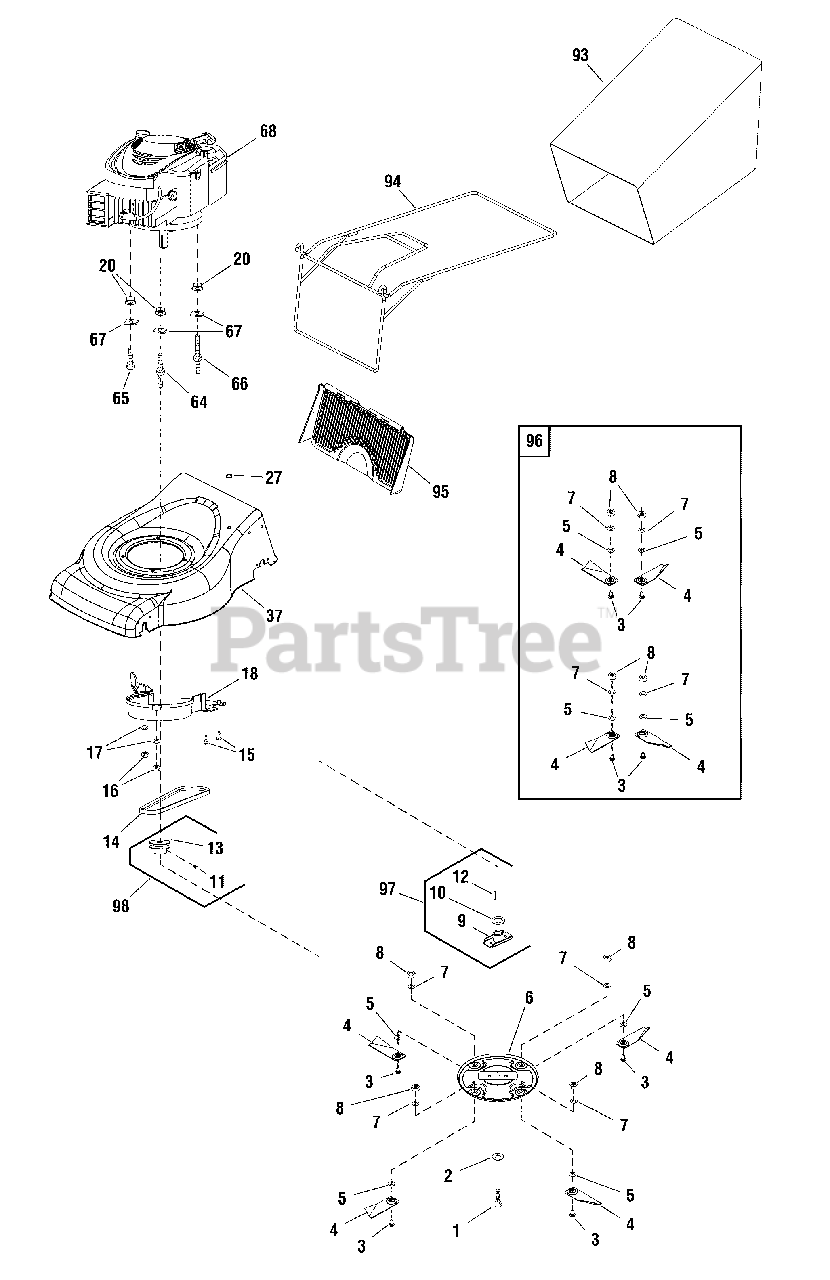

MSPD 20650 (866075-00) - Snapper 20" Walk-Behind Mower Deck & Engine Group Parts Diagram

20" Walk-Behind Mower

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 704480

BOLT, Blade

$5.49

$

Usually ships in 2-12 days

0

2

Snapper 704474

WASHER

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 704481

BOLT, Blade Disc

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 704619

BLADE

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 704483

WASHER, Blade Disc

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 704484

BLADE DISC

$67.99

$

Usually ships in 2-12 days

0

7

* WASHER, Flat

$

$

Not available

8

* NUT, Hex Lock

$

$

Not available

9

Snapper 704620

SUPPORT, Blade

$

$

Currently unavailable

10

Snapper 705830

SLEEVE, Blade Support

$

$

Currently unavailable

11

Snapper 704591

SET SCREW

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 705834

KEY

$

$

Currently unavailable

13

Snapper 704592

PULLEY

$13.99

$

Usually ships in 2-12 days

0

14

Snapper 704593

BELT

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 704594

SCREW

$

$

Currently unavailable

16

* NUT, Hex Lock

$

$

Not available

17

* WASHER, Flat

$

$

Not available

18

Snapper 704595

COVER, Belt

$51.99

$

Usually ships in 2-12 days

0

20

* NUT, Hex Lock

$

$

Not available

27

Snapper 704500

GROMMET

$

$

Currently unavailable

37

Snapper 704584

DECK

$341.99

$

Usually ships in 2-12 days

0

64

Snapper 705831

BOLT

$

$

Currently unavailable

65

* BOLT, Hex

$

$

Not available

67

Snapper 704561

WASHER, Square

$

$

Currently unavailable

66

Snapper 704614

BOLT

$

$

Currently unavailable

68

** ENGINE, Briggs & Stratton 650 Series

$

$

Not available

93

Snapper 704529

BAG, Grass

$67.99

$

Usually ships in 2-12 days

0

94

Snapper 704530

FRAME

$

$

Currently unavailable

95

Snapper 704531

COVER, Rear

$51.99

$

Usually ships in 2-12 days

0

96

Snapper 705911

KIT, Blade

Note: (Includes Ref. Nos. 3, 4, 5, 7 & 8)

$

$

Currently unavailable

97

Snapper 705912

KIT, Blade Adapter

Note: (Includes Ref. Nos. 9, 10 & 12)

$19.99

$

Usually ships in 2-12 days

0

98

Snapper 705913

KIT, Drive Adapter

Note: (Includes Ref. Nos. 11 & 13)

$11.99

$

Usually ships in 2-12 days

0
