MSP 21675 (866093-00) - Snapper 21" Walk-Behind Mower (2015) Handles Group Parts Diagram

21" Walk-Behind Mower

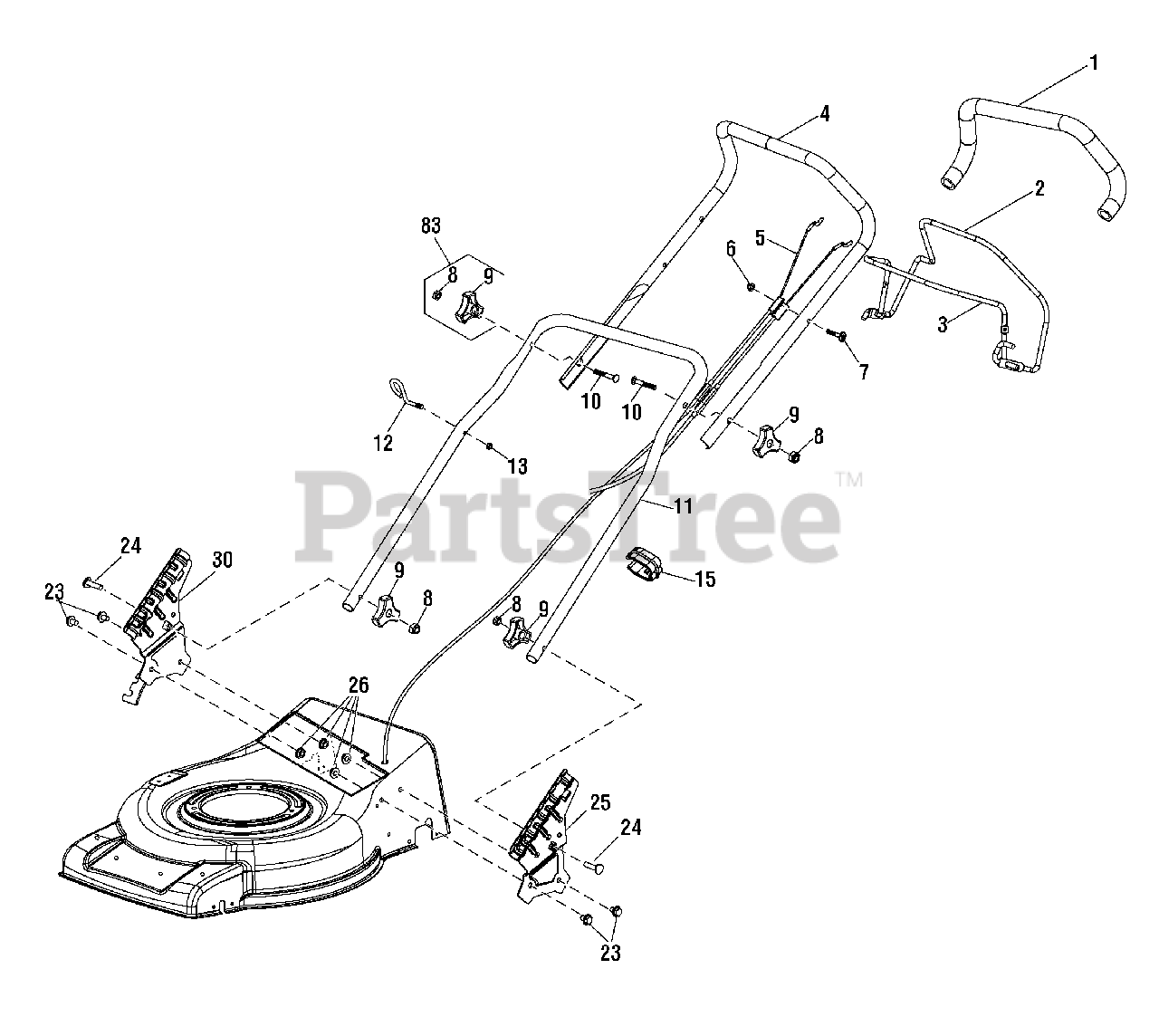

Handles Group Parts Diagram

  • Title

1

Snapper 707258

GRIP

$

$

Currently unavailable

2

Snapper 707341

LEVER, Self-propelled Control

$

$

Currently unavailable

3

Snapper 707259

LEVER, Blade Control

$

$

Currently unavailable

4

Snapper 707738

HANDLE, Upper

$

$

Currently unavailable

5

Snapper 707261

CABLE, Clutch

$

$

Currently unavailable

6

Snapper 707217

ACORN NUT, , M6

$3.49

$

In Stock, only 1 left!

0

7

Snapper 707262

BOLT, M6x35

$

$

Currently unavailable

8

Snapper 707205

NUT, M8

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 707212

KNOB

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 707323

BOLT, Step, M8 x 45

$3.49

$

In Stock, only 1 left!

0

11

Snapper 707264

HANDLE, Lower

$

$

Currently unavailable

12

Snapper 707218

GIUDE, Rope

$3.99

$

In Stock, only 2 left!

0

13

Snapper 707196

NUT, Self Lock, M6

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 707265

CLIP, Cable

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 707227

BOLT, Hex Flange, M8 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 707272

BOLT, Arc Head

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 707273

BRACKET, Handle, Left

$23.99

$

Usually ships in 2-12 days

0

26

Snapper 707274

NUT, Hex, Prevailing Torque Type, M8

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 707311

BRACKET, Handle, Right

$15.99

$

Usually ships in 2-12 days

0

83

Snapper 707419

HANDLE KNOB ASSEMBLY

Note: (Includes Ref. Nos. 8 & 9)

$4.99

$

Usually ships in 2-12 days

0
