MSP 21675 (866093-00) - Snapper 21" Walk-Behind Mower (2015) Deck & Engine Group Parts Diagram

21" Walk-Behind Mower

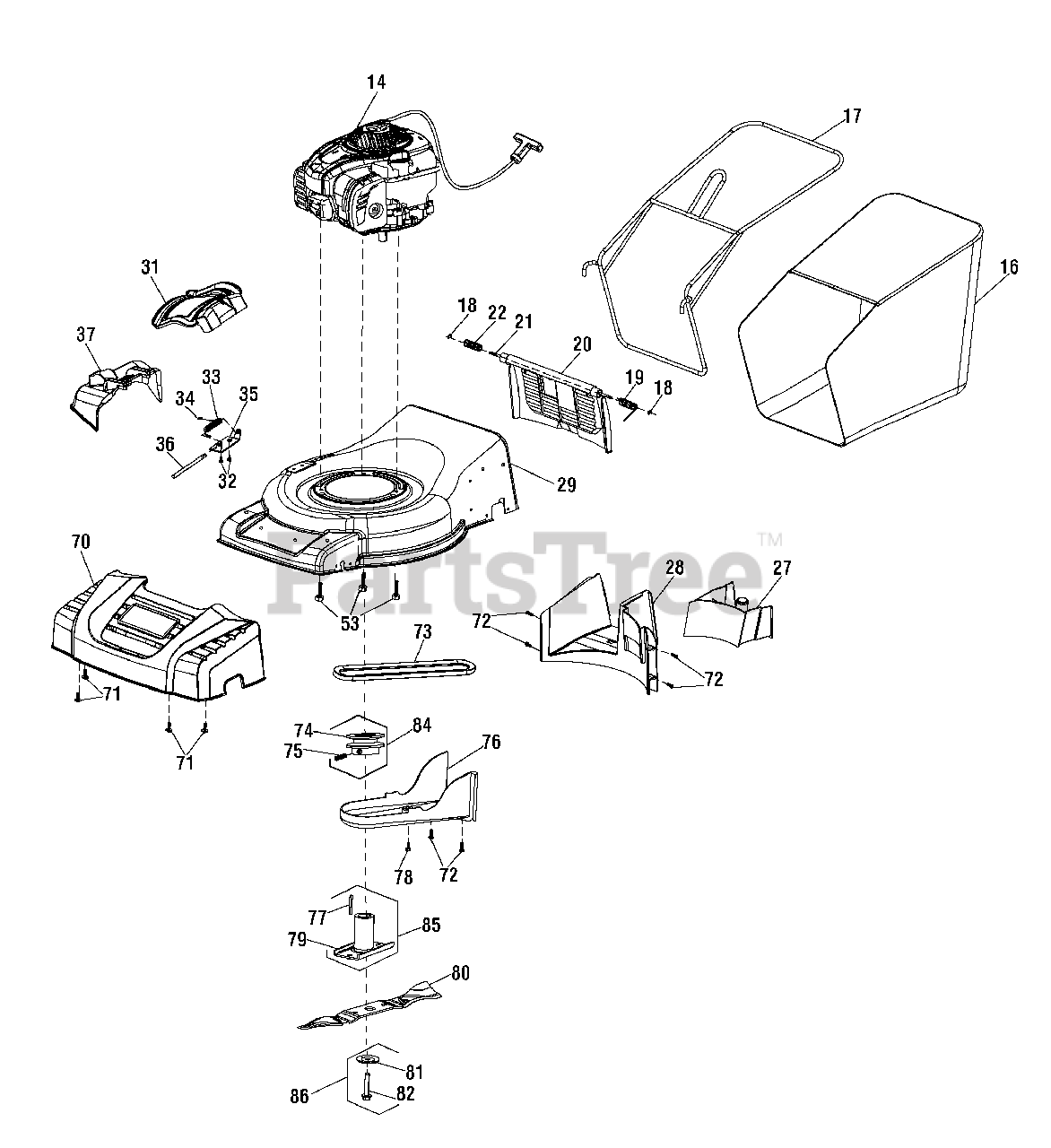

Deck & Engine Group Parts Diagram

  • Title

14

Snapper 103M02-0011-H1

* ENGINE, Briggs & Stratton 675EXI Series

$

$

Currently unavailable

16

Snapper 707266

BAG, Grass

$

$

Currently unavailable

17

Snapper 707267

FRAME, Grass Bag

$

$

Currently unavailable

18

Snapper 707233

CIRCLIP

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 707268

SPRING, Left

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 707269

REAR FLAP

$35.99

$

Usually ships in 2-12 days

0

21

Snapper 707270

ROD

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 707271

SPRING, Right

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 707275

MULCH PLUG

$

$

Currently unavailable

28

Snapper 707956

HOUSING, Rear

$61.99

$

Usually ships in 2-12 days

0

29

Snapper 707957

DECK

$

$

Currently unavailable

31

Snapper 707311

COVER, Side Discharge

$15.99

$

Usually ships in 2-12 days

0

32

Snapper 707317

BOLT, M6 x 10

$2.99

$

Usually ships in 2-12 days

0

33

Snapper 707313

SPRING, Torsion

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 707314

CAP, Spring

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 707315

BRACKET, Deflector

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 707316

ROD, Discharge Chute

$3.99

$

In Stock, only 1 left!

0

37

Snapper 707312

CHUTE, Side Discharge

$37.99

$

Usually ships in 2-12 days

0

53

Snapper 707204

BOLT, Self Tap

$3.99

$

Usually ships in 2-12 days

0

70

Snapper 707318

FRONT COVER

$54.99

$

Usually ships in 2-12 days

0

71

Snapper 707375

SCREW, With Washer, ST4.8 X 13

$2.99

$

Usually ships in 2-12 days

0

72

Snapper 707374

SCREW, With Washer, ST4.8 X 13

$2.99

$

Usually ships in 2-12 days

0

73

Snapper 707977

V BELT, With Teeth

$13.99

$

Usually ships in 2-12 days

0

74

Snapper 707979

MOUNT-VIBRATION

$11.99

$

Usually ships in 2-12 days

0

75

Snapper 707368

SCREW, Set, M6 x 10

$2.99

$

Usually ships in 2-12 days

0

76

Snapper 707978

COVER, Belt

$21.99

$

Usually ships in 2-12 days

0

77

Snapper 707292

KEY

$

$

Currently unavailable

78

Snapper 707577

BOLT, Hex Flange, Heavy Series M6 x 10

$2.99

$

Usually ships in 2-12 days

0

79

Snapper 707293

ADAPTER, Blade

$20.99

$

Usually ships in 2-12 days

0

80

Snapper 707294

BLADE

$23.99

$

Usually ships in 2-12 days

0

81

Snapper 707579

WASHER, Cone

$4.49

$

Usually ships in 2-12 days

0

82

Snapper 707736

BOLT, Blade, 3/8-24 UNF

$3.99

$

Usually ships in 2-12 days

0

84

Snapper 707428

KIT, Belt Pulley

Note: (Includes Ref. Nos. 74 & 75)

$9.49

$

Usually ships in 2-12 days

0

85

Snapper 707426

KIT, Blade Adapter

Note: (Includes Ref. Nos. 77 & 79)

$

$

Currently unavailable

86

Snapper 707427

KIT, Hardware, Blade Bolt

Note: (Includes Ref. Nos. 81 & 82)

$

$

Currently unavailable
