MSP 20650 (866074-00) - Snapper 20" Walk-Behind Mower Deck & Engine Group Parts Diagram

20" Walk-Behind Mower

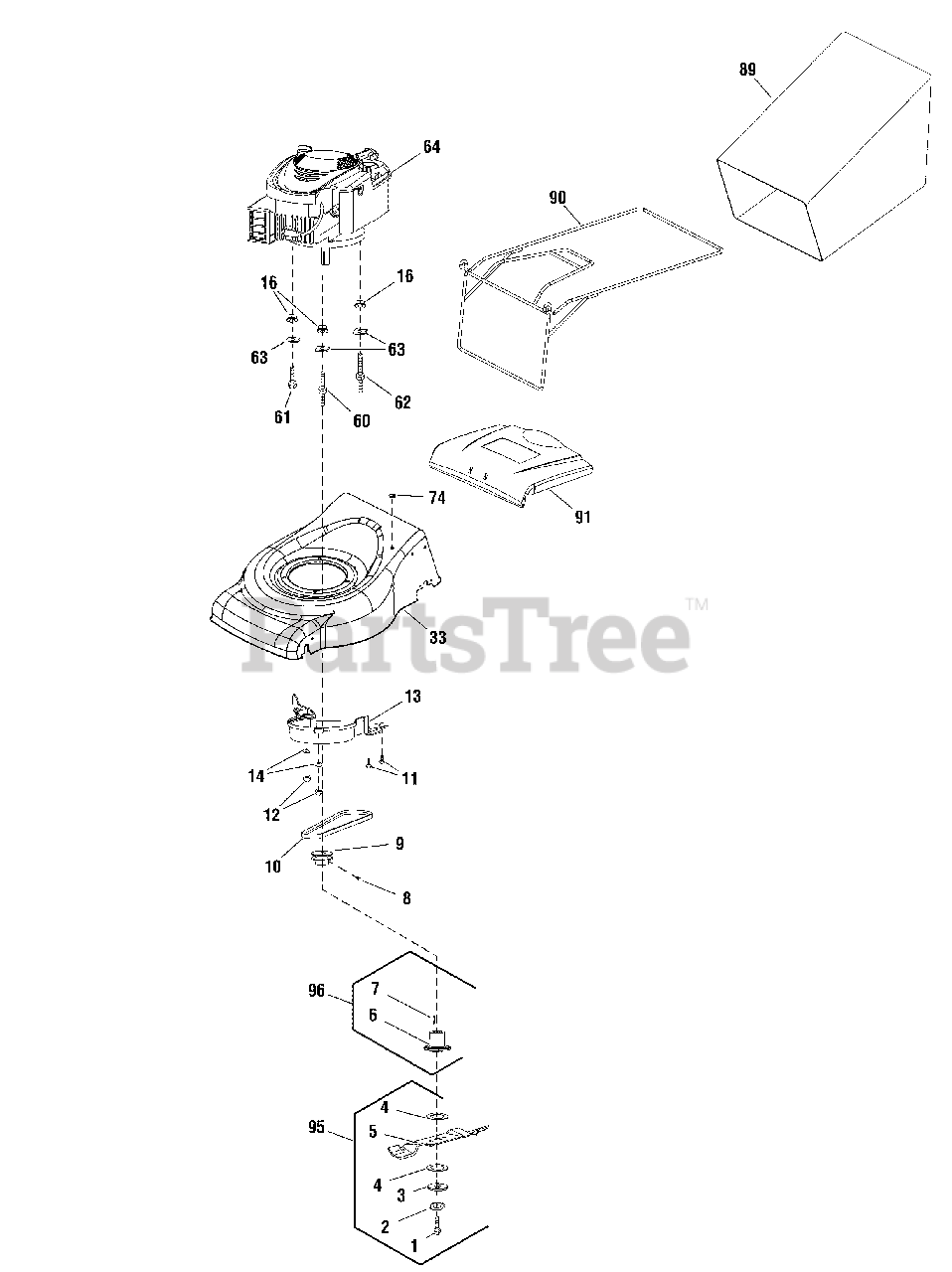

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 704473

BOLT, Blade

$4.99

$

Usually ships in 2-12 days

0

2

Snapper 704474

WASHER

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 704475

PLATE, Blade Support

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 704476

PLATE, Blade

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 704580

BLADE

$26.99

$

Usually ships in 2-12 days

0

6

Snapper 704535

SUPPORT, Blade

$17.99

$

Usually ships in 2-12 days

0

7

Snapper 704590

KEY

$

$

Currently unavailable

8

Snapper 704591

SET SCREW

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 704592

PULLEY

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 704593

BELT

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 704594

SCREW

$

$

Currently unavailable

12

* NUT, Hex Lock

$

$

Not available

13

Snapper 704595

COVER, Belt

$51.99

$

Usually ships in 2-12 days

0

14

* WASHER, Flat

$

$

Not available

16

* NUT, Hex Lock

$

$

Not available

33

Snapper 704584

DECK

$341.99

$

Usually ships in 2-12 days

0

60

Snapper 705831

BOLT

$

$

Currently unavailable

61

* BOLT, Hex

$

$

Not available

62

Snapper 704614

BOLT

$

$

Currently unavailable

63

Snapper 704561

WASHER, Square

$

$

Currently unavailable

64

** ENGINE, Briggs & Stratton 650 Series

$

$

Not available

74

Snapper 704500

GROMMET

$

$

Currently unavailable

89

Snapper 704529

BAG, Grass

$67.99

$

Usually ships in 2-12 days

0

90

Snapper 704530

FRAME

$

$

Currently unavailable

91

Snapper 704531

COVER, Rear

$51.99

$

Usually ships in 2-12 days

0

95

Snapper 705906

KIT, Blade

Note: (Includes Ref. Nos. 1, 2, 3, 4 & 5)

$37.99

$

Usually ships in 2-12 days

0

96

Snapper 705907

KIT, Blade Adapter

Note: (Includes Ref. Nos. 6 & 7)

$14.99

$

Usually ships in 2-12 days

0
