MSKABBC26 - Exmark 26" Commercial Walk-Behind Mower, Kawasaki, BBC (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram

26" Commercial Walk-Behind Mower, Kawasaki, BBC

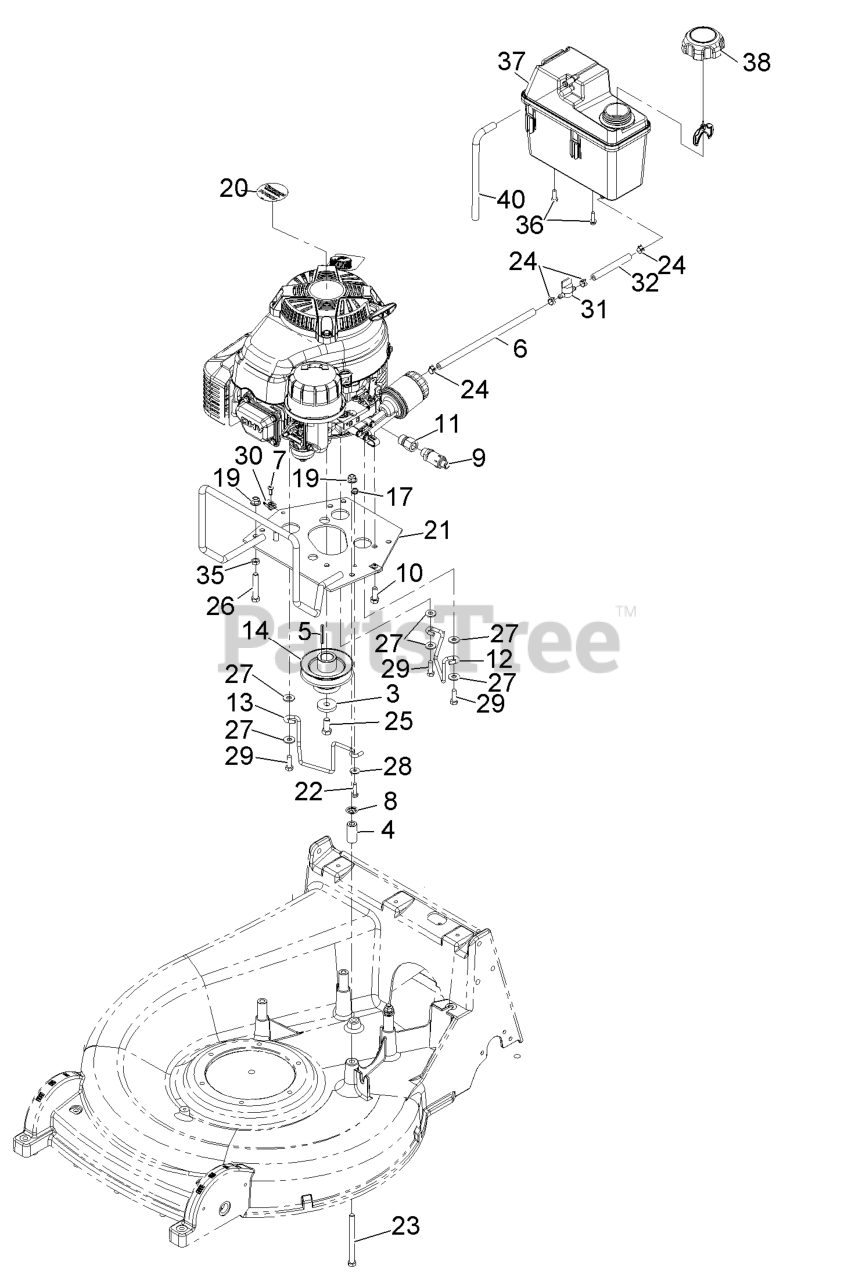

Engine Assembly Parts Diagram

  • Title

3

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 5

0

4

Exmark 116-1182

SPACER

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 7-0036

KEY-SQUARE

$

$

Not available

6

Exmark 109-0294

HOSE-FUEL

$6.99

$

In Stock, only 1 left!

0

7

Exmark 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

8

Exmark 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

9

Exmark 92-6877

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$41.99

$

In Stock, only 1 left!

0

10

Exmark 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

11

Exmark 103-1966

ADAPTER

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$18.99

$

In Stock, only 1 left!

0

12

Exmark 116-0860

GUIDE-BELT, REAR

$18.99

$

Usually ships in 3-6 days

0

13

Exmark 116-0859

GUIDE-BELT, FRONT

$25.99

$

Usually ships in 3-6 days

0

14

Exmark 116-0822

SHEAVE-DRIVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$117.99

$

Usually ships in 3-6 days

0

17

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 109-6528

DECAL

$6.49

$

In Stock, only 2 left!

0

21

Exmark 116-0972-03

PLATE-ENGINE

$

$

Not available

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

24

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3212-4

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, only 2 left!

0

26

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

27

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

29

Exmark 33114-025

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.99

$

In Stock, Qty 20+

0

30

Exmark 10706-9

Clip

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

32

Exmark 109-0295

HOSE-FUEL

$3.49

$

Usually ships in 3-6 days

0

35

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

36

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

37

Exmark 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

38

Exmark 109-6776

137-4127
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

40

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0
