MSKABBC26 - Exmark 26" Commercial Walk-Behind Mower, Kawasaki, BBC (SN: 312000000 - 312999999) (2012) Discharge Door and Bag Assembly Parts Diagram

26" Commercial Walk-Behind Mower, Kawasaki, BBC

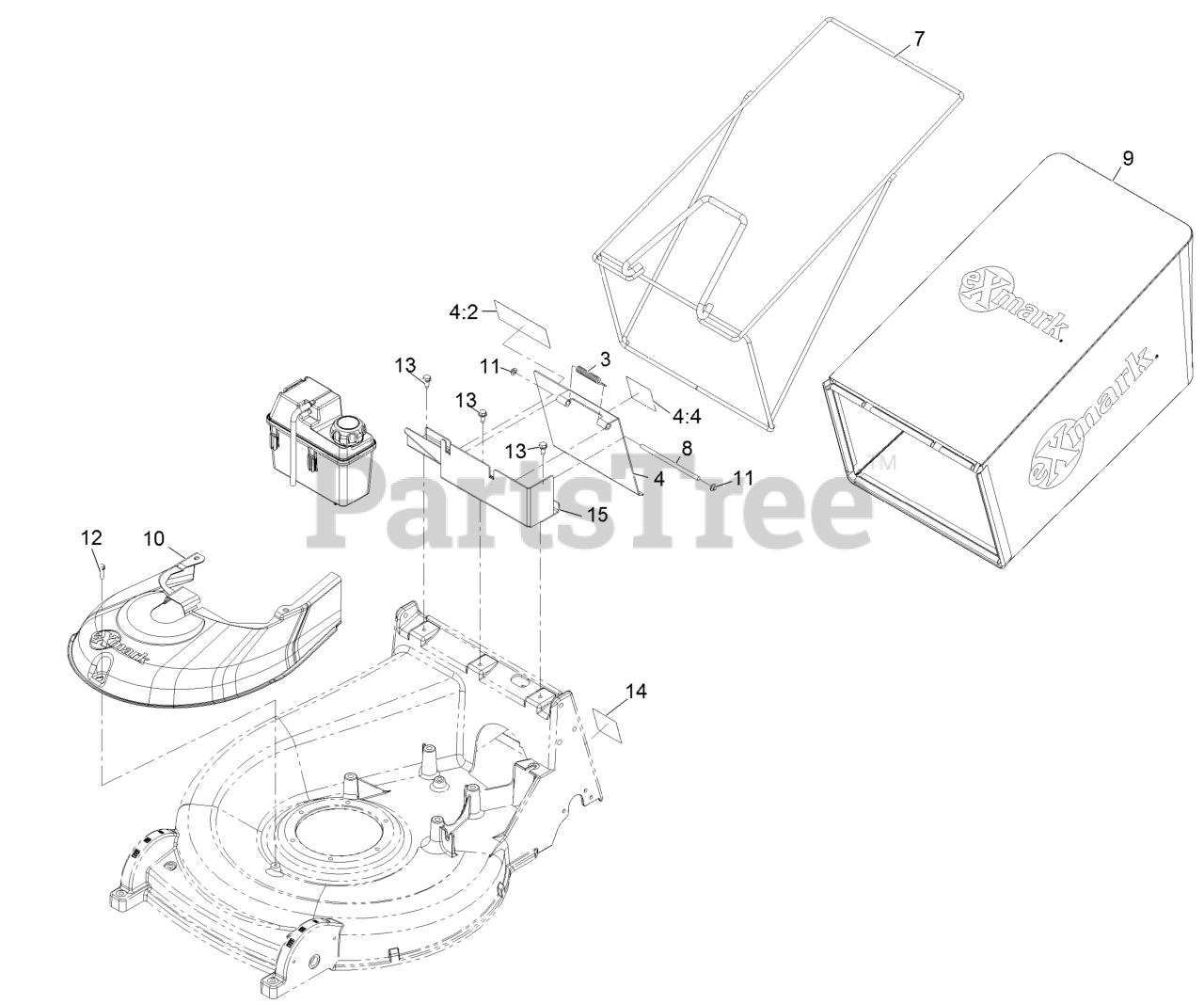

Discharge Door and Bag Assembly Parts Diagram

  • Title

3

Exmark 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

4

Exmark 109-0072

ASM,DOOR W/DECALS METRO 2

$99.99

$

Usually ships in 3-6 days

0

4:2

Exmark 104-8585

DECAL-WARNING

$

$

Not available

4:4

Exmark 121-1449

DECAL-WARNING, BLOCK

$5.49

$

In Stock, only 1 left!

0

7

Exmark 109-2445-03

FRAME-BAG

$125.99

$

In Stock, only 1 left!

0

8

Exmark 109-2453

ROD-PIVOT, DOOR

$9.99

$

Usually ships in 3-6 days

0

9

Exmark 109-2644

BAG,METRO 26 3.0 BU

$203.99

$

In Stock, only 3 left!

0

10

Exmark 109-2645

COVER,SPINDLE

$40.99

$

Usually ships in 3-6 days

0

11

Exmark 32112-11

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 4 left!

0

12

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

14

Exmark 109-3756

DECAL,SERVICE M26

$

$

Not available

15

Exmark 109-9701-03

BRACKET,DOOR/TANK MOUNT

$

$

Not available
