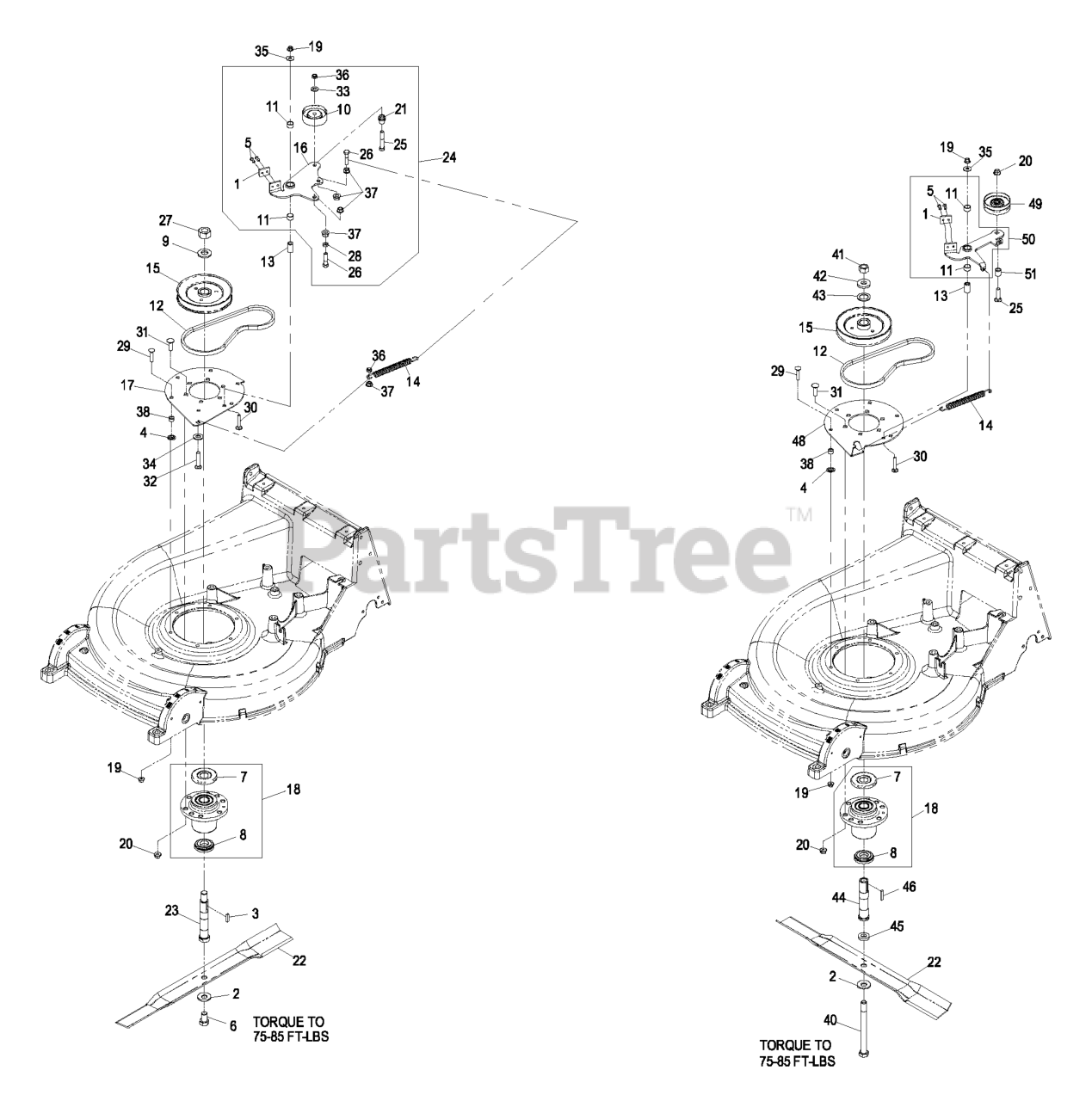

MSKA26B - Exmark 26" Commercial Walk-Behind Mower, Kawasaki (SN: 600000 - 669999) (2006) Blade & Spindle Assembly Parts Diagram

26" Commercial Walk-Behind Mower, Kawasaki

Blade & Spindle Assembly Parts Diagram

  • Title

1

Exmark 1-323709

PAD-BRAKE

$28.99

$

In Stock, only 3 left!

0

2

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

3

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 14

0

4

Exmark 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

5

Exmark 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 18

0

6

Exmark 103-1026

SCREW-CAP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz Packet)(or a food-grade anti-seize) between the spindle & screw,spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use copper or nickel based anti-seize.

$5.49

$

In Stock, Qty 13

0

7

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz Packet)(or a food-grade anti-seize) between the spindle & screw,spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!

0

8

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

9

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 15

0

10

Exmark 109-3546

PULLEY-IDLER

$66.99

$

Usually ships in 3-6 days

0

11

Exmark 103-6111

BEARING

$7.99

$

In Stock, Qty 6

0

12

Exmark 103-6115

116-0861
(Superseded to 116-0861-SL)

$35.99

$

In Stock, only 1 left!

0

13

Exmark 103-7108

BUSHING-ARM, IDLER

$26.99

$

Usually ships in 3-6 days

0

14

Exmark 103-7896

SPRING-BRAKE

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 103-7907

SHEAVE-SPINDLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz Packet)(or a food-grade anti-seize) between the spindle & screw,spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use copper or nickel based anti-seize.

$47.99

$

Usually ships in 3-6 days

0

16

Exmark 103-8217-03

ARM-IDLER

$96.99

$

Usually ships in 3-6 days

0

17

Exmark 103-8219-03

PLATE-ADAPTER, HOUSING

$

$

Not available

18

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0

19

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 109-0343

BLADE

$52.99

$

In Stock, Qty 10

0

Exmark 103-6422

BLADE, METRO 26

Note: Requires installation of mulch kit for proper mulching.mulch kit P/N MK26.

$33.99

$

In Stock, only 1 left!

0

23

Exmark 109-2650

SHAFT-SPINDLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz Packet)(or a food-grade anti-seize) between the spindle & screw,spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use copper or nickel based anti-seize.

$107.99

$

Usually ships in 3-6 days

0

24

Exmark 109-2836

ASM,IDLER ARM

$277.99

$

Usually ships in 3-6 days

0

25

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

28

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

29

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

30

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, only 3 left!

0

31

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

32

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

33

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

36

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

37

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

39

Exmark 109-3559

ASM,CUTTER HOUSING COMPLE

Note: Complete cutter housing assembly (SN 600,000 & Higher) contains items #2,#3,#6,#9,#15,#18,#23 & #27.

$

$

Not available

40

Exmark 103-7901

SCREW-HH YZ

$25.99

$

Usually ships in 3-6 days

0

41

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

42

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz Packet) (or a food-grade anti-seize) between the spindle & screw,spindle & bearings and spindle & sheave and under top bearing guard. DO NOT use copper or nickel based anti-seize.

$88.99

$

In Stock, only 2 left!

0

45

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

46

Exmark 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

47

Exmark 109-0555

ASM,CUTTER HOUSING COMPLE

Note: Complete cutter housing assembly (SN 590,000-591,454) contains items #2,#15,#18,#40,#41,#42,#43,#44,#45 & #46.

$

$

Not available

48

Exmark 103-7106-03

PLATE,CUTTER HOUSING

$

$

Not available

49

Exmark 103-6104

116-6361
(Superseded to 116-6361)

$59.99

$

In Stock, only 2 left!

0

50

Exmark 109-0560

DISCONTINUED

$

$

Not available

51

Exmark 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0

Exmark MK26

KIT, MULCH METRO 26

$172.99

$

Usually ships in 3-6 days

0
